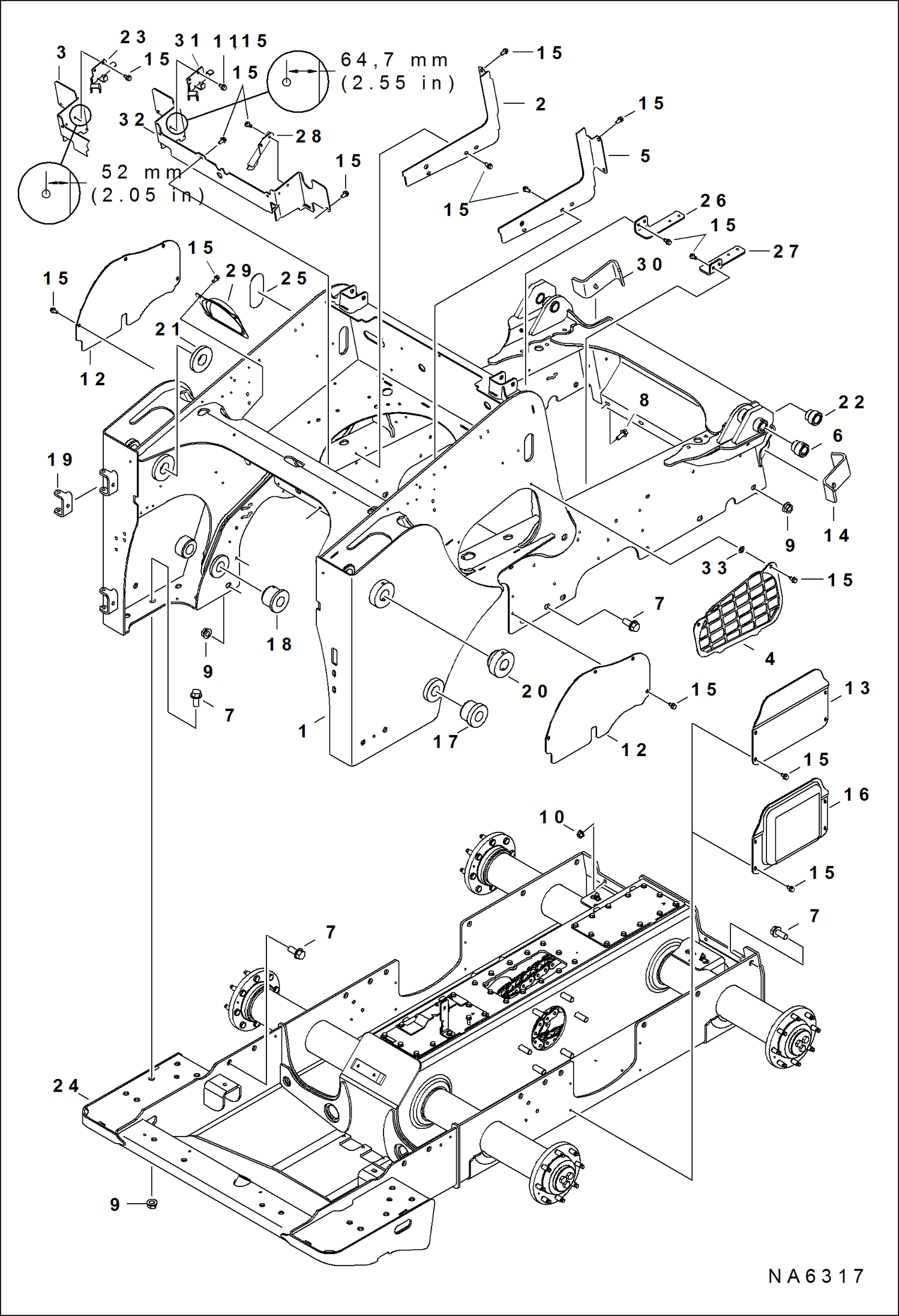

Запчасти Bobcat S-Series MAIN FRAME (S/N A3P213445 & Above) MAIN FRAME

1

7193370

MAIN FRAME

1

7211868

MAIN FRAME

2

7200099

DUCT, AIR LH

3

CROSSMEMBER NLA - Use W/Ref. 23 - See dimension on illustration - Order Ref. 31 & 32 - Was 7209535 - A

4

7186009

LOUVER, PLASTIC RH

4

7186010

LOUVER, PLASTIC LH

5

7200100

DUCT, AIR RH

6

7162141

BUSHING, WELD-ON outside link

7

31C1228

BOLT

8

31C820

BOLT

9

53D12

NUT

10

83D8

NUT 5

11

84G3708

SCREW

12

7178452

COVER

13

7136973

COVER

14

7155692

GUIDE RH - weld-on

15

84G3712

BOLT 5

15

84G3712

BOLT 5

16

7139459

COVER 2 speed

17

7141675

BUSHING, WELD-ON outside upright

18

7141674

BUSHING, WELD-ON inside upright

18

7211897

BUSHING, WELD-ON inside upright

19

6708987

HINGE, WELD-ON

20

7134830

BUSHING, WELD-ON outside upright

21

7134831

BUSHING, WELD-ON inside upright

22

6717278

BUSHING, WELD-ON inside link

23

GUIDE, HOSE NLA - Use W/Ref. 3 - See dimension on illustration - Order Ref. 31 & 32 - Was 7200553 - A

24

CHAINCASE See Illustration DRIVE TRAIN/ NA1008

24

CHAINCASE See Illustration DRIVE TRAIN/ NA6968

25

7194975

GAUGE, SIGHT self adhesive

26

7202799

BRACKET, SUPPORT LH

27

7202800

BRACKET, SUPPORT RH

28

7210851

BRACKET

29

7215602

COVER, FILTER PARTICULATE

30

7155693

GUIDE LH - weld-on

31

7218782

GUIDE, HOSE Use W/Ref. 32 - See dimension on illustration

32

7218781

CROSSMEMBER Use W/Ref. 31 - See dimension on illustration

33

6674264

RETAINER NUT

34

31C1228

BOLT

34

31C1236

BOLT
