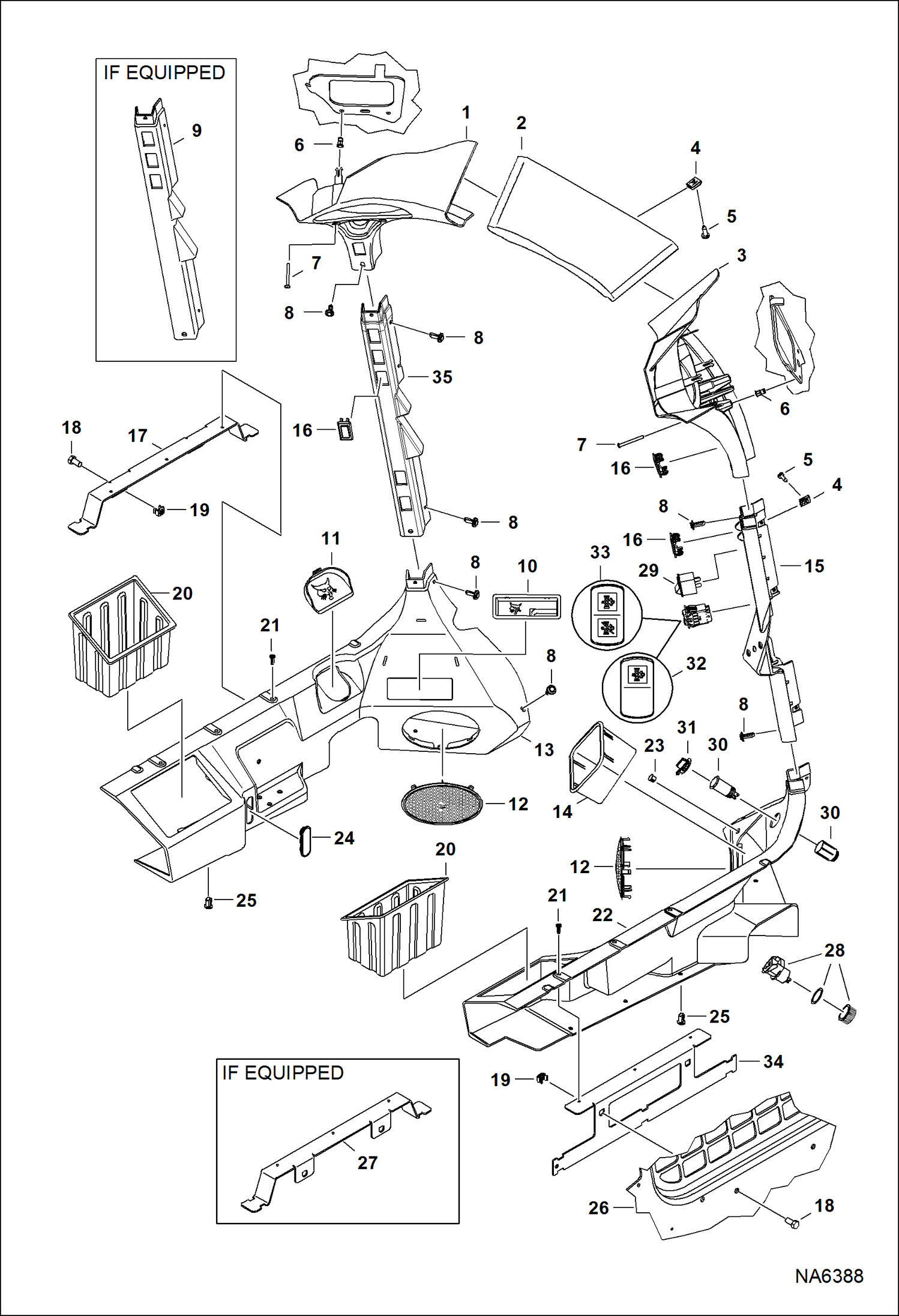

Запчасти Bobcat S-Series OPERATOR CAB (Cab Interior) (Deluxe) MAIN FRAME

1

7155792

PANEL, LH

2

7223412

PANEL, DASH Was 7155788 - A

3

7155791

PANEL, RH

4

7142762

CLIP

5

6669224

BOLT

6

6675033

INSERT

7

7165799

SCREW

8

7160382

RIVET, BIRD CAGE

9

7164348

COLUMN, FRONT LEFT

10

7165344

STORAGE

11

7165345

DOOR, COVER

12

7161939

GRILL

13

7155643

FENDER, PANEL L.H.

14

7154285

BOX, STORAGE

15

7206486

COLUMN, FRONT RIGHT

16

6665314

PLUG

17

7116118

BRACKET

18

17C612

BOLT 5

19

7149204

NUT

20

7145268

CONTAINER, STORAGE

21

7160381

RIVET, BIRD CAGE

22

7155642

FENDER, PANEL RH

23

7182942

PLUG

24

7165346

DOOR, COVER

25

7160383

RIVET, BIRD CAGE

26

CAB ASSY See Illustration OPERATOR CAB/ NA1122

27

7127976

BRACKET

28

7001664

PLUG, POWER W/hinged cover

28

WASHER NSS

28

NUT NSS - plastic

29

6668742

SWITCH EMEA

30

6664223

OUTLET

31

6664224

CAP

32

7024090

SWITCH, ROCKER DPF

33

7019298

SWITCH, ROCKER See Illustration DPF INHIBIT SWITCH KIT/ NA6583 - DPF inhibit - if equipped
