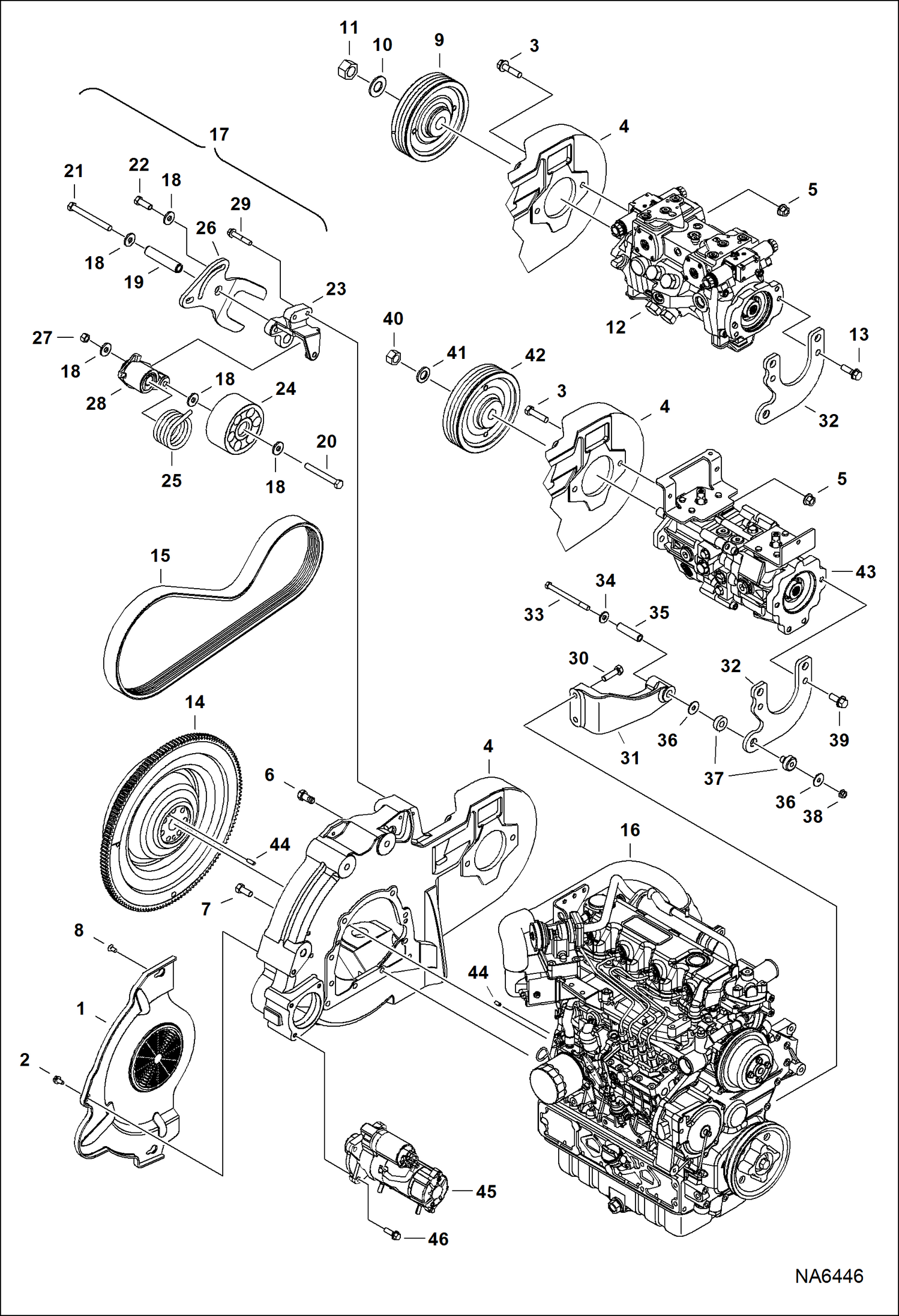

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Belt Drive) (S/N A3P213445 & Above) POWER UNIT

1

7167651

SHIELD, BELT

2

59CM816

BOLT

3

31C832

BOLT

4

7204291

MOUNT, ENG/PUMP

5

83D8

NUT 5

6

6730894

BOLT

7

6719828

BOLT

8

7155238

BOLT

9

7139655

PULLEY, PUMP HYD SJC

10

6805550

WASHER

11

96D16

NUT

12

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

13

7131273

SCREW

14

7140925

FLYWHEEL, ENG ASSY W/ring gear

14

6665222

GEAR, RING STARTER

15

7197894

BELT, DRIVE

16

6692835

ENG, V3800DIT 85 HP EPA T3 / EU STG IIIA See Illustration ENGINE & GASKET KITS/ NA5149

17

7141788

IDLER ASSY Ref. 18-28

18

7152658

WASHER

19

7152605

SLEEVE

20

7CM12100

BOLT

21

55CM12120

BOLT

22

55CM1235

BOLT

23

7131211

MOUNT

24

7167165

WHEEL, TENSIONER

25

7145358

SPRING

26

7174407

ARM, IDLER

27

53DM12

NUT

28

7167164

ARM, TENSIONER

29

49C636

BOLT

30

7135124

SCREW

31

7196558

MOUNT, PUMP

32

7193687

BRACKET, MOUNTING

33

17C680

BOLT

34

27E6

WASHER 5

35

7147350

SPACER, TUBE

36

6737388

WASHER

37

7149357

MOUNT, LOAD ISOLATOR

38

83D6

NUT 5

39

45C828

BOLT Was 45C824 - B

40

96D12

NUT

41

6576033

WASHER

42

7141909

PULLEY, PUMP HYD manual contols, AHC & ACS

43

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC & ACS

44

23JM0820

PIN

45

STARTER See Illustration STARTER/ B16488R

46

45C620

BOLT
