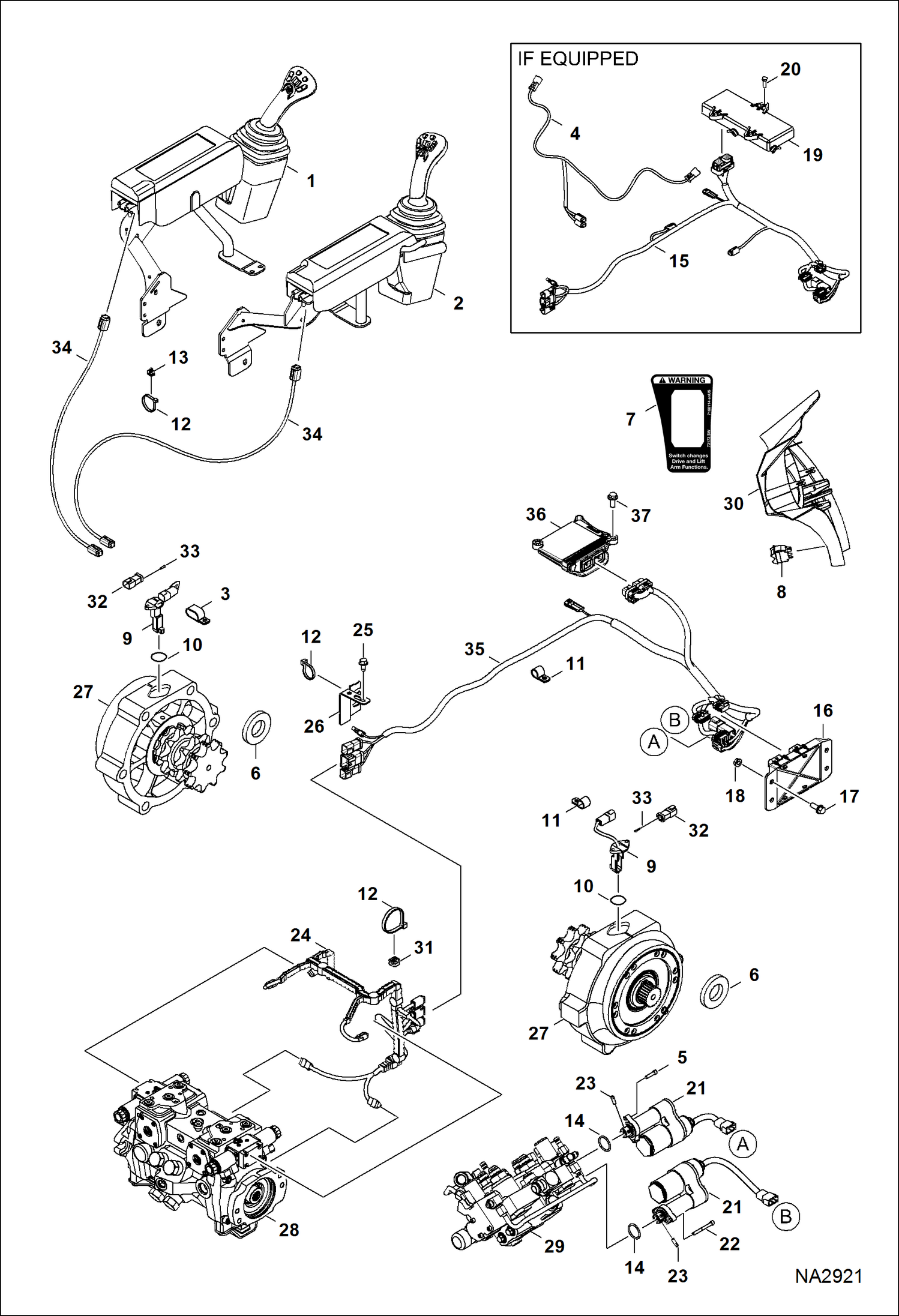

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) ELECTRICAL SYSTEM

1

JOYSTICK, SJC LH See Illustration CONTROLS ELECTRICAL/ NA2977

2

JOYSTICK, SJC RH See Illustration CONTROLS ELECTRICAL/ NA2977

3

31H38

CLAMP

4

7163706

HARNESS, JOYSTICK

5

29G416

BOLT

6

6680055

MAGNET

7

7168114

DECAL, SWITCH

8

7001710

SWITCH, ISO

9

SENSOR, SPEED TRAVEL See BTI419 - NLA - Was 6677181 - A

10

25K20100

O RING 10

11

30H42

CLAMP

12

6690690

STRAP, TIE

13

6690689

MOUNT, FIR TREE

14

58K120

O-RING

15

HARNESS, SJC See BTI419 - NLA - W/Speed sensor connectors - Was 7159325 - A

15

7210503

HARNESS, SJC W/O speed sensor connectors

16

6680410

CONTROLLER plastic - W/ 3-connector plug

17

31C616

SCREW

18

97D6

NUT 10

19

6679485

CONTROLLER SJC

20

43C616

BOLT

21

7101672

ACTUATOR W/Ref. 14

22

69G436

BOLT

23

7108236

PIN

24

7188448

HARNESS, PUMP

25

84G3712

BOLT 5

26

7122359

BRACKET

27

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA1007

28

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309

29

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217

30

PANEL, RH See Illustration OPERATOR CAB/ NA1161

31

6690688

TREE MOUNT

32

6691419

CONNECTOR, ELECTRICAL

33

6665370

PLUG
