EUROPEAN ACCESSORIES (Steering Damper Option)

Запчасти Bobcat S-Series EUROPEAN ACCESSORIES (Steering Damper Option) ACCESSORIES & OPTIONS

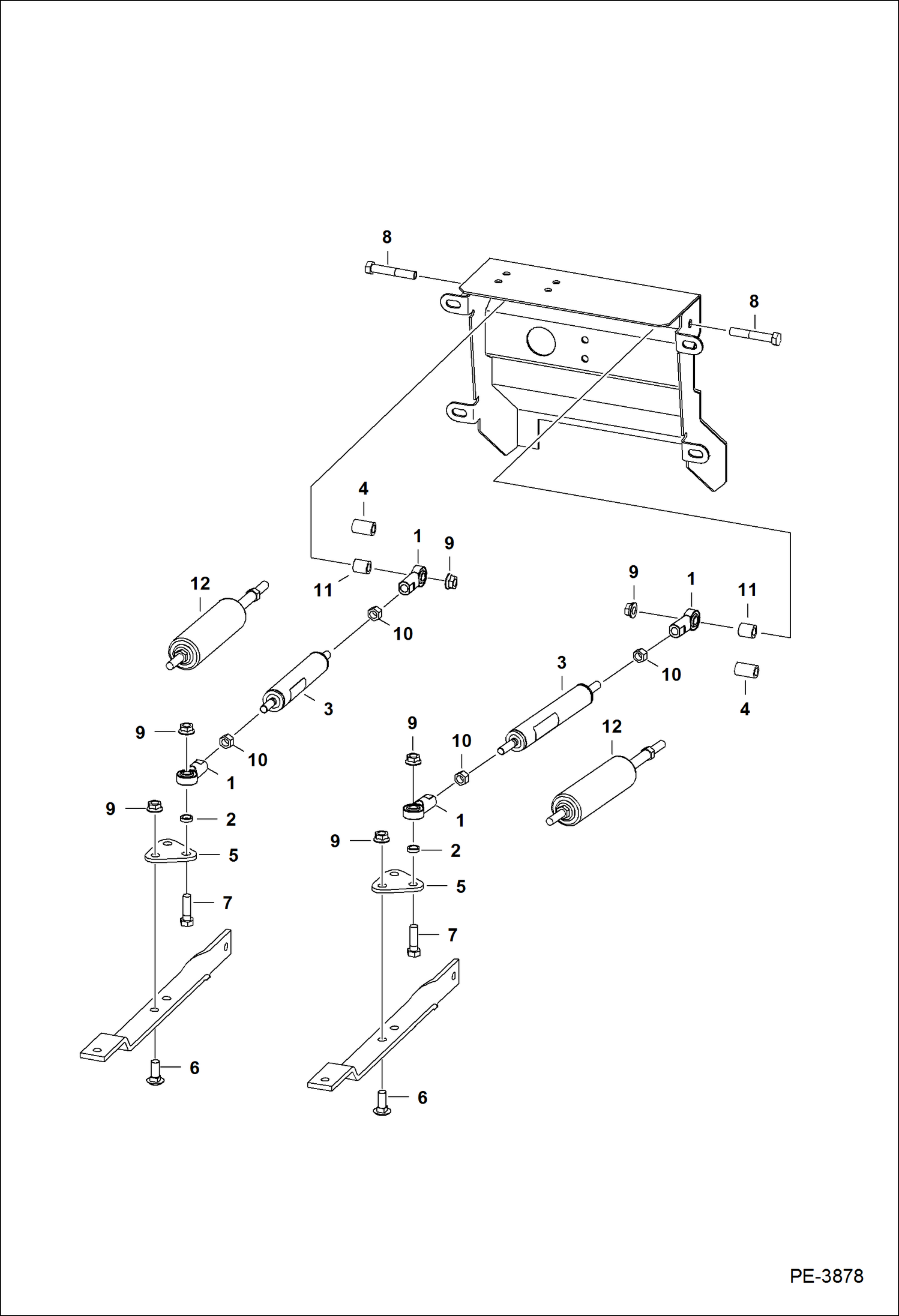

Схема запчастей Bobcat S-Series - EUROPEAN ACCESSORIES (Steering Damper Option) ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6512954

ROD END

2

6564535

SPACER

3

GAS SPRING NLA - Japan Option - Order Ref. 12 - Was 6649551

4

6708314

BUSHING, SPACER

5

6709396

MOUNT

6

10C616

BOLT 10

7

17C620

BOLT

8

17C636

BOLT

9

57D6

NUT 5

10

62D6

NUT 5

11

BUSHING

12

7188108

GAS SPRING
