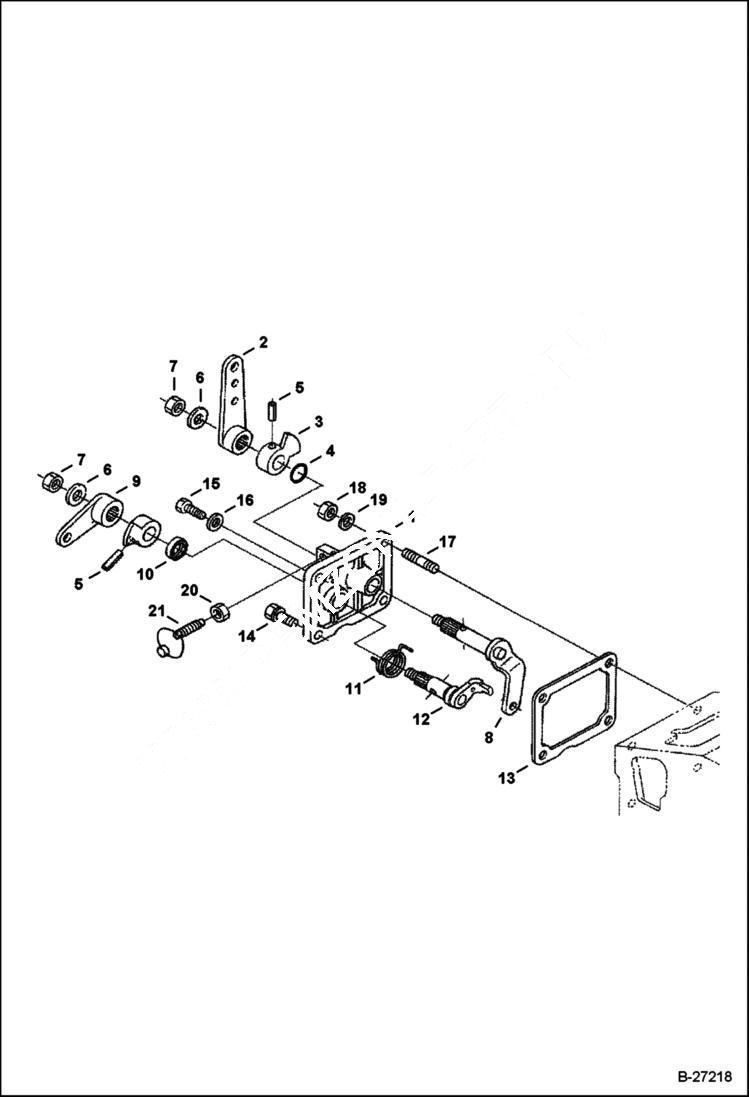

Запчасти Bobcat S-Series SPEED CONTROL PLATE POWER UNIT

1

6680501

PLATE ASSY W/Ref. 2-12

2

6657655

LEVER

3

6657577

LEVER

4

6680277

O-RING

5

6598098

PIN

6

6657596

WASHER

7

6657592

NUT

8

6657649

LEVER ASSY

9

6657656

LEVER

10

6598703

SEAL

11

6657474

SPRING

12

6657657

SHAFT

13

6657578

GASKET

14

1CM616

SCREW Was 4CM616 - A

15

4CM618

BOLT

16

3974972

GASKET

17

6680264

STUD

18

1DM6

NUT

18

6670533

NUT Was 6969818 - A

19

6667419

WASHER

20

NUT NSS - Order Ref. 1

21

BOLT, ADJUSTING NSS - Order Ref. 1 - W/security wire
