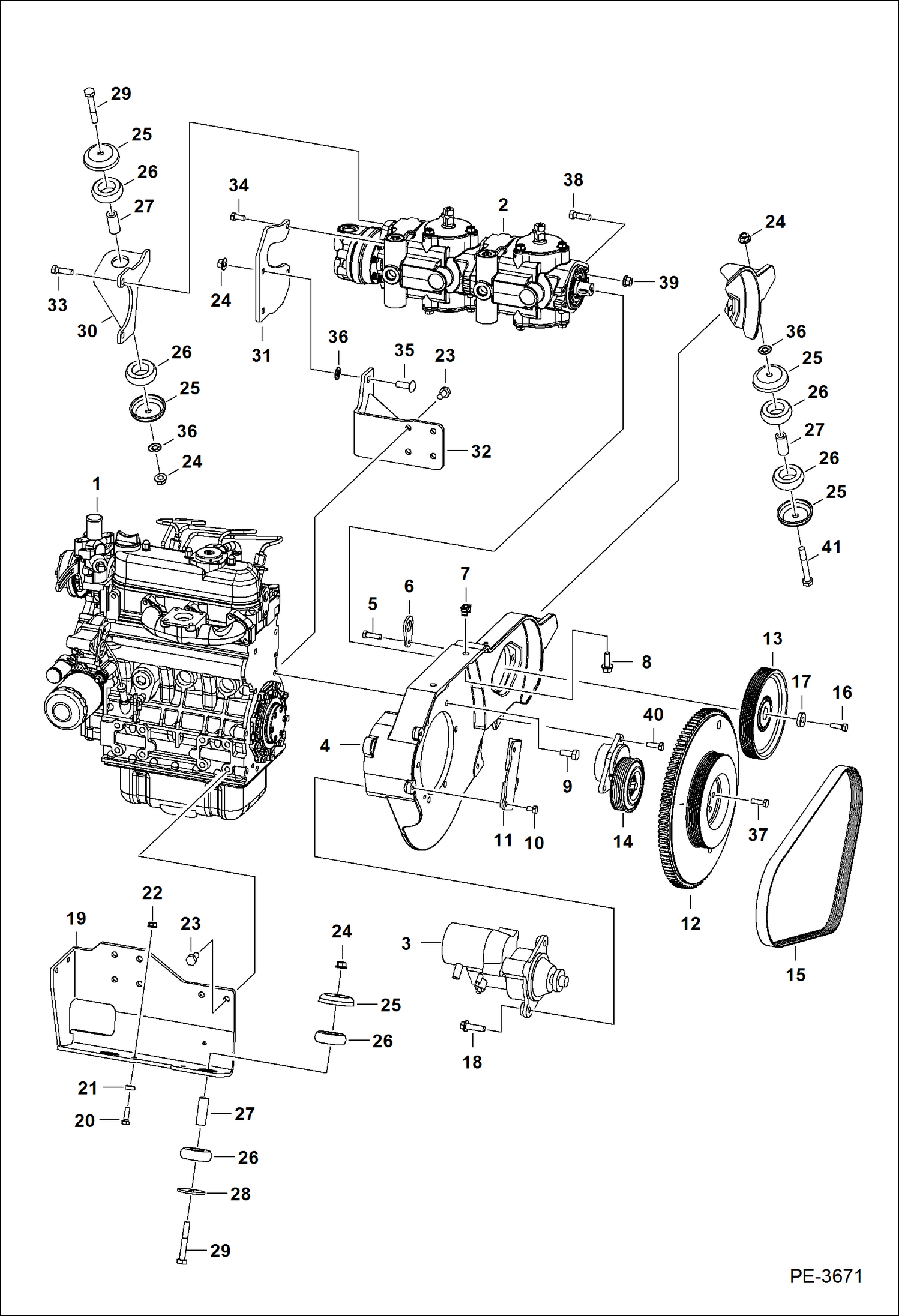

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Belt Drive & Engine & Pump Mounts) POWER UNIT

1

ENGINE See Illustration ENGINE/ B17086

2

PUMP See Illustration HYDROSTATIC PUMP/ MS2621

3

STARTER See Illustration STARTER/ D2396

4

7120904

MOUNT, ENG

5

6667420

BOLT

6

3974882

HOOK

7

6678785

NUT retaining

8

35C616

BOLT 5

9

6719825

BOLT

10

1CM812

BOLT

11

7121442

BRACKET, TIMING

12

7121603

FLYWHEEL, ENG ASSY W/ring gear

12

6510470

RING GEAR

13

7115263

PULLEY, DRIVE

14

6690473

IDLER, BELT DRIVE ASSY

15

6690471

BELT, DRIVE

16

7154424

SCREW

17

7142032

WASHER Was 616783 - B

18

59CM1035

BOLT

19

7145179

MOUNT, ENG

20

1CM825

BOLT

21

6568877

WASHER

22

51DM8

NUT

23

6733378

SCREW

24

51DM10

NUT

25

7110825

SHIELD ENG MOUNT

26

6687252

MOUNT, LOAD ISOLATOR

27

7129974

BUSHING

28

6705232

WASHER

29

7CM1070

BOLT

30

7112260

MOUNT, ENG/PUMP

31

7117339

MOUNT, ENG/PUMP

32

7120701

MOUNT, ENG/PUMP

33

17C620

BOLT

34

17C512

BOLT 5

35

28CM1030

BOLT

36

6674264

RETAINER NUT

37

6661636

BOLT flywheel

38

35C624

BOLT

39

57D6

NUT 5

40

3GM820

SCREW Was 55CM825 - B
