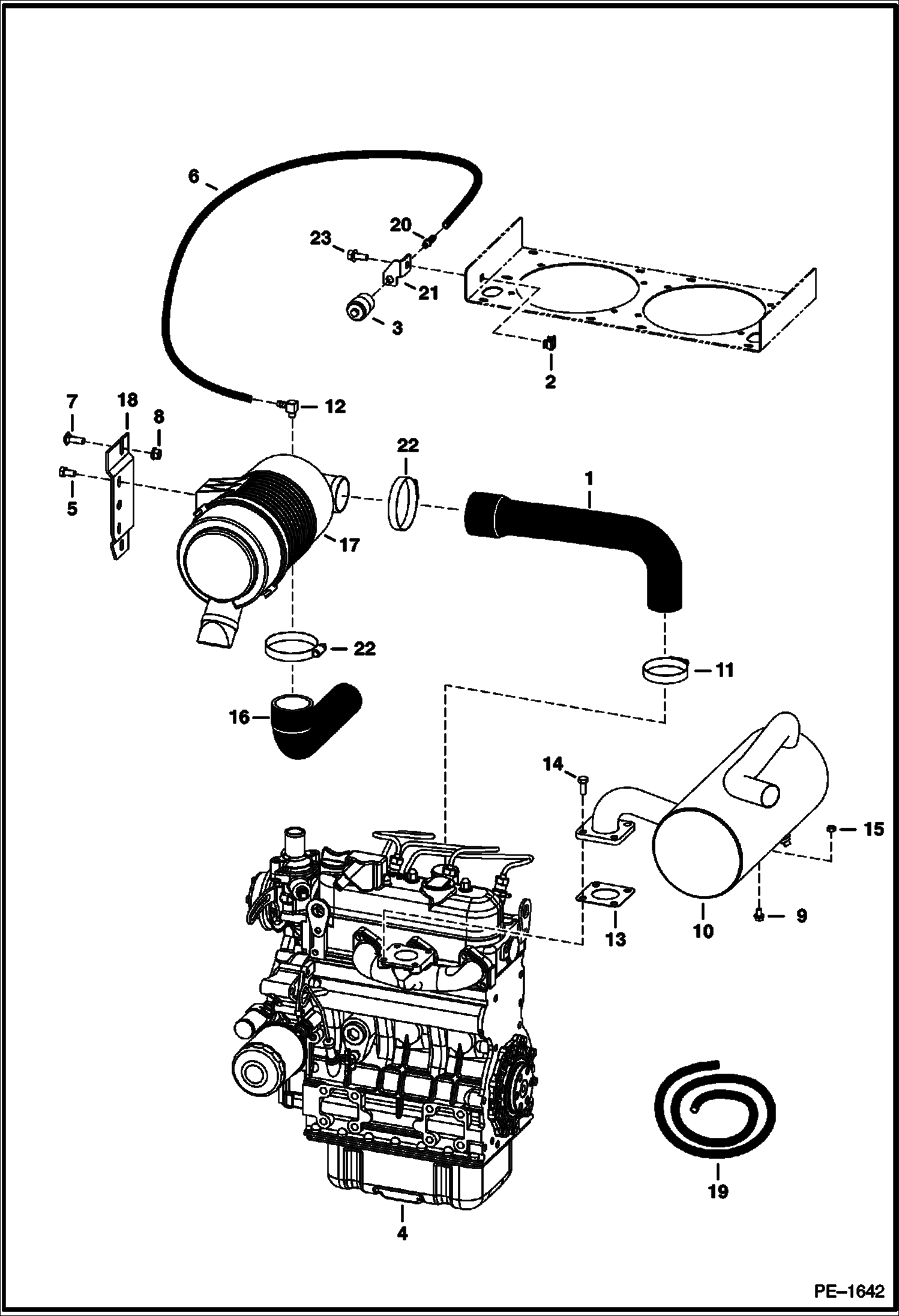

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Intake & Exhaust) POWER UNIT

1

6731667

HOSE

2

6678765

NUT

3

6515007

GAUGE

4

ENGINE See Illustration ENGINE/ B17086

5

55CM816

BOLT

6

HOSE NLA - 18'' (457,2 mm) long - Order Ref. 19

7

37C516

BOLT

8

57D5

NUT

9

35C616

BOLT 5

10

6732282

MUFFLER spark arrestor

11

42HL250

CLAMP

12

6515156

CONNECTOR

13

6727752

GASKET muffler - Was 6575580 - B

14

6701123

SCREW exhaust

15

6678785

NUT

16

6731715

HOSE

17

AIR CLEANER See Illustration AIR CLEANER/ C3490

18

6731396

MOUNT

19

6557720

HOSE

20

6505813

CONNECTOR

21

6704823

BRACKET

22

42HL300

CLAMP

23

35C508

BOLT
