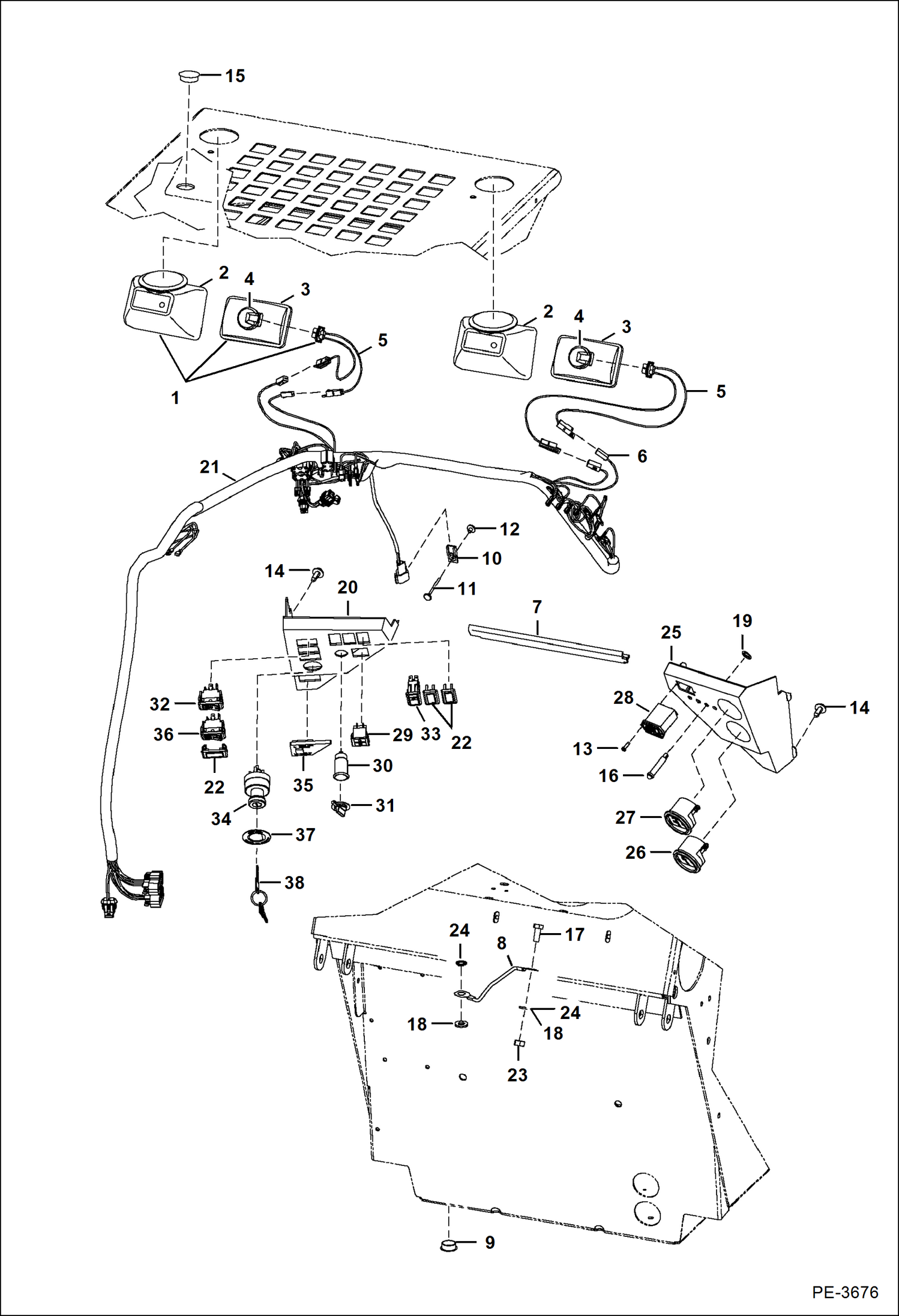

Запчасти Bobcat S-Series CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6577801

LIGHT W/Ref 2 - 5

2

6578824

HOUSING

3

6649478

BULB HOUSING

4

6667934

BULB

5

6578528

HARNESS

6

6519548

CONNECTOR

7

6531618

CROSSMEMBER

8

6594283

WIRE

9

6648391

PLUG

10

6665000

CLIP

11

6665321

RIVET

12

6665322

RIVET

13

7179008

SCREW, PLASTIC Was 65G608 - B

14

6702642

SCREW

15

6707674

PLUG

16

7025306

LIGHT, LED RED Was 6698061 - A

17

1C512

BOLT

18

25E15

WASHER

19

6698369

RETAINER

20

6730034

PANEL

21

7148518

HARNESS, CAB

22

6665314

PLUG

23

61D5

NUT

24

6E5

WASHER

25

7152276

PANEL, INSTRUMENT

26

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

26

6669663

GAUGE

27

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

27

6669664

VOLTMETER W/O clamp

28

6664886

HOURMETER

29

6636018

LIGHT

30

6664223

OUTLET

31

6664224

CAP

32

6665315

SWITCH headlight

33

6665318

SWITCH glow plug

34

6691594

SWITCH IGNITION ASSY

35

6674220

SWITCH, OVERRIDE TRACTION push to operate

36

6678203

SWITCH park brake

37

6709028

PLATE brake start

37

6596218

PLATE brake start

38

6693241

KEY 10 ignition - single key W/O ring
