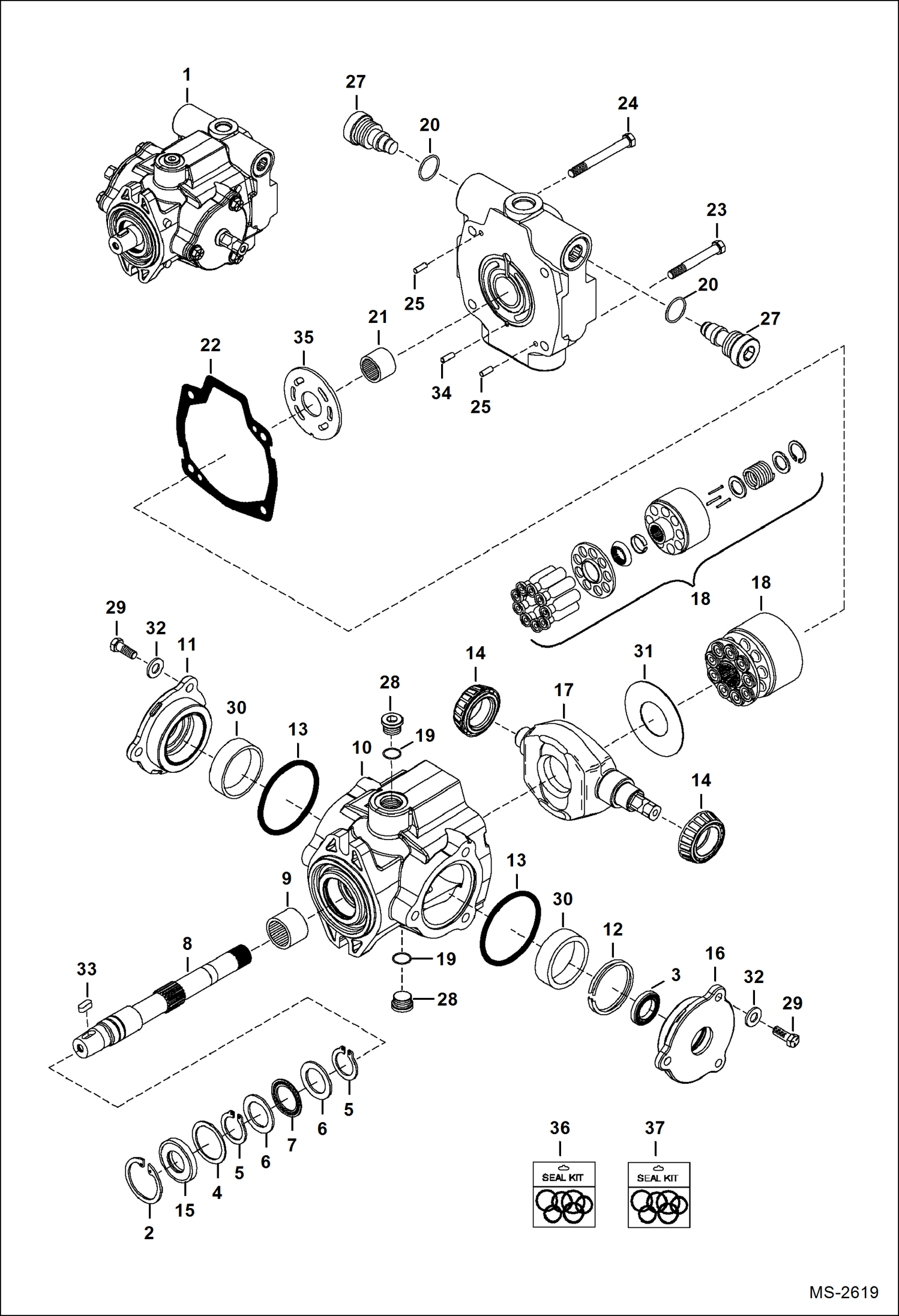

Запчасти Bobcat S-Series HYDROSTATIC PUMP (Pulley End) HYDROSTATIC SYSTEM

1

7000309

PUMP, PISTON New - 70160-LCA-03 - Pulley end of pump - Ref. 2 - 35

2

661415

SNAP RING

3

6656353

SHAFT SEAL

4

6598875

WASHER

5

710776

SNAP RING

6

6598878

RACE

7

3292657

BEARING thrust

8

6691483

SHAFT drive - tapered

9

851239

BEARING

10

6677610

HOUSING W/Ref. 9 - Also Order Ref. 36

11

6677600

COVER

12

CRUSH RING NSS - Order Ref 36

13

6677605

O-RING

14

6677598

BEARING

15

6635527

SEAL

16

6677599

COVER Also Order Ref. 36

17

6692491

SWASHPLATE yoke - Also Order Ref. 36

18

6598893

GROUP

19

6634874

O-RING

20

6677596

O-RING

21

654386

BEARING

22

GASKET NSS - Order Ref. 37

23

6677601

BOLT

24

6677602

BOLT

25

214028

PIN

26

6691484

HOUSING W/Ref. 21

27

6681916

RELIEF VALVE W/Ref. 20

28

6677607

PLUG W/Ref. 19

29

6691485

BOLT

30

6677603

CUP bearing

31

6677592

PLATE swash

32

6677593

WASHER

33

6598880

KEY

34

6677588

PIN

35

6692493

PLATE VALVE

36

6677502

SHIM KIT

37

6692334

SEAL KIT
