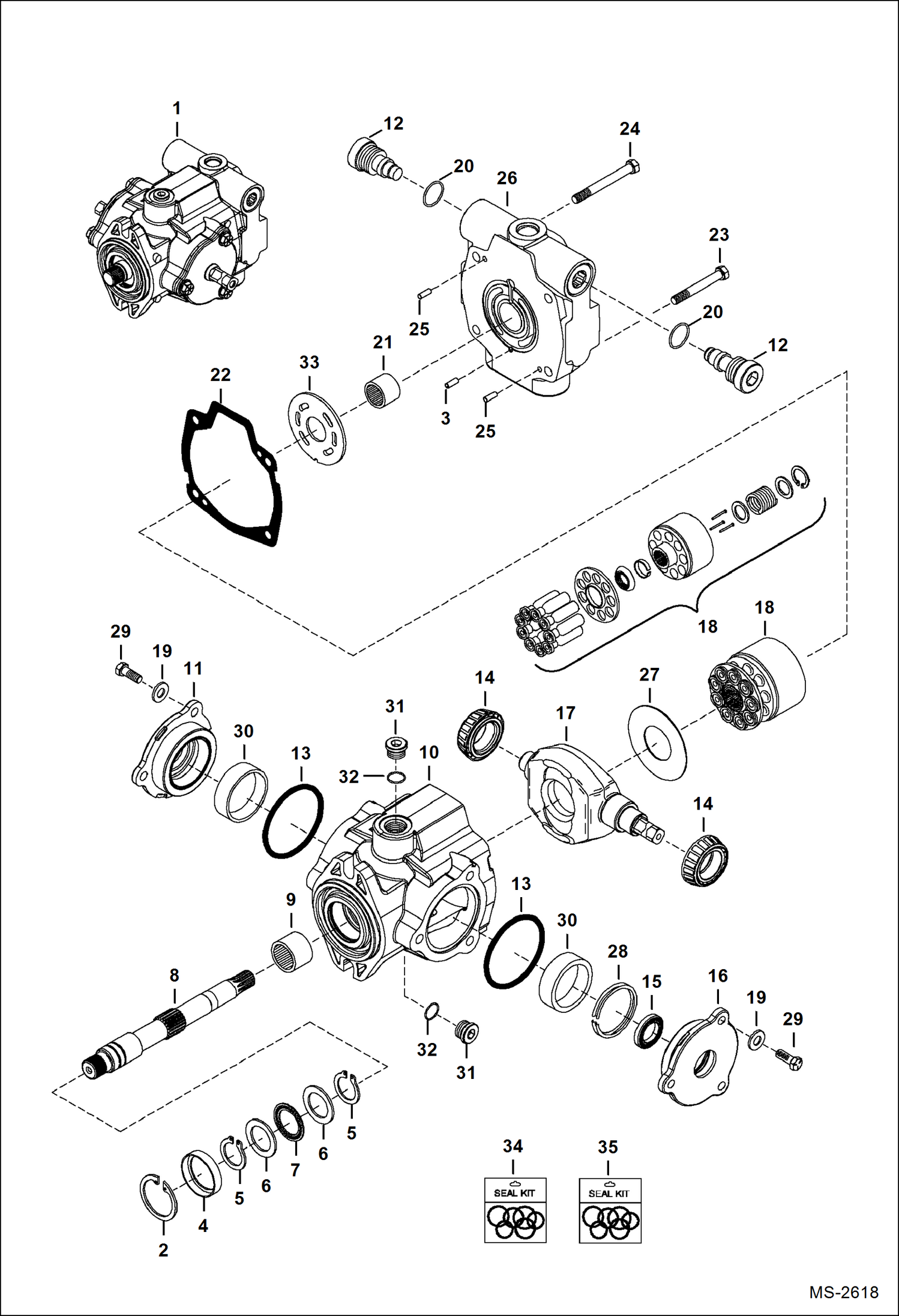

Запчасти Bobcat S-Series HYDROSTATIC PUMP (Gear Pump End) HYDROSTATIC SYSTEM

1

7000310

PUMP, PISTON New - 70160-LCB-03 - Gear pump end - Ref. 2-33

2

661415

SNAP RING

3

6677588

PIN

4

6677591

SPACER

5

710776

SNAP RING

6

6598878

RACE

7

3292657

BEARING thrust

8

6692500

SHAFT, DRIVE

9

851239

BEARING

10

6677589

HOUSING Also Order Ref. 34 - W/Ref. 9

11

6677600

COVER

12

6681916

RELIEF VALVE W/Ref. 20

13

6677605

O-RING

14

6677598

BEARING

15

6656353

SHAFT SEAL

16

6677599

COVER Also Order Ref. 34

17

6692491

SWASHPLATE yoke - Also Order Ref. 34

18

6598893

GROUP

19

6677593

WASHER

20

6677596

O-RING

21

654386

BEARING

22

GASKET NSS - Order Ref. 35

23

6677601

BOLT

24

7000315

BOLT

25

214028

PIN

26

6691484

HOUSING W/Ref. 21

27

6677592

PLATE thrust

28

CRUSH RING NSS - Order Ref. 34

29

6691485

BOLT

30

6677603

CUP bearing

31

6677607

PLUG W/Ref. 32

32

6634874

O-RING

33

6692493

PLATE VALVE

34

6677502

SHIM KIT

35

6692334

SEAL KIT
