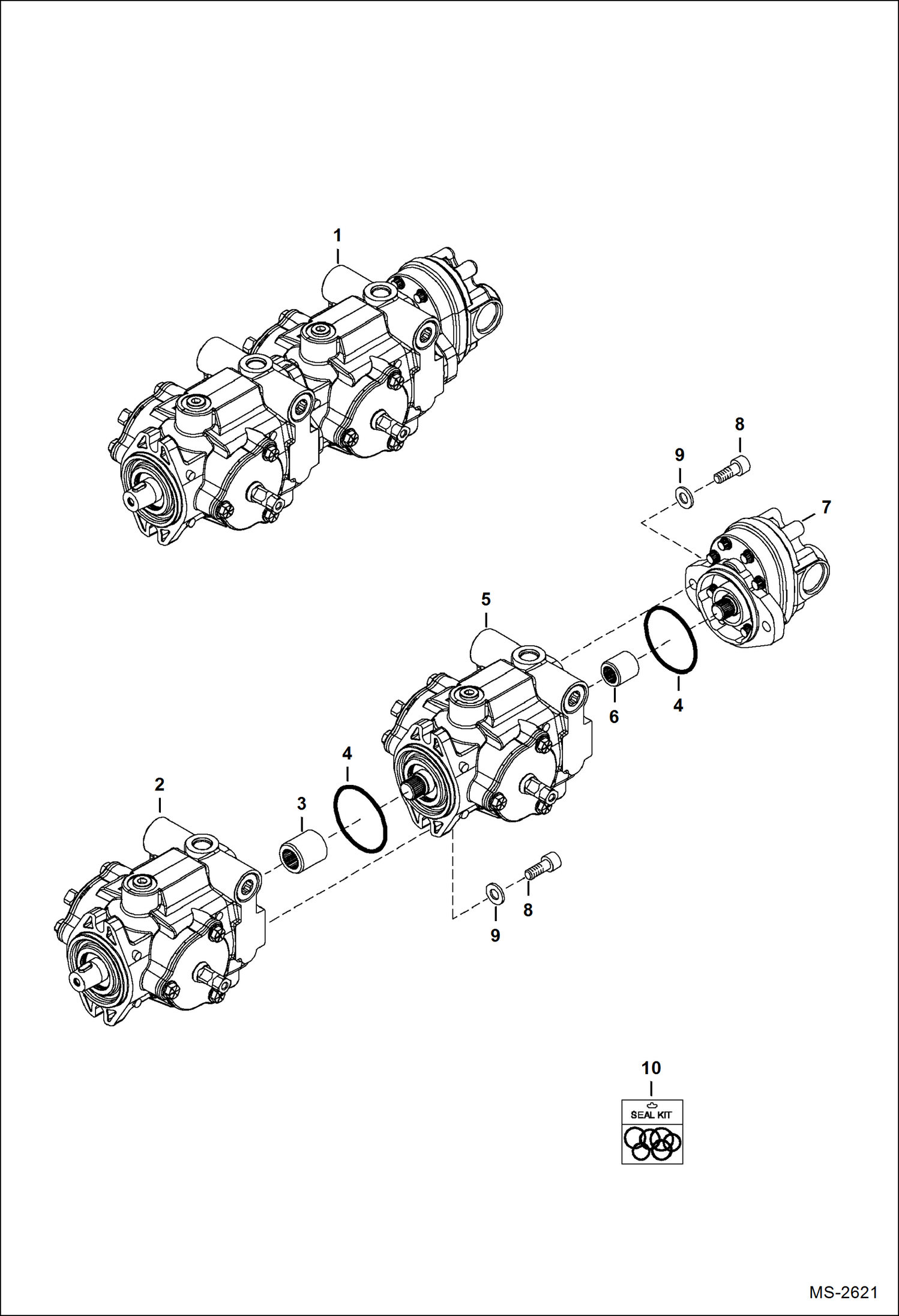

Запчасти Bobcat S-Series HYDROSTATIC PUMP HYDROSTATIC SYSTEM

1

7120536

PUMP, HYD New - Ref. 2-10 - tapered keyed front shaft - pumps are white in color - 78163-LAL-03 - Was 6691077 - D

2

PUMP See Illustration HYDROSTATIC PUMP/ MS2619 new - tapered shaft

3

6598855

COUPLER

4

25K20308

O RING 10

5

PUMP See Illustration HYDROSTATIC PUMP/ MS2618 new

6

6677650

COUPLER

7

GEAR PUMP See Illustration GEAR PUMP/ B24949

8

6692508

BOLT

9

6677593

WASHER

10

6692334

SEAL KIT Use qty. (1) for each piston pump, Ref. 2 & 5
