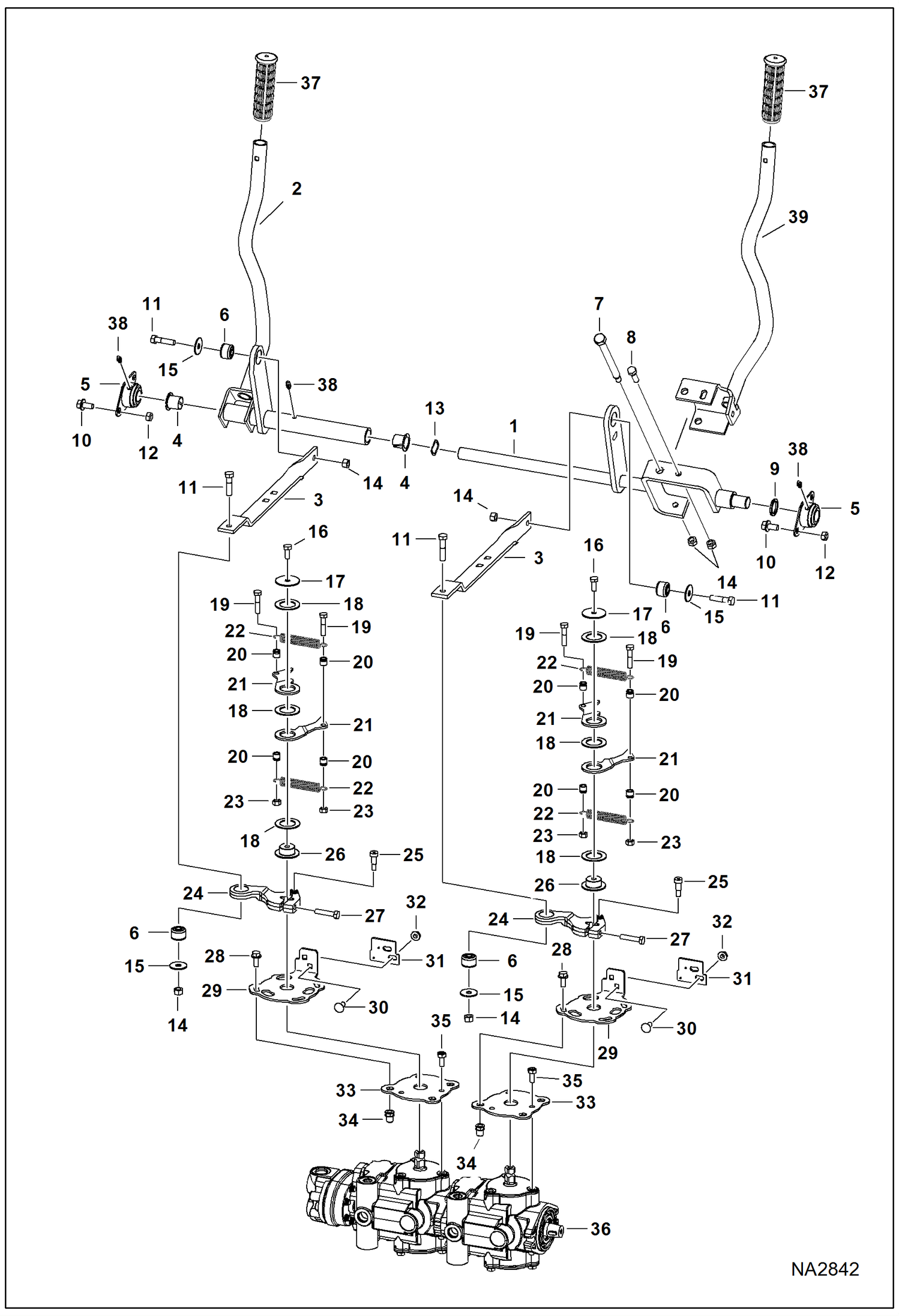

Запчасти Bobcat S-Series HAND CONTROLS (S/N A3W613690 & Above, A3W713380 & Above) HYDROSTATIC SYSTEM

1

7173337

SHAFT, STEERING

2

7173338

LEVER, STEERING

3

7120686

LINK, STEERING

4

6512027

BUSHING

5

6558736

FLANGE

6

6685060

BUSHING, TORSION

7

6553081

BOLT

8

17C620

BOLT

9

6733130

WASHER

10

35C612

BOLT

11

17C624

BOLT 5

12

85D6

NUT, 5

13

6599741

WASHER

14

95D6

NUT

15

6737388

WASHER

16

55CM820

BOLT

17

7168208

WASHER

18

7116773

WASHER

19

17C524

BOLT

20

7170794

SPACER

21

7169565

LEVER, SHIFT

22

7186580

SPRING, EXTENSION

23

81D5

NUT

24

7169714

LEVER, PINTLE

25

38C610

BOLT

26

7168207

BUSHING

27

55CM840

BOLT

28

59CM820

SCREW HX FLNG W/T 8.8

29

7171258

PLATE, ADJUST

30

37C512

BOLT

31

7171257

PLATE, END

32

97D5

NUT

33

7156039

BRACKET

34

6813676

INSERT

35

73G612

CAPSCREW

36

PUMP See Illustration HYDROSTATIC PUMP/ MS2621

37

6513963

GRIP

38

6518200

FITTNG, GREASE 10
