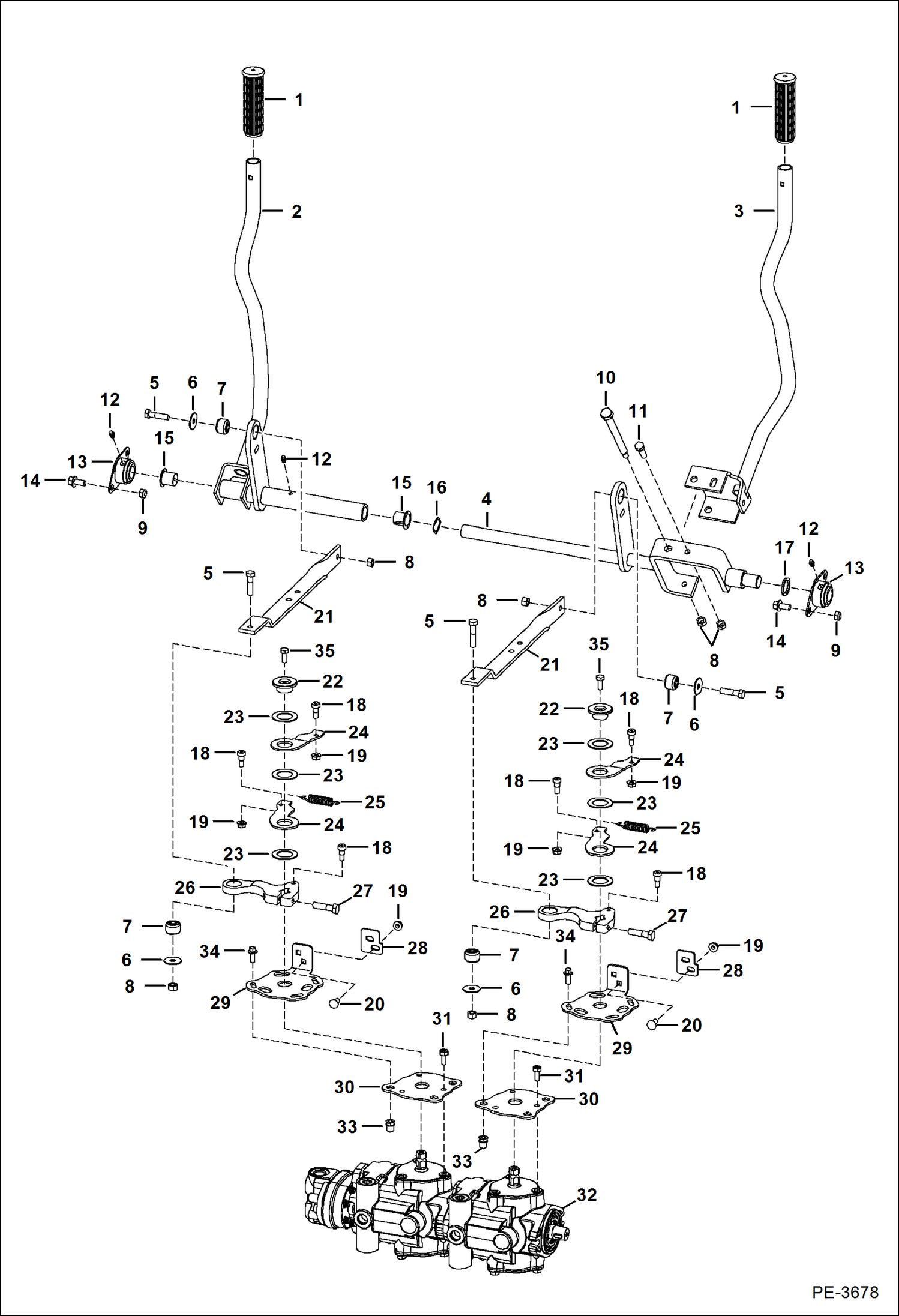

Запчасти Bobcat S-Series HAND CONTROLS (S/N A3W611001 - 13689, A3W711001 - 13379) HYDROSTATIC SYSTEM

1

6513963

GRIP

2

7120753

LEVER, STEERING

3

6733306

LEVER

4

7120755

SHAFT, STEERING

5

17C624

BOLT 5

6

6737388

WASHER

7

6685060

BUSHING, TORSION

8

95D6

NUT

9

85D6

NUT, 5

10

6553081

BOLT

11

17C620

BOLT

12

6518200

FITTNG, GREASE 10

13

6558736

FLANGE

14

35C612

BOLT

15

6512027

BUSHING

16

6599741

WASHER

17

6733130

WASHER

18

38C606

BOLT

19

97D5

NUT

20

37C512

BOLT

21

7120686

LINK, STEERING

22

7116772

BUSHING, TAPERED

23

7116773

WASHER

24

7146433

LEVER, STOP

25

7152601

SPRING, EXTENSION

26

7153579

LEVER, PINTLE

27

55CM840

BOLT Was 55CM1040 - D

28

7148460

PLATE, SIDE

29

7171258

PLATE, ADJUST Was 7145181 - A

30

7156039

BRACKET

31

73G612

CAPSCREW

32

PUMP ASSY See Illustration HYDROSTATIC PUMP/ MS2621 tandem

33

6813676

INSERT threaded

34

59CM820

SCREW HX FLNG W/T 8.8

35

55CM820

BOLT
