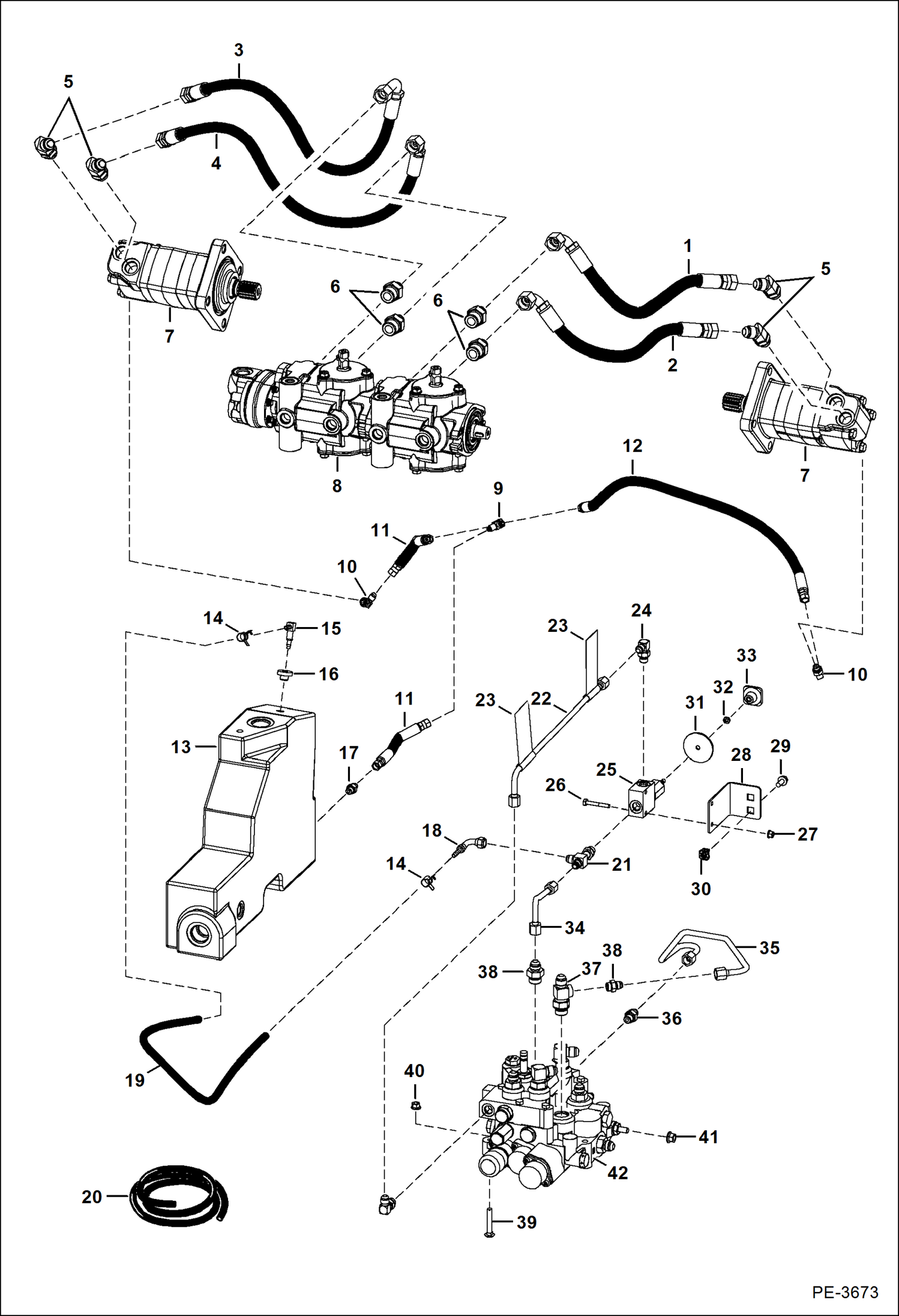

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

7130347

HOSE, HYD

2

7130348

HOSE, HYD

3

7130349

HOSE, HYD

4

7130350

HOSE, HYD

5

18KB1010

FITTING, HYD ELBOW

6

15KB1012

FITTING, HYD CONNECTOR

7

MOTOR See Illustration HYDROSTATIC MOTOR/ D1635

8

PUMP See Illustration HYDROSTATIC PUMP/ MS2621

9

10K3

TEE

10

17KB0404

FTG HYD ELBOW 90

11

6728469

HOSE

12

6728470

HOSE

13

6714556

TANK

14

5HM13

CLAMP

15

6598908

ELBOW

16

6553411

BUSHING

17

15KB0404

FTG HYD S Connector

18

6680431

ELBOW

19

HOSE 23'' long - Order Ref 20

20

6577821

HOSE Bulk - sold per foot

21

6805243

TEE

22

6733986

TUBELINE W/Ref. 23 - available only as an assembly W/two danger decals installed

23

6809511

DECAL, DANGER

24

17KB0606

FITTING

25

7230495

VALVE, LIFT MANUAL manual lift release - Was 6667844 - A

26

17C428

BOLT

27

83D4

NUT 10

28

6732299

BRACKET

29

35C512

BOLT

30

6678765

NUT

31

6707101

SEAL

32

7D4

NUT

33

6737524

KNOB

34

7130546

TUBELINE, HYD

35

6736035

TUBELINE RELIEF

36

15KB0610

FITTING, HYD CONNECTOR

37

6736553

TEE

38

15KB0606

FITTING, HYD CONNECTOR

39

37C532

BOLT

40

83D5

NUT 5

41

83D6

NUT 5

42

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ PE1654
