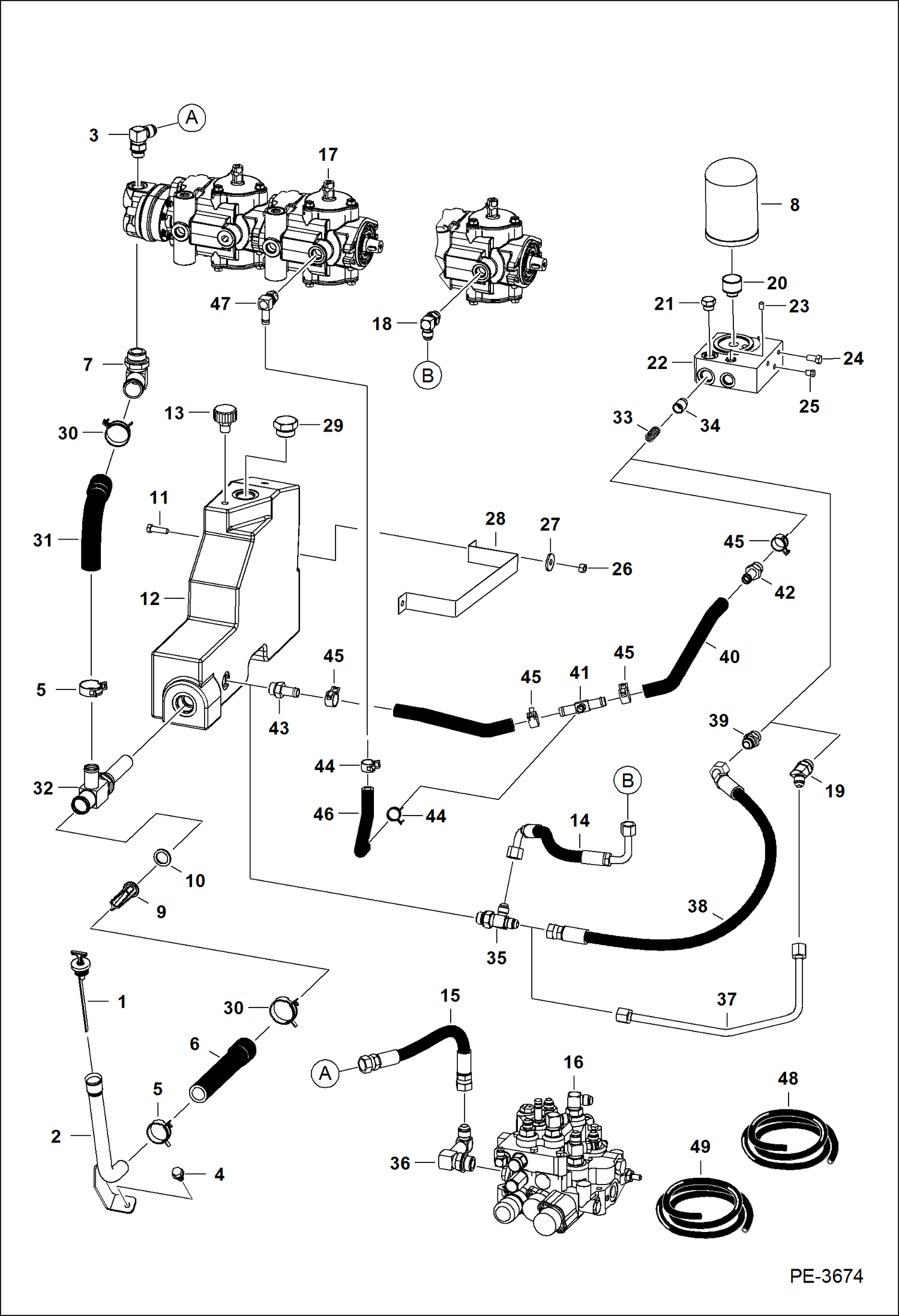

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Tank & FIlter) HYDROSTATIC SYSTEM

1

6564143

DIPSTICK

2

6732254

TUBE

3

17KB1010

FITTING, HYD ELBOW

4

84G3112

BOLT 5

5

5HM35

HOSECLAMP

6

6714557

HOSE hyd fill

7

1312337

ELBOW W/Ref. 17

8

6677652

FILTER, OIL HYD

9

6732215

FILTER

10

6729189

SEAL

11

17C620

BOLT

12

6714556

TANK

13

7025626

VENT, BREATHER - Was 6684923 - A

14

7156031

HOSE, HYD ASSY

15

6734176

HOSE

16

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1654

17

PUMP See Illustration HYDROSTATIC PUMP/ MS2621 tandem

18

17KB0808

FITTING, HYD ELBOW

19

ELBOW NLA - Order Ref. 40-47 - Was 7156161 - A

20

6563977

INSERT

21

24K6

FITTING

22

6734226

FILTER BLOCK

23

6563920

FILTER

24

17C612

BOLT 5

25

40K2

PLUG

26

95D6

NUT

27

619021

WASHER, 5

28

6564151

BAND

29

24K10

PLUG

30

5HM42

HOSECLAMP Was 5HM38 - B

31

6733666

HOSE

32

6727935

TEE

33

SPRING, COMPRESSION NLA - 586 kpa (85 psi) rating - Order 7187356 spring - Was 6563978 - B

33

7187356

SPRING, COMPRESSION 862 kpa (125 psi) rating - W/blue mark

34

6734350

POPPET

35

TEE NLA - Use W/tubeline - Order Ref. 40-47 - Was 21KB810 - B

35

TEE NLA - Order Ref. 40-47 - Was 7172537 - A

36

6681494

FITTING

37

TUBELINE, HYD NLA - Order Ref. 40-47 - Was 7156032 - A

38

HOSE, HYD NLA - Order Ref. 40-47 - Was 7172408 - A

39

6562656

ADAPTER

40

HOSE NLA - 247,6 mm (9.75'') long - Order Ref. 47

41

7176717

FITTING, HYD TEE

42

7181088

FITTING, HYD CONNECTOR

43

7181176

FITTING, HYD CONNECTOR

44

5HM20

CLAMP

45

5HM23

CLAMP

46

HOSE NLA - 222,3 mm (8.75'') long - Order Ref. 48

47

7183678

FITTING, HYD ELBOW

48

6578171

HOSE, BULK / FOOT bulk - sold per foot - Was 6654057 - B

49

6578172

HOSE bulk - sold per foot
