Запчасти Bobcat S-Series CONTROL PEDALS HYDRAULIC SYSTEM

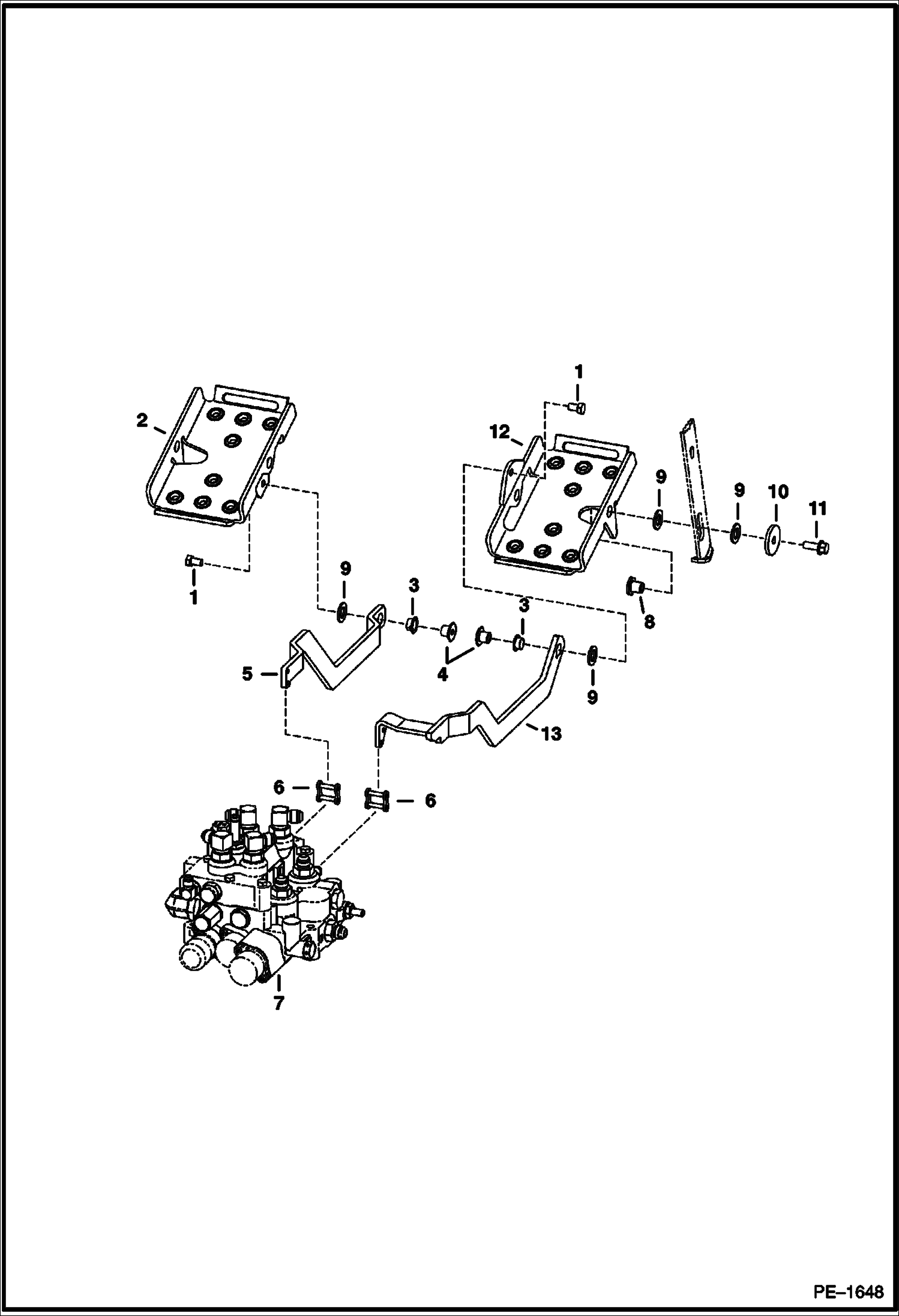

Схема запчастей Bobcat S-Series - CONTROL PEDALS HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

43C610

BOLT pre-applied thread locker - Was 17C610

2

6707056

PEDAL

3

6598906

BUSHING nylon

4

7209783

NUT, RETAINING Was 6729750 - A

5

6732009

BAR

6

6515186

CONNECTOR connector

7

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1654

8

6594298

NUT retaining

9

6700170

WASHER nylon

10

872229

WASHER

11

35C616

BOLT 5

12

6732021

PEDAL

13

6732010

BAR

Выбрано товаров: 13
