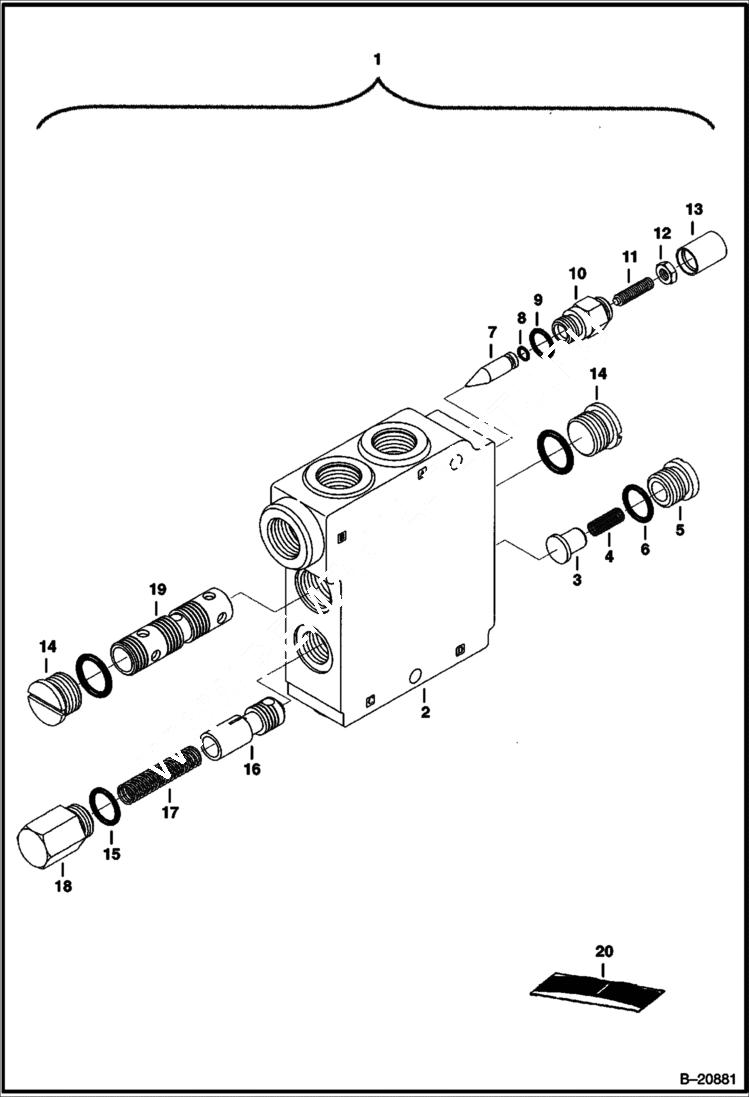

Запчасти Bobcat S-Series BUCKET POSITIONING VALVE HYDRAULIC SYSTEM

1

6680984

VALVE Ref. 2-19

2

BODY NSS

3

6647783

LOAD CHECK

4

6647785

SPRING load check

5

6647784

PLUG W/Ref. 6

6

79K10

O RING 10

7

6647777

PIN

8

6647677

SECTION

9

6634874

O-RING

10

6647778

CAP adjustment

11

6648293

SCREW

12

8D4

NUT

13

6667676

COVER

14

6676543

PLUG

14

79K10

O RING 10

15

79K10

O RING 10

16

SPOOL NSS - unloading

17

6648294

SPRING

18

6667176

PLUG W/Ref. 15

19

SPOOL NSS - flow divider

20

6647786

SEAL KIT Ref. 6, 8, 9, 13, & 15
