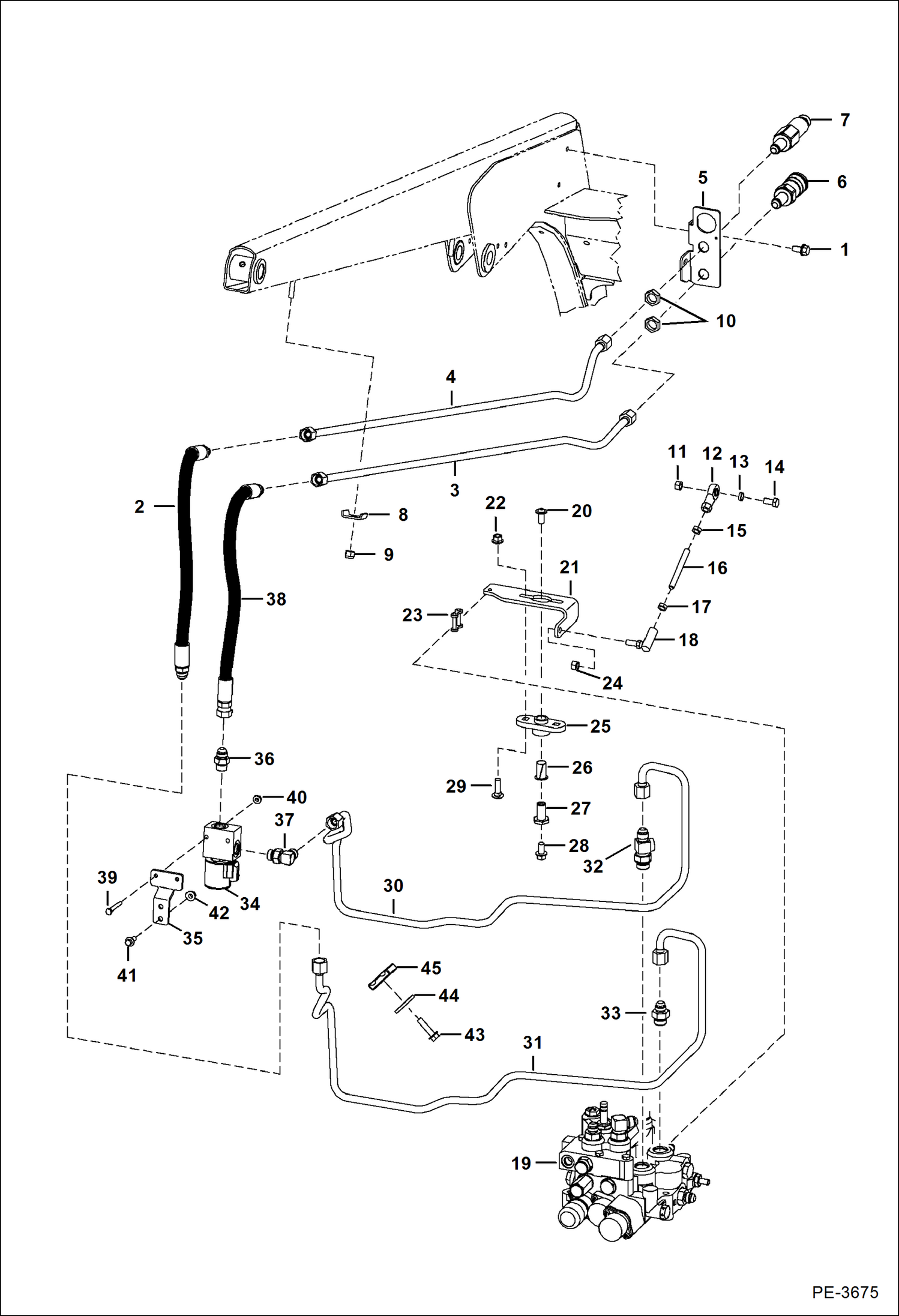

Запчасти Bobcat S-Series AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

84G3712

BOLT 5

2

6728013

HOSE

3

6711637

TUBELINE

4

6711636

TUBELINE

5

6727541

BRACKET aux line

6

6676559

COUPLER, FF FEMALE 1/2''

7

6676560

COUPLER, FF MALE 1/2''

8

6500989

CLAMP

9

59D6

NUT

10

86F6

NUT

11

95D6

NUT

12

6512955

SWIVEL L.H. threads

13

6810385

BUSHING

14

17C620

BOLT

15

13D6

NUT

16

6733371

ROD LINKAGE

17

8D6

NUT 5

18

6599744

BALL JOINT

19

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ PE1654

20

6665839

BOLT

21

6732295

BRACKET aux lever

22

83D6

NUT 5

23

6515186

CONNECTOR

24

62D6

NUT 5

25

6708043

BUSHING flange

26

6512026

BUSHING

27

6706104

RETAINING NUT

28

43C612

BOLT Was 35C612 - B

29

37C620

BOLT

30

7130118

TUBELINE, HYD

31

7130119

TUBELINE, HYD

32

6736553

TEE

33

15KB0810

FITTING, HYD CONNECTOR

34

6693244

VALVE, LOCK LIFT 2-way

35

7147743

BRACKET, VALVE

36

15KB0808

FITTING, HYD CONNECTOR

37

17KB0808

FITTING, HYD ELBOW

38

7147866

HOSE, HYD ASSY

39

1CM650

SCREW

40

51DM6

NUT

41

29CM820

SCREW

42

51DM8

NUT

43

84G3724

BOLT

44

872229

WASHER

45

6701892

CLAMP
