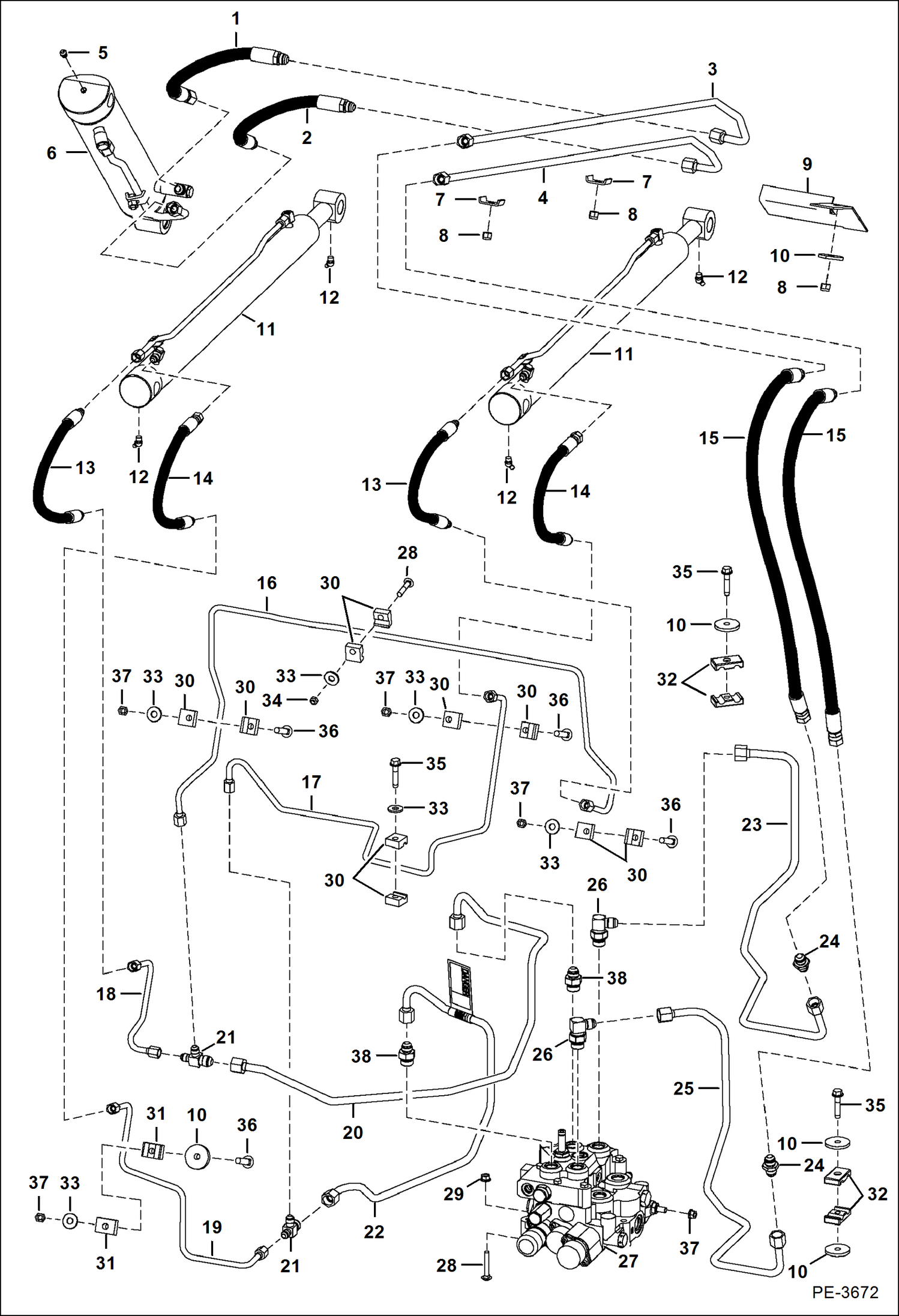

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/O Bucket Postion Valve) HYDRAULIC SYSTEM

1

6733737

HOSE

2

6733736

HOSE

3

6706073

TUBELINE

4

6706072

TUBELINE

5

10H25

FITTING, GREASE 5

6

CYLINDER See Illustration TILT CYLINDER/ PE1349 tilt

7

6500989

CLAMP

8

59D6

NUT

9

6553422

COVER

10

872229

WASHER

11

CYLINDER See Illustration LIFT CYLINDER/ PE1646 lift

12

11H15

GREASE FITTING

13

7150721

HOSE, HYD

14

7150720

HOSE, HYD

15

6708501

HOSE

16

7154321

TUBELINE, HYD

17

7154323

TUBELINE, HYD

18

6732783

TUBELINE

19

6732239

TUBELINE

20

7130121

TUBELINE, HYD

21

6719424

TEE

22

7132737

TUBELINE, HYD available only as an assembly W/danger decal installed

22

23

7130587

TUBELINE, HYD

24

87F6

FITTING

25

7130588

TUBELINE, HYD

26

17KB0810

FITTING, HYD ELBOW

27

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ PE1654

28

37C532

BOLT carriage

29

83D5

NUT 5

30

6727707

CLAMP

31

6726277

CLAMP

32

6701892

CLAMP

33

27E6

WASHER 5

34

85D5

NUT 5

35

84G3732

BOLT

36

37C632

BOLT

37

95D6

NUT

38

15KB0810

FITTING, HYD CONNECTOR
