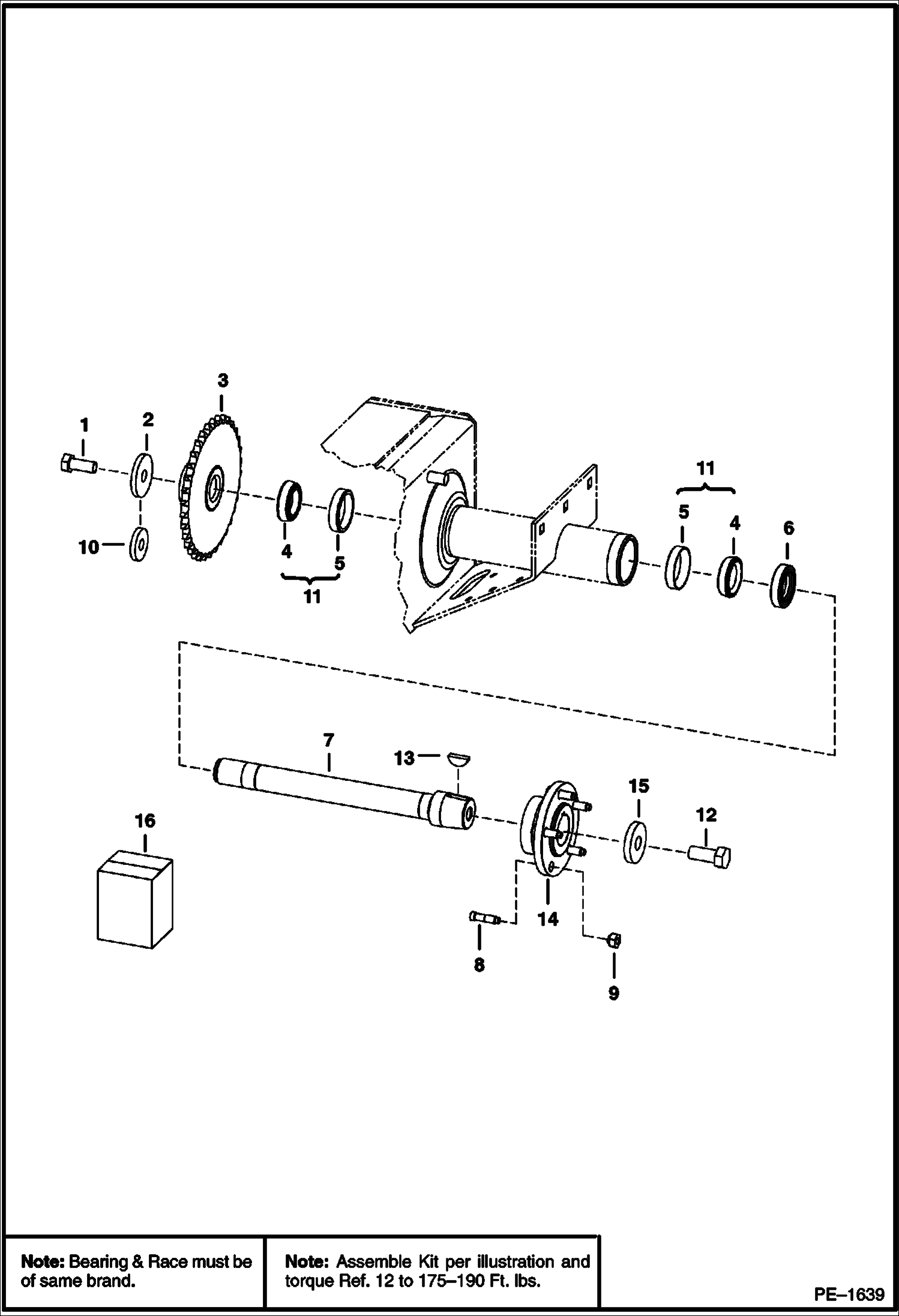

Запчасти Bobcat S-Series AXLE DRIVE TRAIN

1

48C1024

BOLT pre-applied loctite

2

6563795

WASHER

3

7134079

SPROCKET, AXLE Was 6563798 - A

4

BEARING NSS - Order Ref. 11 - See Note

5

RACE NSS - Order Ref. 11 - See Note

6

6598829

SEAL, OIL

7

6706032

SHAFT, AXLE

8

6709170

BOLT, WHEEL

9

6564669

NUT, 10

10

6592765

WASHER recessed - To take up end play

11

6633672

BEARING, ROLLER W/Race

12

48C1228

BOLT pre-applied loctite

13

6J1210

KEY

14

7145183

HUB, WHEEL W/Ref. 8

15

6552871

WASHER

16

KIT, AXLE NLA - Order Ref. 7 & 12-15 - Was 6722929 - B,D
