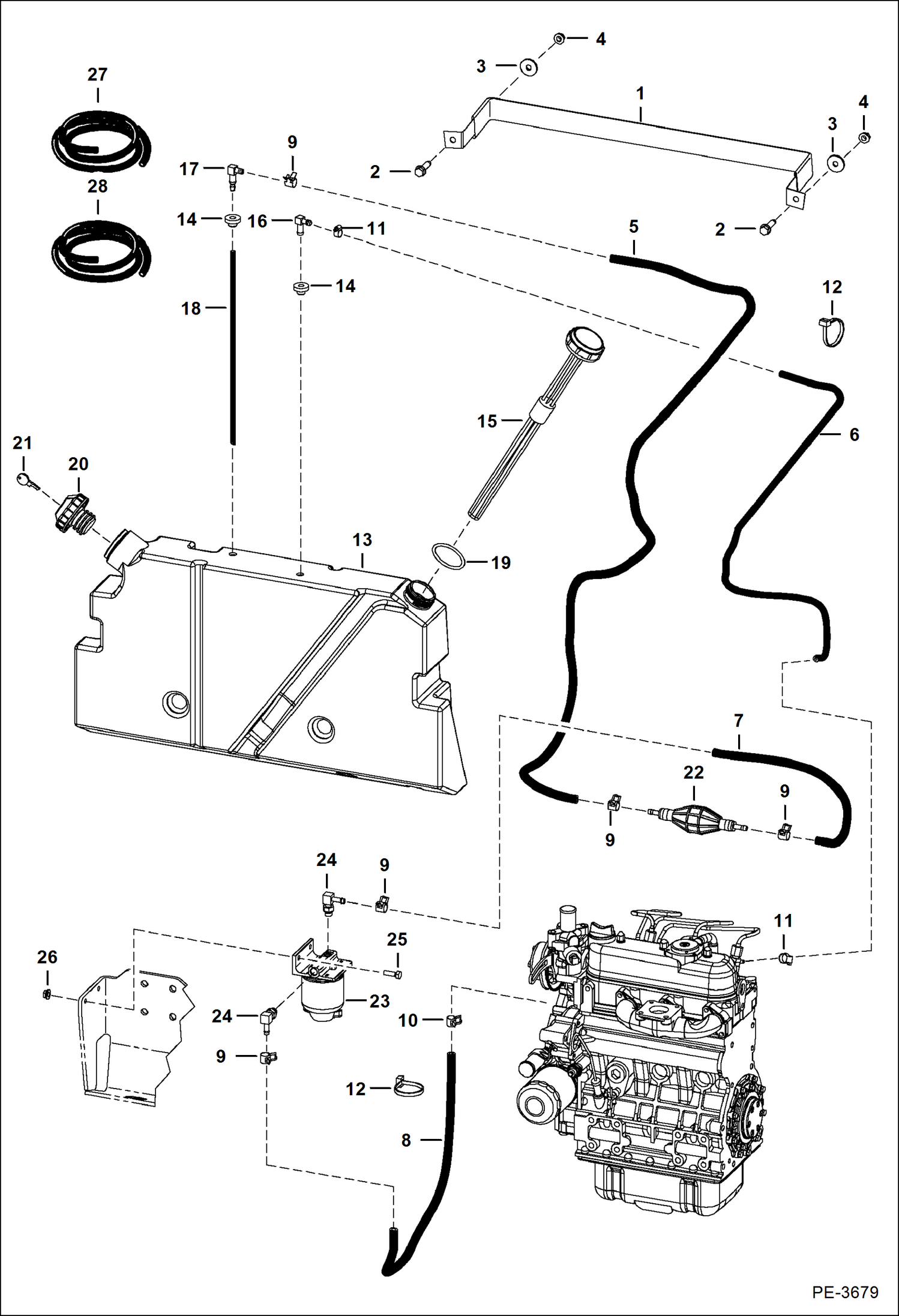

Запчасти Bobcat S-Series FUEL SYSTEM MAIN FRAME

1

6564037

BAND

1

6728472

INSULATION

2

84G3724

BOLT

3

619021

WASHER, 5

4

57D6

NUT 5

5

HOSE NLA - Order Ref 27 - 69'' long

6

HOSE NLA - Order Ref 28 - 41'' long

7

HOSE NLA - Order Ref 27 - 10.75'' long

8

HOSE NLA - Order Ref 27 - 27.50'' long

9

5HM14

CLAMP

10

5HM13

CLAMP

11

42HS04

CLAMP, HOSE

12

6624289

STRAP, TIE

13

6733225

TANK

14

6553411

BUSHING

15

6598910

GAUGE

16

6630041

ELBOW

17

7126672

ELBOW

18

6729855

HOSE 15.125'' long

19

6700631

GASKET

20

6661114

CAP. DIESEL green

20

6661696

CAP, FUEL LOCKING locking - W/Ref 21

20

7113340

CAP. DIESEL black - ESA only

21

6654374

KEY

22

6667170

PUMP 193 mm (7.6'') long

23

6667353

FILTER ASSY fuel

23

6667352

FILTER, FUEL W/SEPARATOR 12

23

6658180

PLUG, BLEED

23

72F1

FITTING

24

6715183

ELBOW

25

55CM825

BOLT

26

51DM8

NUT

27

6577822

HOSE bulk - sold per foot - .3125'' ID

28

6578169

HOSE bulk - sold per foot - 0.19'' ID
