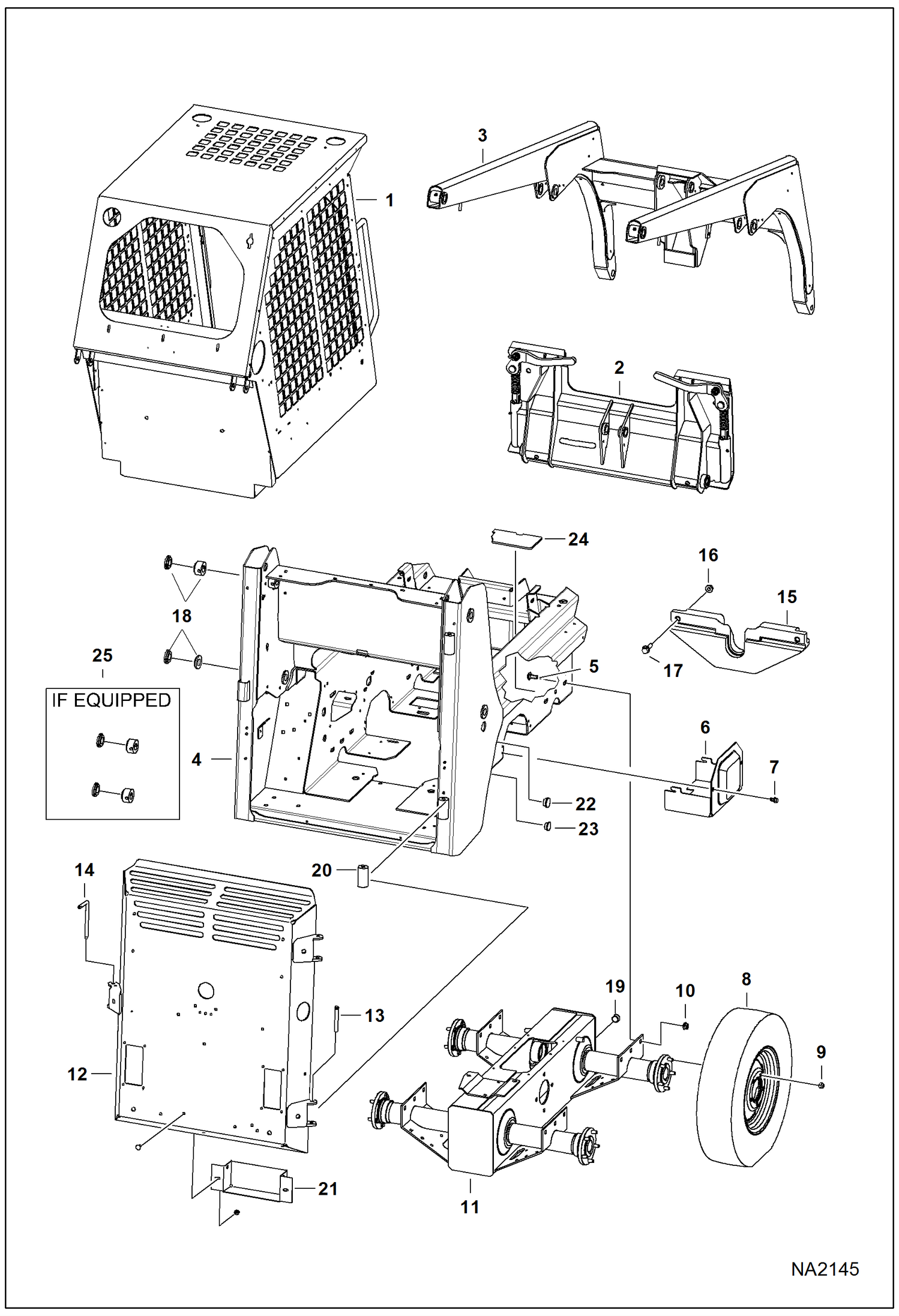

Запчасти Bobcat S-Series MAIN FRAME MAIN FRAME

1

CAB See Illustration OPERATOR CAB/ PE1655

2

BOB-TACH See Illustration BOB-TACH/ PE1026

3

LIFT ARM See Illustration LIFT ARMS & BOB-TACH/ PE1245

4

7134276

FRAME, MAIN ASSY

5

37C820

BOLT

6

6718144

COVER

7

84G3712

BOLT 5

8

TIRES & RIMS See Illustration TIRES & RIMS/ NA6121

9

6561152

NUT

10

83D8

NUT 5

11

7115670

CHAINCASE See Illustration DRIVE TRAIN/ PE1638 Chaincase only - does not include motors, axles, chains or sprockets

12

REAR DOOR See Illustration REAR DOOR/ PE1637

13

6564340

PIN

14

7158146

PIN, LOCK includes 6564192 pin, cable & 1F612 cotter pin

14

6564192

PIN

14

1F612

COT.PIN

15

6564681

WEIGHT

16

57D8

NUT 10

17

31C832

BOLT

18

6563829

BUSHING Weld On

19

6731121

PLUG

20

6562224

BUSHING Weld On

21

6732848

TOOL CONTAINER

22

7171006

PLUG

23

6697942

PLUG, NYLON

24

7177958

COVER, FLOOR
