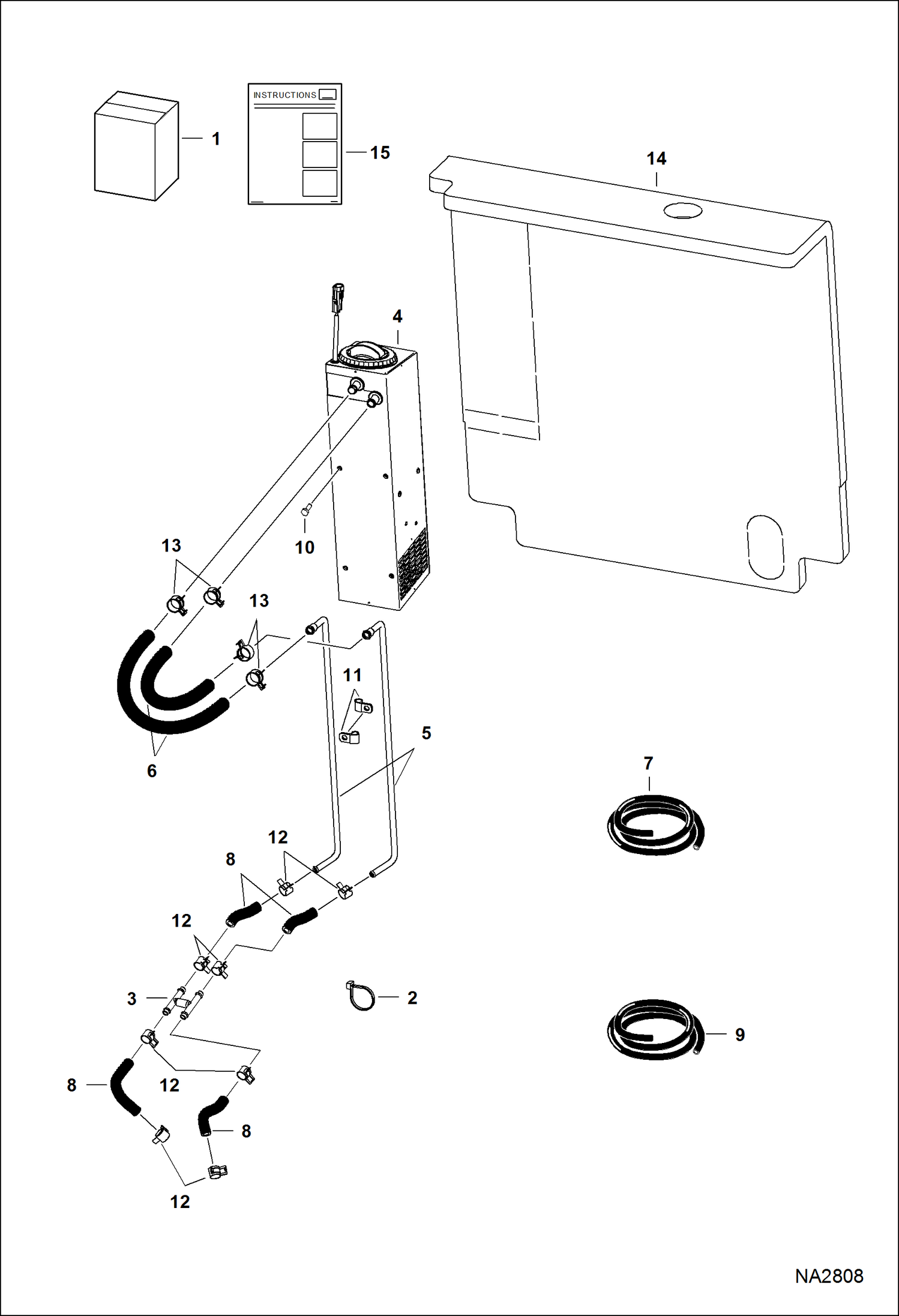

Запчасти Bobcat S-Series HEATER KIT (A3W613400 & Above, A3W713236 & Above) ACCESSORIES & OPTIONS

1

7194019

KIT, HEATER Ref. 2-15

2

6624289

STRAP, TIE

3

6680949

FITTING H PATTERN

4

7012293

HEATER, CAB

5

7183677

TUBELINE, HYD

6

HOSE NSS - 12'' (304,8 mm) - Order Ref 7

7

6565977

HOSE bulk - sold per foot

8

HOSE NSS - 4'' (101,6 mm) - Order Ref. 9

9

6709738

HOSE bulk - sold per foot

10

17C412

BOLT 5

11

30H22

CLIP

12

5HM17

CLAMP, HOSE Was 5HM15 - B

13

5HM20

CLAMP

14

7151156

INSULATION, CAB BACK

15

6989742

INSTRUCTIONS
