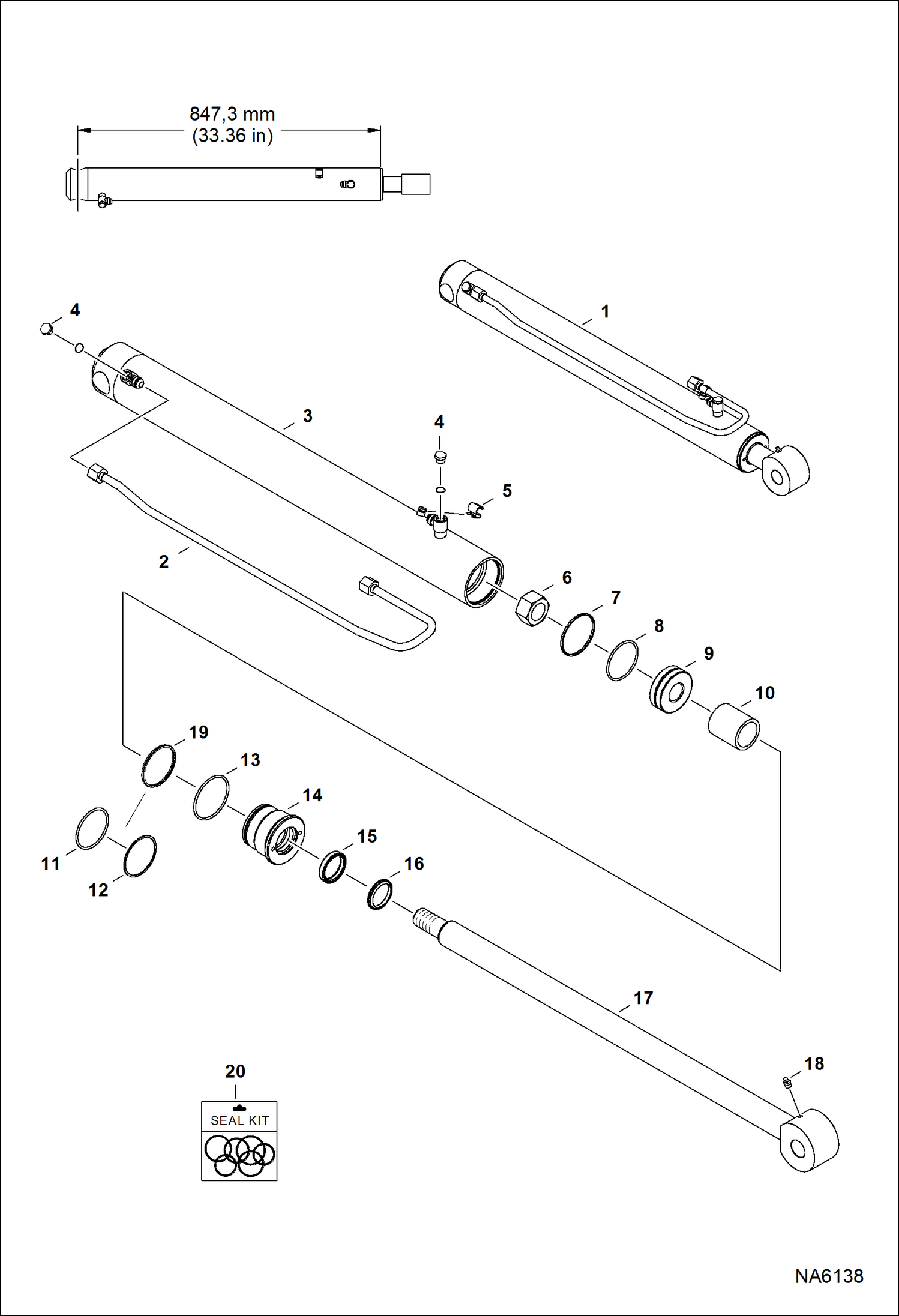

Запчасти Bobcat S-Series LIFT CYLINDER HYDRAULIC SYSTEM

1

7203496

CYLINDER, LIFT

2

7151520

TUBELINE, HYD

3

7203497

TUBE, CASE CYL

4

6812171

PLUG

5

6690911

CLAMP

6

6810540

NUT

7

947088

RING, BACK-UP

8

25K30218

O RING 10

9

6697863

PISTON, ASSY 25,4 mm (1'') long - LH and RH lift cylinders must be serviced with same size pistons - W/Ref. 7 & 8

9

PISTON, ASSY See Illustration LIFT CYLINDER CUSHION/ NA6760 - if equipped - 63,5 mm (2.5'') long - W/Ref. 7 & 8

10

7203498

SPACER

11

54K40224

O-RING

12

73K232

RING, BACK-UP

13

58K234

O RING 10 Was 54K40300 - A

14

6812526

HEAD

15

6667327

SEAL

16

6686999

WIPER, ROD CYL

17

7151168

SHAFT

18

10H25

FITTING, GREASE 5

19

7008355

SEAL, QUAD

20

7225639

KIT, SEAL Ref. 7, 8, 11-13, 15 & 16 - Was 7137945 - A
