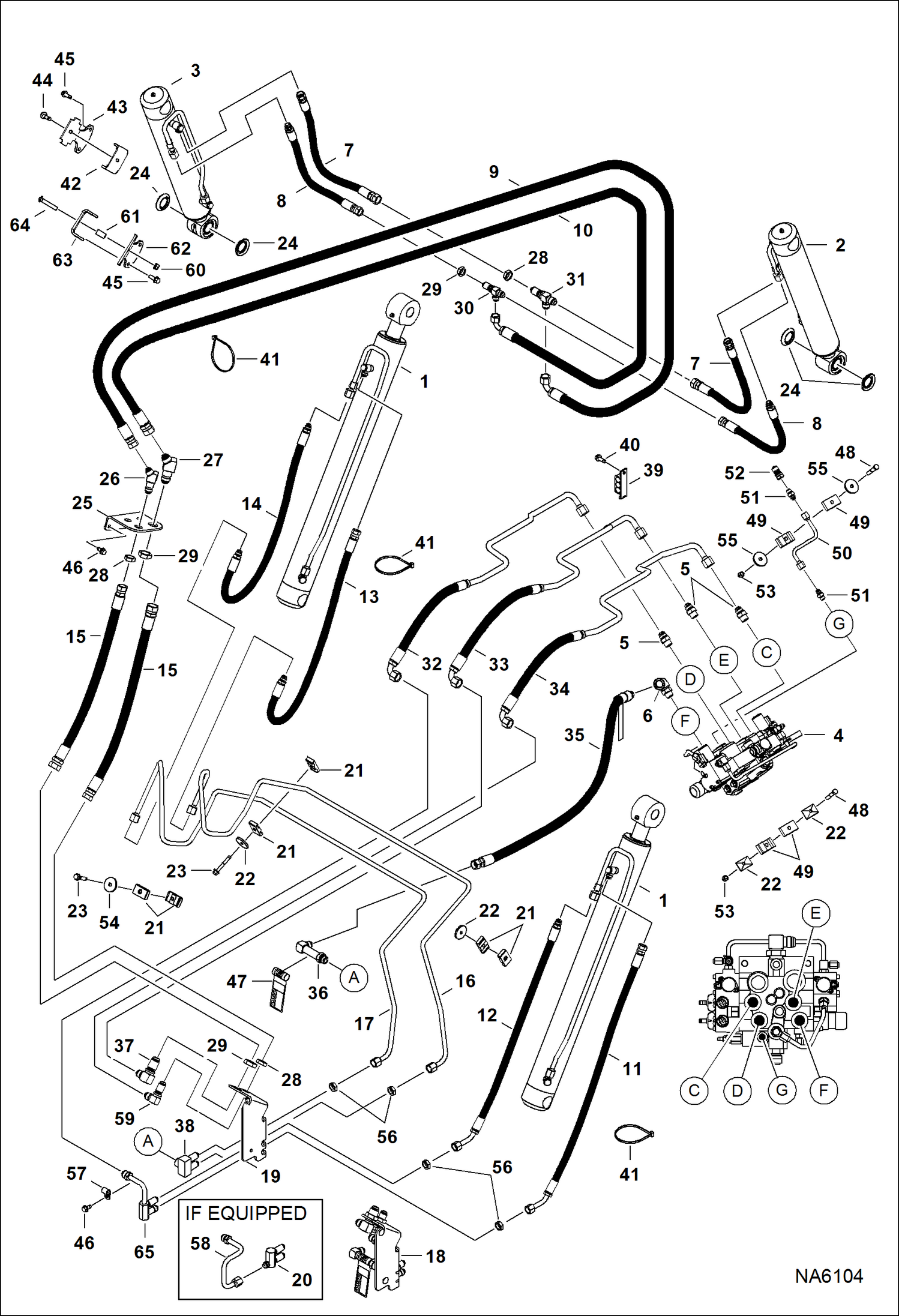

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/O BPV Junction Block) HYDRAULIC SYSTEM

1

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA1413

2

CYLINDER, TILT See Illustration TILT CYLINDER/ NA6008 - RH

3

CYLINDER, TILT See Illustration TILT CYLINDER/ NA6007 - LH

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, SJC

5

15KB1010

FITTING, HYD CONNECTOR

6

7109623

ELBOW

6

79K10

O RING 10

7

7153006

HOSE, HYD

8

7153008

HOSE, HYD

9

7155180

HOSE, HYD

10

7155391

HOSE, HYD

11

7198176

HOSE, HYD

12

7155830

HOSE, HYD

13

7204727

HOSE, HYD

14

7198281

HOSE, HYD

15

7156319

HOSE, HYD

16

7198225

TUBELINE, HYD

17

7198226

TUBELINE, HYD

18

7204131

VALVE, LEVEL SELF NO Ref. 5, 28, 29, 36-38, 46 & 56-60

19

7232934

BRACKET, JUNCTION Was 7203491 - C

20

7203489

FITTING, HYD CONNECTOR

21

6701892

CLAMP

22

6652521

PLATE

23

84G3728

BOLT

24

6689112

SEAL

25

7156362

MOUNT, BLKHD

26

46K7

ELBOW

27

46K8

ELBOW

28

86F7

LOCK NUT

29

86F8

NUT 5

30

91K6

TEE

31

91K7

FITTING

32

7152003

HOSE, HYD

33

7152004

HOSE, HYD

34

7152005

HOSE, HYD

35

7168336

HOSE, HYD available only as an assembly W/one danger decal installed near the male threaded end of the hose

35

7170355

DECAL, DANGER

36

7183605

KIT, FITTING W/DECAL W/Ref. 47 - this elbow must always display the danger decal

36

79K10

O RING 10

37

7193758

FITTING, HYD ELBOW

38

7203490

FITTING, HYD CONNECTOR

39

7157358

CLAMP

40

84G3716

SCREW 5

41

6624289

STRAP, TIE

42

CLAMP, HOSE NLA - Order Ref. 60-64 Was 7161042 - A

43

CLAMP, HOSE NLA - Order Ref. 60-64 Was 7161043 - A

44

84G3732

BOLT - B

45

84G3716

SCREW 5

46

84G3716

SCREW 5 Was 84G3712 - B

47

7170355

DECAL, DANGER

48

17C632

BOLT 5

49

7183298

CLAMP

50

7182882

TUBELINE, HYD

51

15KB0606

FITTING, HYD CONNECTOR

51

79K6

O RING 10

52

6684125

COUPLER

53

85D6

NUT, 5

54

872229

WASHER 0.19'' thick - 44.5 mm (1.75'') OD

55

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

56

86F6

NUT

57

30H31

CLAMP 10

58

7203506

TUBELINE, HYD

59

88F7

ELBOW

60

89D6

NUT

61

7199872

SPACER, TUBE

62

7199814

CLAMP, HOSE

63

7199815

CLAMP, HOSE

64

37C636

BOLT Was 7199946 - B
