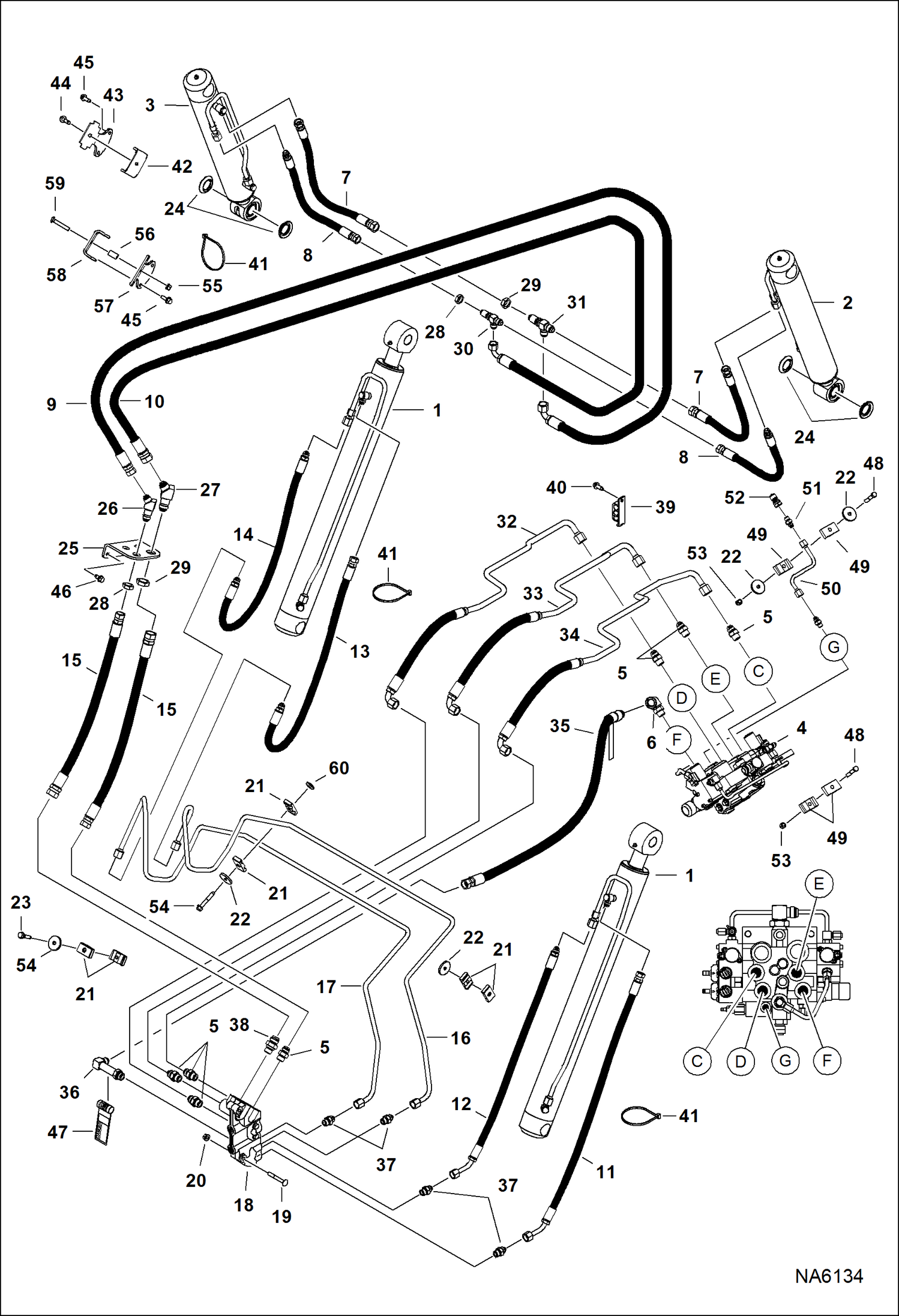

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/BPV Junction Block) (S/N A3NV13577 & Above, A3NW11398 & Above) HYDRAULIC SYSTEM

1

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA6138

2

CYLINDER, TILT See Illustration TILT CYLINDER/ NA6008 - RH

3

CYLINDER, TILT See Illustration TILT CYLINDER/ NA6007 - LH

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, SJC

5

15KB1010

FITTING, HYD CONNECTOR

5

79K10

O RING 10

6

7109623

ELBOW

6

79K10

O RING 10

7

7153006

HOSE, HYD

8

7153008

HOSE, HYD

9

7155180

HOSE, HYD

10

7155391

HOSE, HYD

11

7198176

HOSE, HYD

12

7155830

HOSE, HYD

13

7198280

HOSE, HYD 901,7 mm (35.5'') long

13

7204727

HOSE, HYD 641,4 mm (25.25'') long

14

7198281

HOSE, HYD

15

7156319

HOSE, HYD

16

7198225

TUBELINE, HYD

17

7198226

TUBELINE, HYD

18

7001921

BLOCK, JUNCTION

19

37C644

BOLT

20

83D6

NUT 5

21

6701892

CLAMP

22

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

23

84G3728

BOLT

24

6689112

SEAL

25

7156362

MOUNT, BLKHD

26

46K7

ELBOW

27

46K8

ELBOW

28

86F7

LOCK NUT

29

86F8

NUT 5

30

91K6

TEE

31

91K7

FITTING

32

7152003

HOSE, HYD

33

7152004

HOSE, HYD

34

7152005

HOSE, HYD

35

7168336

HOSE, HYD available only as an assembly W/one danger decal installed near the male threaded end of the hose

35

7170355

DECAL, DANGER

36

7183605

KIT, FITTING W/DECAL W/Ref. 47 - this elbow must always display the danger decal - Was 7154528 - D

36

79K10

O RING 10

37

15KB0808

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

15KB1012

FITTING, HYD CONNECTOR

38

79K12

O RING 10

39

7157358

CLAMP

40

84G3716

SCREW 5

41

6624289

STRAP, TIE

42

CLAMP, HOSE NLA - Order Ref. 55-59 Was 7161042 - A

43

CLAMP, HOSE NLA - Order Ref. 55-59 Was 7161043 - A

44

84G3732

BOLT

45

35C616

BOLT 5

46

84G3716

SCREW 5 Was 84G3712 - B

47

7170355

DECAL, DANGER

48

17C632

BOLT 5

49

7183298

CLAMP

50

7182882

TUBELINE, HYD

51

15KB0606

FITTING, HYD CONNECTOR

51

79K6

O RING 10

52

6684125

COUPLER

53

85D6

NUT, 5

54

872229

WASHER 0.19'' thick - 44.5 mm (1.75'') OD

55

89D6

NUT

56

7199872

SPACER, TUBE

57

7199814

CLAMP, HOSE

58

7199815

CLAMP, HOSE

59

37C636

BOLT Was 7199946 - B

60

25E18

WASHER
