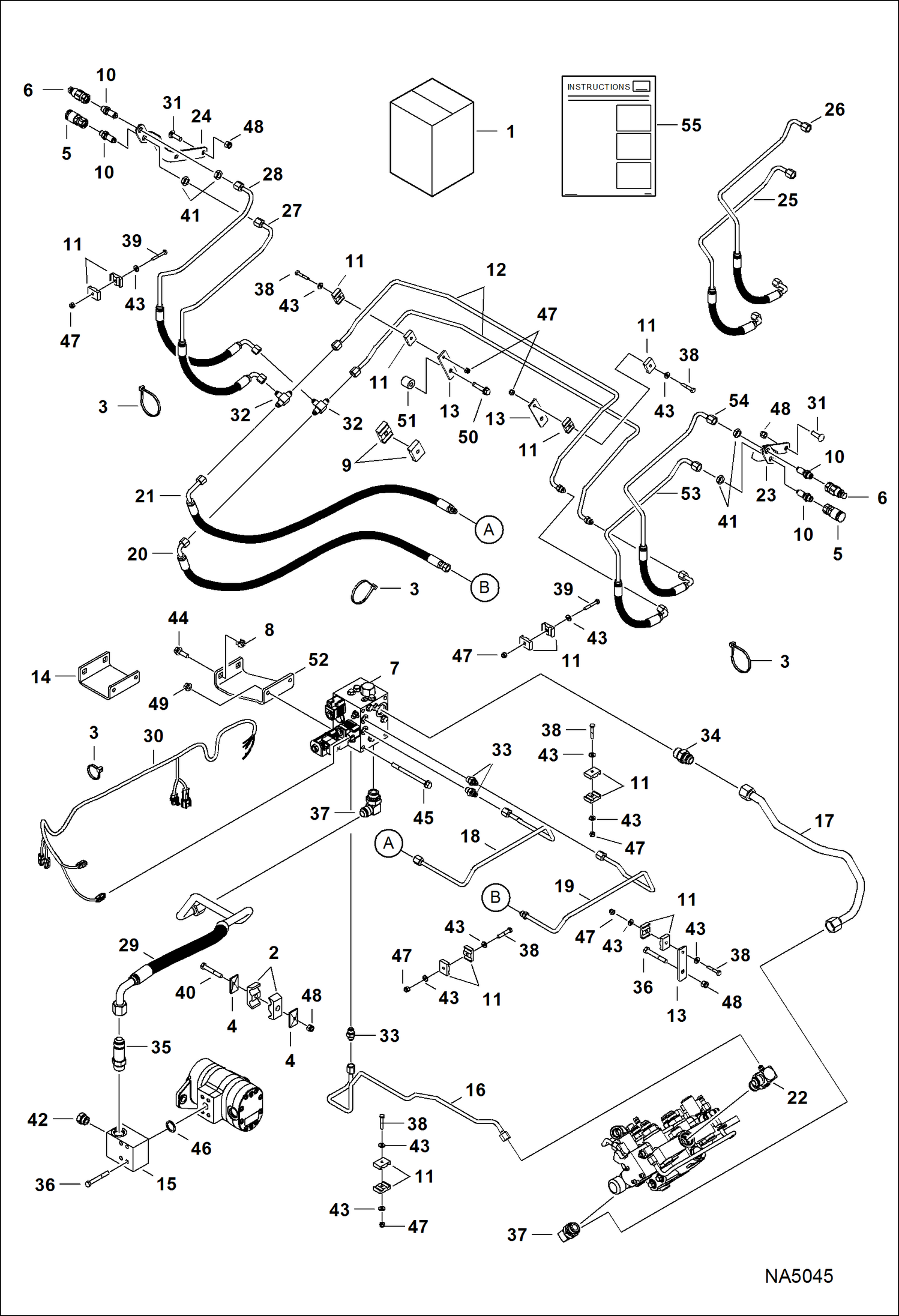

Запчасти Bobcat S-Series REAR AUXILIARY (Kit) ACCESSORIES & OPTIONS

1

7184621

KIT, AUX REAR Ref. 2-13, 15-24, 27-50, 52-55

2

6592506

CLAMP

3

6624289

STRAP, TIE

4

6652521

PLATE

5

6667803

COUPLER, FF FEMALE

6

6667804

COUPLER, FF MALE

7

6685624

VALVE, AUX REAR See Illustration REAR AUXILIARY VALVE/ MS2255

8

6685663

NUT, RETAINING

9

7198236

SPACER, TUBE

10

6716089

CONNECTOR

10

79K6

O RING 10

11

6578870

CLAMP

12

7169741

TUBELINE, HYD

13

7170354

ADAPTER

14

MOUNT, VALVE NLA - Order Ref. 52 - Was 7170537 - A

15

7226207

MANIFOLD, OUTLET PUMP Was 7029565 - A

16

7175643

TUBELINE, HYD

17

7176078

TUBELINE, HYD

18

7177102

TUBELINE, HYD

19

7177103

TUBELINE, HYD

20

7177104

HOSE, HYD

21

7177105

HOSE, HYD

22

7178841

TEE

22

79K16

O RING 10

23

7186827

MOUNT, BULKHEAD

24

7186828

MOUNT, BULKHEAD

25

7186835

HOSE, HYD 241,3 mm (9.5'') long

26

7186836

HOSE, HYD 292 mm (11.5'') long

27

7202688

HOSE, HYD Was 7186837 - A

28

7202689

HOSE, HYD Was 7186838 - A

29

7189310

HOSE, HYD

30

7201414

HARNESS, AUX REAR Was 7191339 - A

31

10C620

BOLT

32

10K5

TEE

33

15KB0606

FITTING, HYD CONNECTOR Was 15KB606 - A

33

79K6

O RING 10

34

15KB1212

FITTING, HYD CONNECTOR

34

79K12

O RING 10

35

16KB1212

FITTING, HYD CONNECTOR

35

79K12

O RING 10

36

17C644

BOLT

37

17KB1212

FITTING, HYD ELBOW

37

79K12

O RING 10

38

17C424

BOLT

39

17C428

BOLT

40

17C640

BOLT 5

41

86F5

NUT

42

24K6

FITTING Was 47K7 - B

42

79K10

O RING 10

43

25E13

WASHER 5

44

35C620

BOLT 5

45

31C680

BOLT Was 17C680 - B

46

55K214

O-RING

47

59D4

NUT 5

48

59D6

NUT

49

83D6

NUT 5

50

84G3728

BOLT

51

6701892

CLAMP not in kit

52

7203568

MOUNT, VALVE 154,2 mm (6.07'') long

52

7228561

MOUNT, VALVE 166,9 mm (6.57'') long

53

7204328

HOSE, HYD 316 mm (12.44'') hose length

54

7204327

HOSE, HYD 354,3 mm (13.95'') hose length

55

6987299

INSTRUCTIONS
