Запчасти Bobcat S-Series POWER BOB-TACH (Plumbing Kit) (S/N A3NV12445 & Above, A3NW11130 & Above) ACCESSORIES & OPTIONS

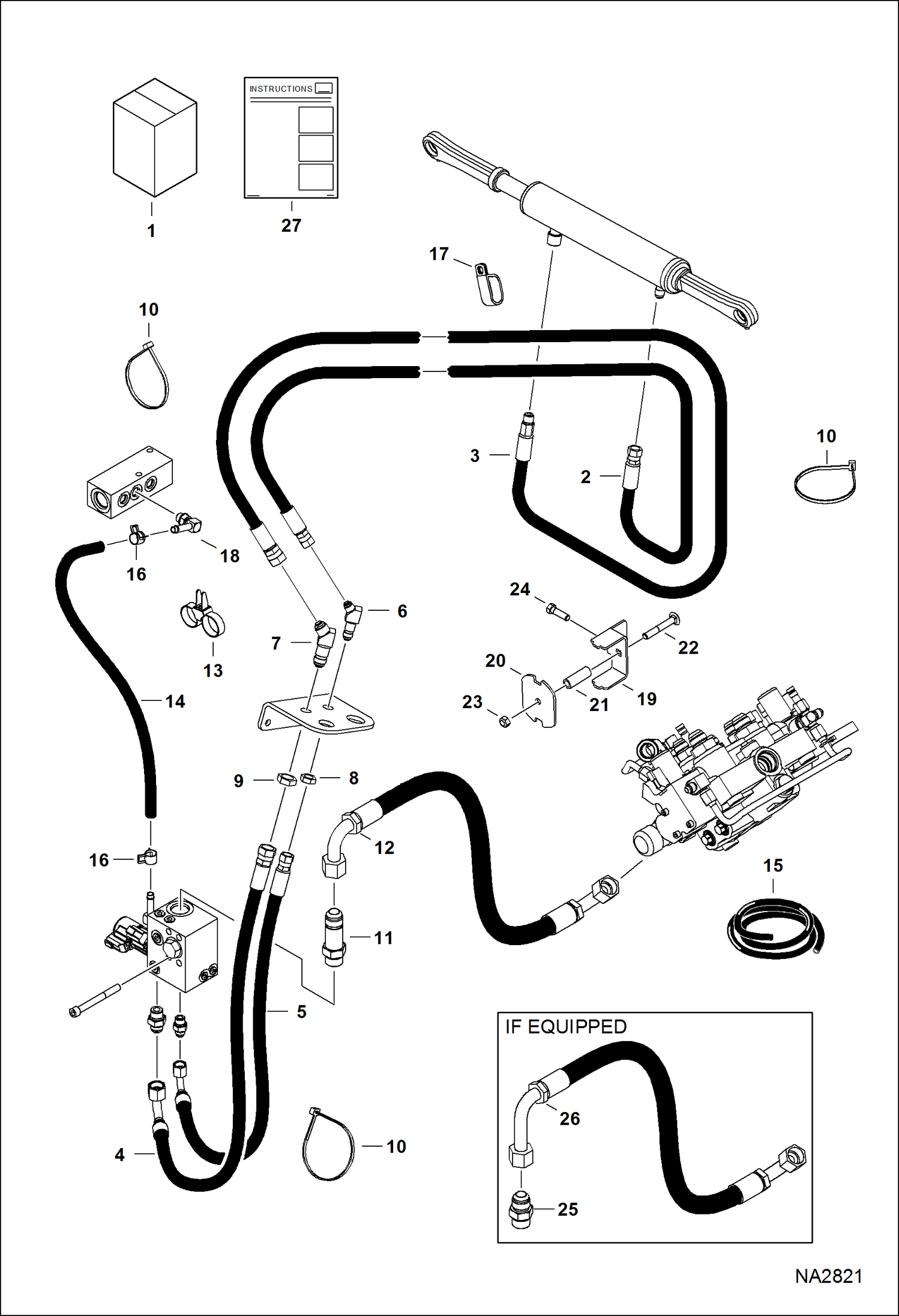

Схема запчастей Bobcat S-Series - POWER BOB-TACH (Plumbing Kit) (S/N A3NV12445 & Above, A3NW11130 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7192254

KIT, PLUMBING POWER BOB-TACH Ref. 2-18

2

7235458

HOSE, HYD Was 7153018 - A

3

7155834

HOSE, HYD

4

7184969

HOSE, HYD

5

7184970

HOSE, HYD

6

46K5

ELBOW

7

46K6

ELBOW

8

86F5

NUT

9

86F6

NUT

10

6624289

STRAP, TIE

11

15KB1212

FITTING, HYD CONNECTOR

12

7219834

HOSE, HYD Was 7172234 - A

13

6678668

STRAP, DUAL TIE

14

HOSE NLA - 29.5'' (749,3 mm) - Order Ref. 15

14

HOSE NLA - 787,4 mm (31'') lomg - Order Ref. 15

15

6586251

HOSE bulk - sold per foot

16

5HM15

CLAMP

17

31H42

CLIP

18

6989741

INSTRUCTIONS - not in kit - part of Power Bob-Tach kit

Выбрано товаров: 19
