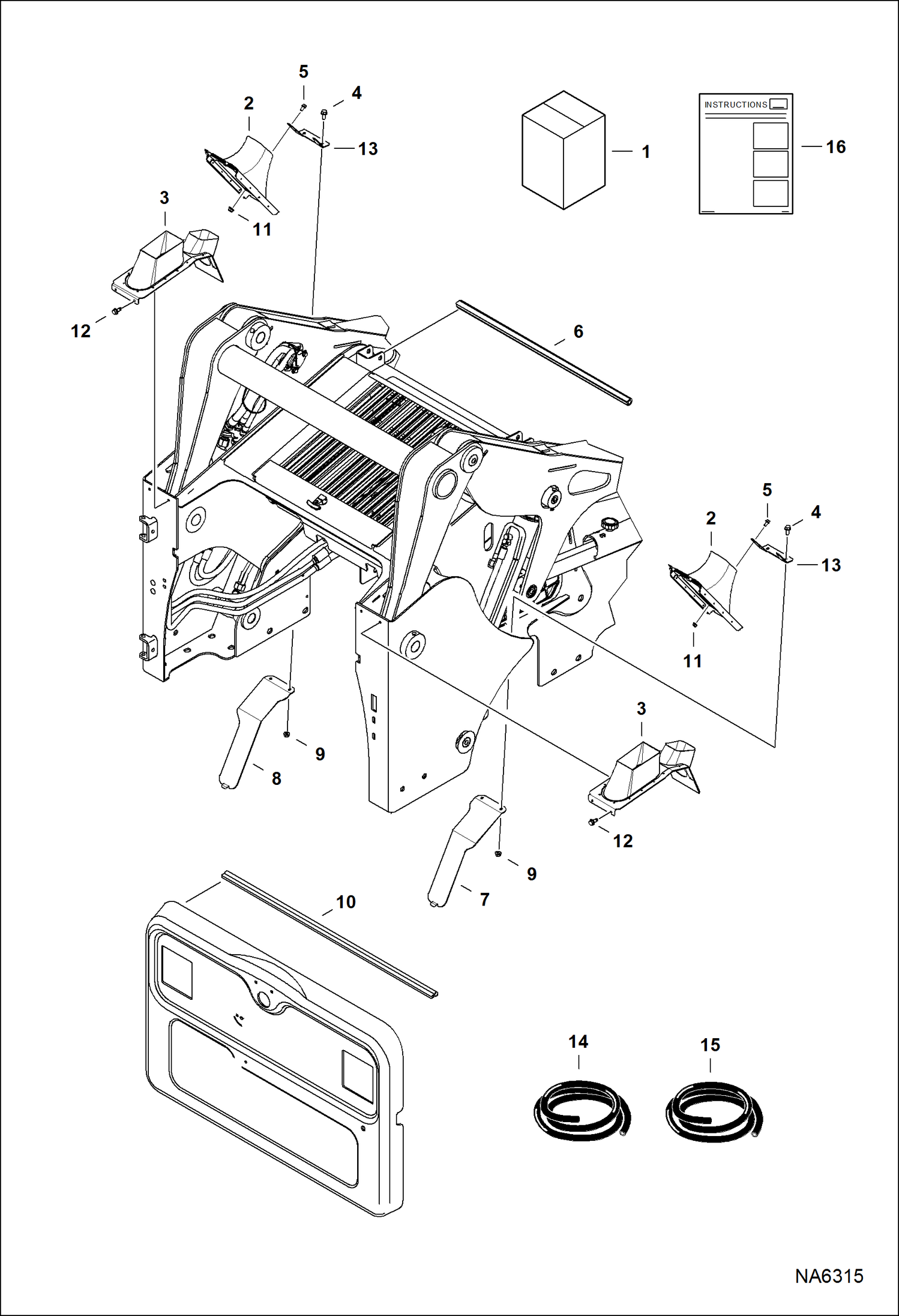

Запчасти Bobcat S-Series ENGINE COMPARTMENT SEAL KIT ACCESSORIES & OPTIONS

1

7209981

KIT, ENG COMP SEAL

2

7206204

SEAL, COVER lower

3

7206203

SEAL, COVER upper

4

31C512

BOLT

5

31C408

SCREW

6

SEAL, CAB NLA - 889mm (35 in) long - order Ref. 14

7

7206179

COVER, RH

8

7206180

COVER, LH

9

97D5

NUT

10

SEAL, REAR DOOR NLA - 1575mm (62 in) long - Order Ref. 15

11

97D4

NUT

12

84G3112

BOLT 5

13

7206191

BRACE

14

7188375

SEAL, BULK bulk - sold per foot

15

6675410

SEAL bulk - sold per foot

16

6990324

INSTRUCTIONS
