Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY (Rear Lights & Back-up Alarm) ELECTRICAL SYSTEM

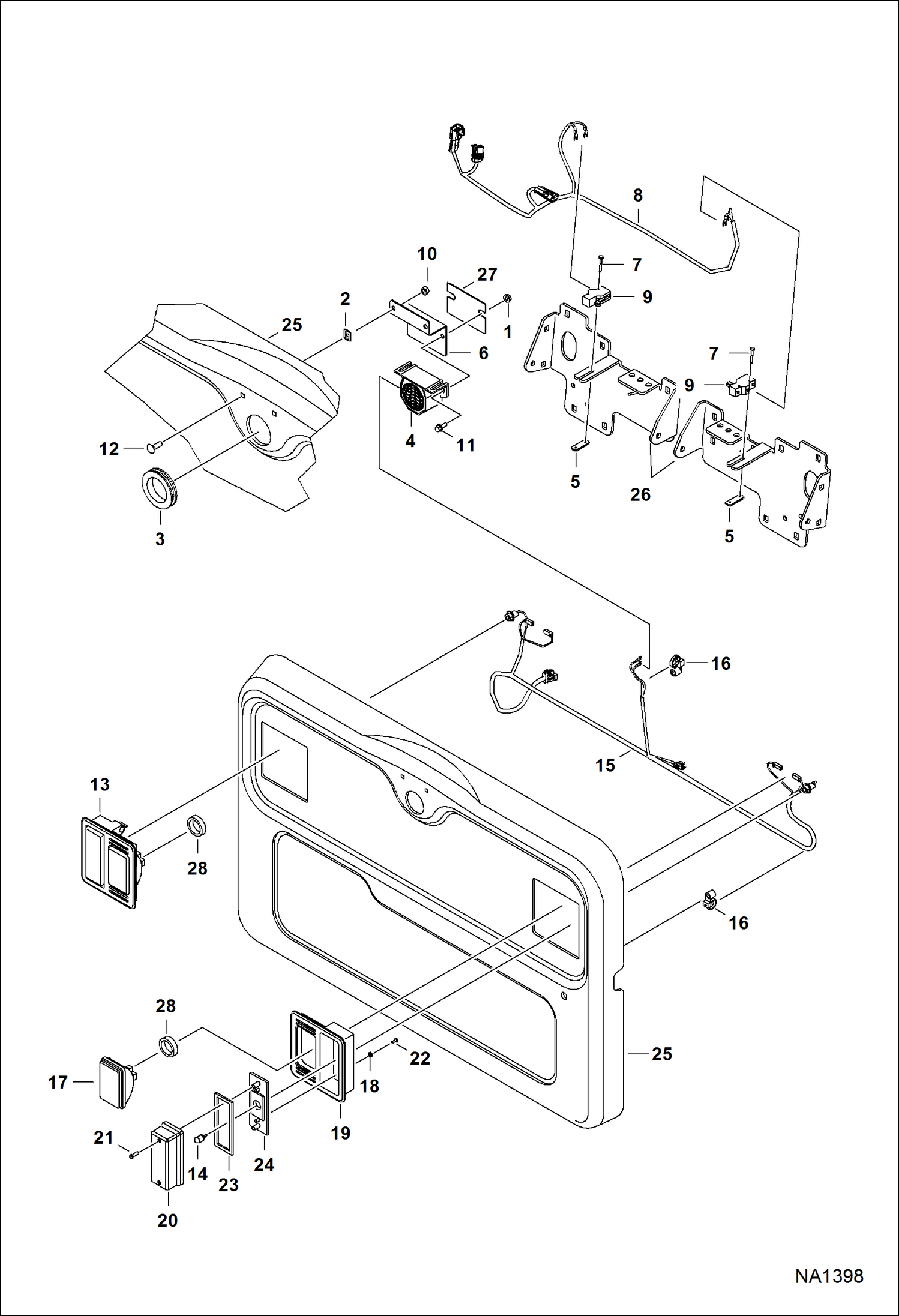

Схема запчастей Bobcat S-Series - ENGINE ELECTRICAL CIRCUITRY (Rear Lights & Back-up Alarm) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

97D4

NUT

2

774220

NUT

3

6577545

GROMMET

4

6651512

ALARM, BACK-UP

4

6737189

DECAL, WARNING backup alarm

5

6702593

SPACER

6

7189077

MOUNT Was 7167871 - B

7

84G1320

BOLT

8

7175017

HARNESS, ALARM BACK-UP

9

6646781

SWITCH

10

57D5

NUT

11

35C410

BOLT 5

12

37C516

BOLT

13

6670284

LIGHT ASSY

13

7104670

LIGHT rear - RH - EMEA

14

6649481

LIGHT, WEDGE BASE

15

7217484

HARNESS, REAR DOOR Was 7175271

15

7217483

HARNESS, REAR DOOR European - Was 7175287

16

7002988

TIE, STUD MOUNT

17

6661353

LIGHT ASSY W/bulb - white

17

898731

1156 BULB

18

6672272

WASHER

19

6672279

MOUNT, LIGHT RUBBER

20

6672276

LENS, LIGHT RED

21

6672274

SCREW

22

6672273

SCREW

23

6672275

GASKET

24

6672277

BRACKET

25

REAR DOOR See Illustration REAR DOOR/ NA1001

26

MOUNT See Illustration HAND CONTROLS/ NA1212

27

7191385

SHIELD, ALARM

Выбрано товаров: 31
