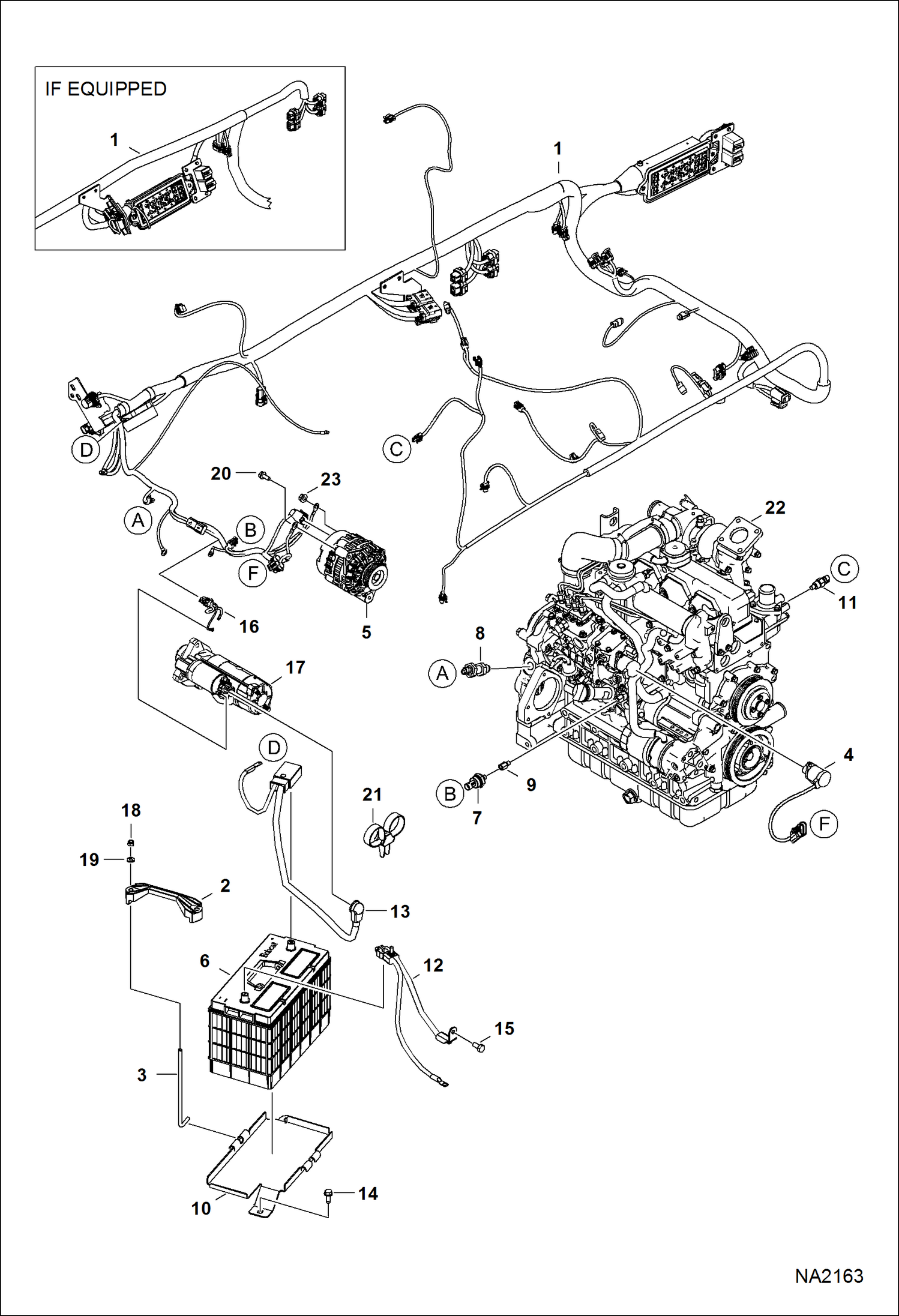

Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY (Engine Sensors, Battery, Alt & Starter) ELECTRICAL SYSTEM

1

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA2163

2

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA2960

3

6569203

CLAMP

4

6576280

BOLT

5

7000769

SOLENOID, SHUTOFF FUEL W/ 240 mm (9.45'') lead

6

ALTERNATOR See Illustration ALTERNATOR/ B22386

7

6665427

BATTERY, DRY 950 AMP

8

6697920

SENSOR, PRESS OIL ENG

9

6693921

SENSOR, RPM

10

7102451

FITTING

11

7159352

PAN, BATTERY

12

6718414

SENDER, TEMP ENG

13

7162966

CABLE, NEGATIVE

14

7162967

CABLE, POSITIVE

15

84G3712

BOLT 5

16

35C612

BOLT Was 5CM1020 - B

17

6733370

HARNESS

18

STARTER See Illustration STARTER/ B16488R

19

59D5

NUT 5

20

25E15

WASHER

21

45C620

BOLT

22

6678668

STRAP, DUAL TIE

23

ENGINE See Illustration ENGINE & GASKET KITS/ NA2401

24

43DM8

NUT
