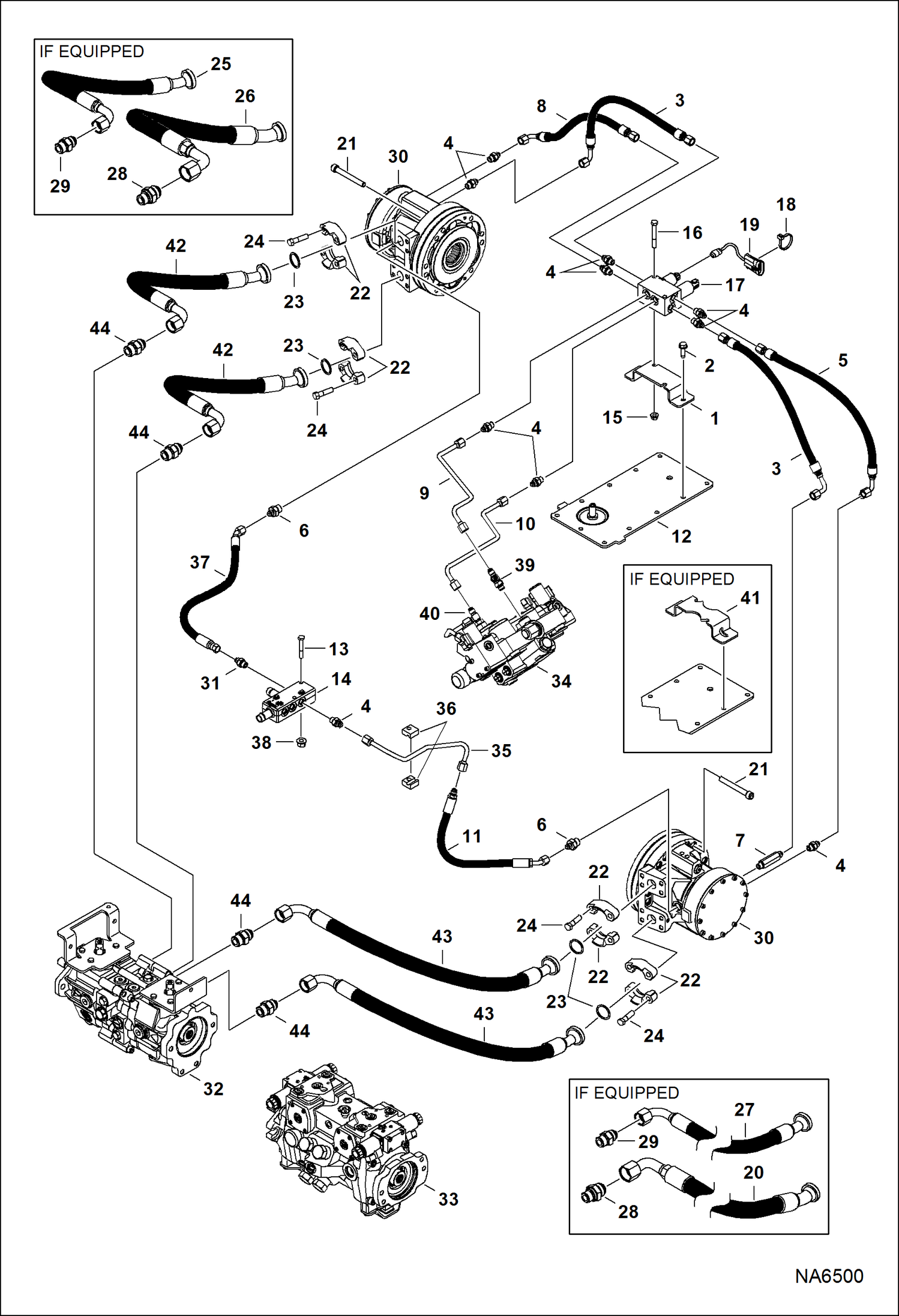

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (2-Speed Motor) (S/N A3NT14900 & Above , A3NU12252 & Above) HYDROSTATIC SYSTEM

1

7209306

MOUNT, VALVE

2

84G3720

BOLT

3

7235471

HOSE, HYD Was 7212574 - A

4

15KB0606

FITTING, HYD CONNECTOR

4

79K6

O RING 10

5

7235470

HOSE, HYD Was 7195410 - A

6

15KB0608

FITTING, HYD CONNECTOR

6

79K8

O RING 10

7

7169116

ADAPTER

7

79K6

O RING 10

8

7124956

HOSE, HYD

9

7212578

TUBELINE, HYD

10

7212579

TUBELINE, HYD

11

7176928

HOSE, HYD

12

7213128

COVER, BRAKE

13

17C540

BOLT

14

7201981

MANIFOLD, DRAIN CASE

15

55D6

NUT

16

17C644

BOLT

17

VALVE, 2-SPEED See Illustration 2-SPEED VALVE/ NA6501 NLA - Was 7211449 - A

18

6624289

STRAP, TIE

19

7159366

HARNESS, 2 SPEED RETURN

20

7193007

HOSE, HYD

21

6717806

BOLT

22

20J16

FLANGE

23

55K219

O'RING

24

17C728

BOLT

25

6692926

HOSE, HYD mega seal

26

7193006

HOSE, HYD

27

6692928

HOSE, HYD mega seal

28

15KB1612

FITTING, HYD CONNECTOR

28

79K12

O RING 10

29

15KB1212

FITTING, HYD CONNECTOR

29

79K12

O RING 10

30

7023316

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ NA6497

31

15KB0606

FITTING, HYD CONNECTOR

31

79K6

O RING 10

32

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC & ACS

33

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, AHC & SJC

35

7176929

TUBELINE, HYD

36

6727707

CLAMP

37

7235468

HOSE, HYD Was 7181582 - A

38

83D5

NUT 5

39

21KB0606

FTG HYD STRAIGHT TEE

39

79K6

O RING 10

40

7180987

FITTING, CROSS

40

79K6

O RING 10

41

MOUNT, VALVE NLA - Order Ref. 1 - Was 7225465 - D
