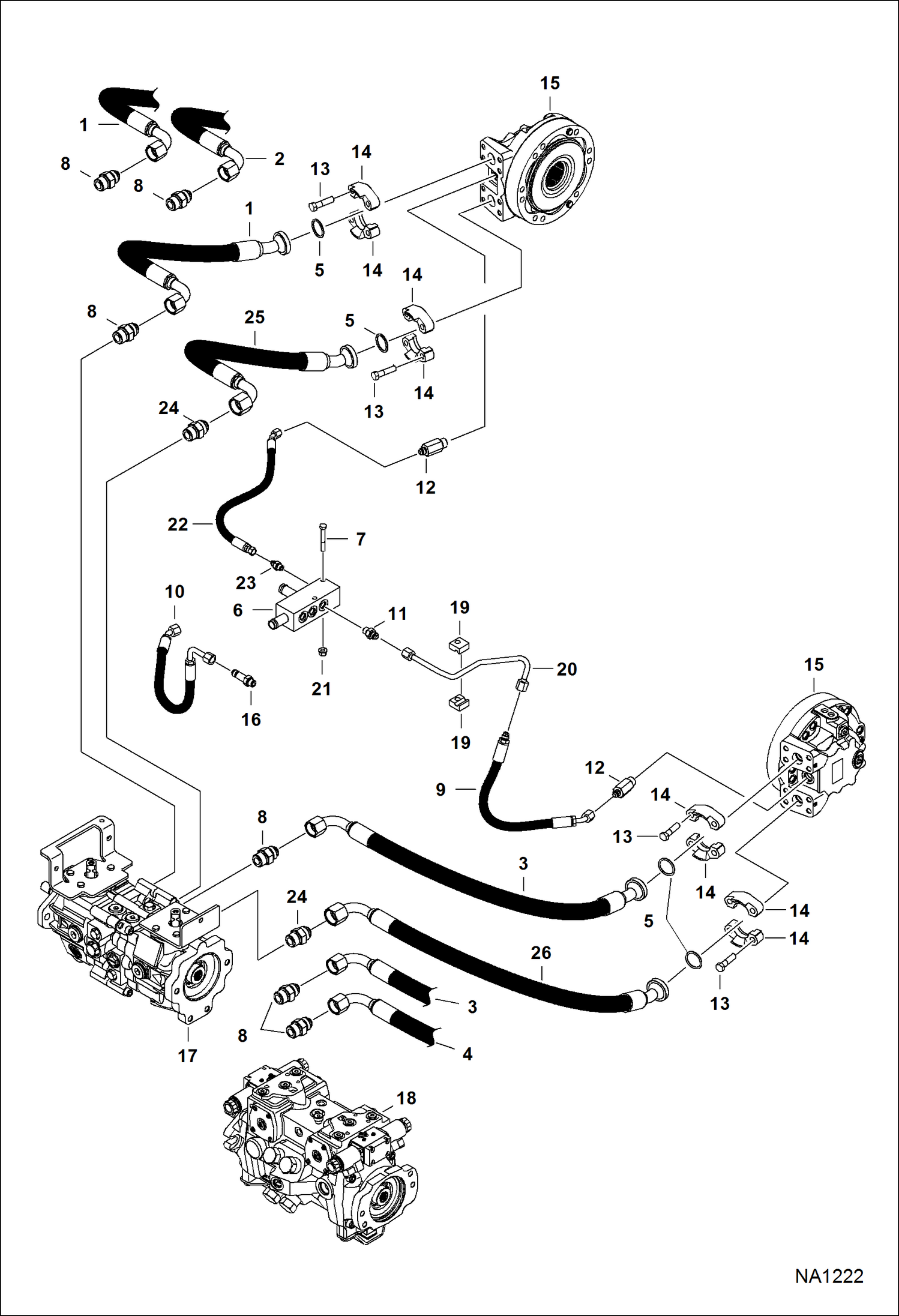

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Single Speed Motor) HYDROSTATIC SYSTEM

1

6692926

HOSE, HYD

2

HOSE, HYD NLA - Order Ref. 24 & 25 - Was 6692927 - A

3

6692928

HOSE, HYD

4

HOSE, HYD NLA - Order Ref. 24 & 26 - Was 6692929 - A

5

55K219

O'RING

6

7201981

MANIFOLD, DRAIN CASE Was 7178129 - A

7

17C540

BOLT

8

15KB1212

FITTING, HYD CONNECTOR

8

79K12

O RING 10

9

7176928

HOSE, HYD

10

HOSE, HYD NLA - Order Ref. 22 & 23 - Was 7176926 - A

11

15KB0606

FITTING, HYD CONNECTOR

11

79K6

O RING 10

12

7168927

ADAPTER

13

17C728

BOLT

14

20J16

FLANGE

15

7001046

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR/ MS2199

16

16KB0606

FTG HYD L CONNECTOR Use W/Ref. 10 hose - Was 16KB608 - B,D

16

79K6

O RING 10

17

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC & ACS

18

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

19

6727707

CLAMP

20

7176929

TUBELINE, HYD

21

83D5

NUT 5

22

7235459

HOSE, HYD Was 7159735 - A

23

15KB0606

FITTING, HYD CONNECTOR Use W/Ref. 22 hose

23

79K6

O RING 10

24

15KB1612

FITTING, HYD CONNECTOR

24

79K12

O RING 10

25

7193006

HOSE, HYD

26

7193007

HOSE, HYD
