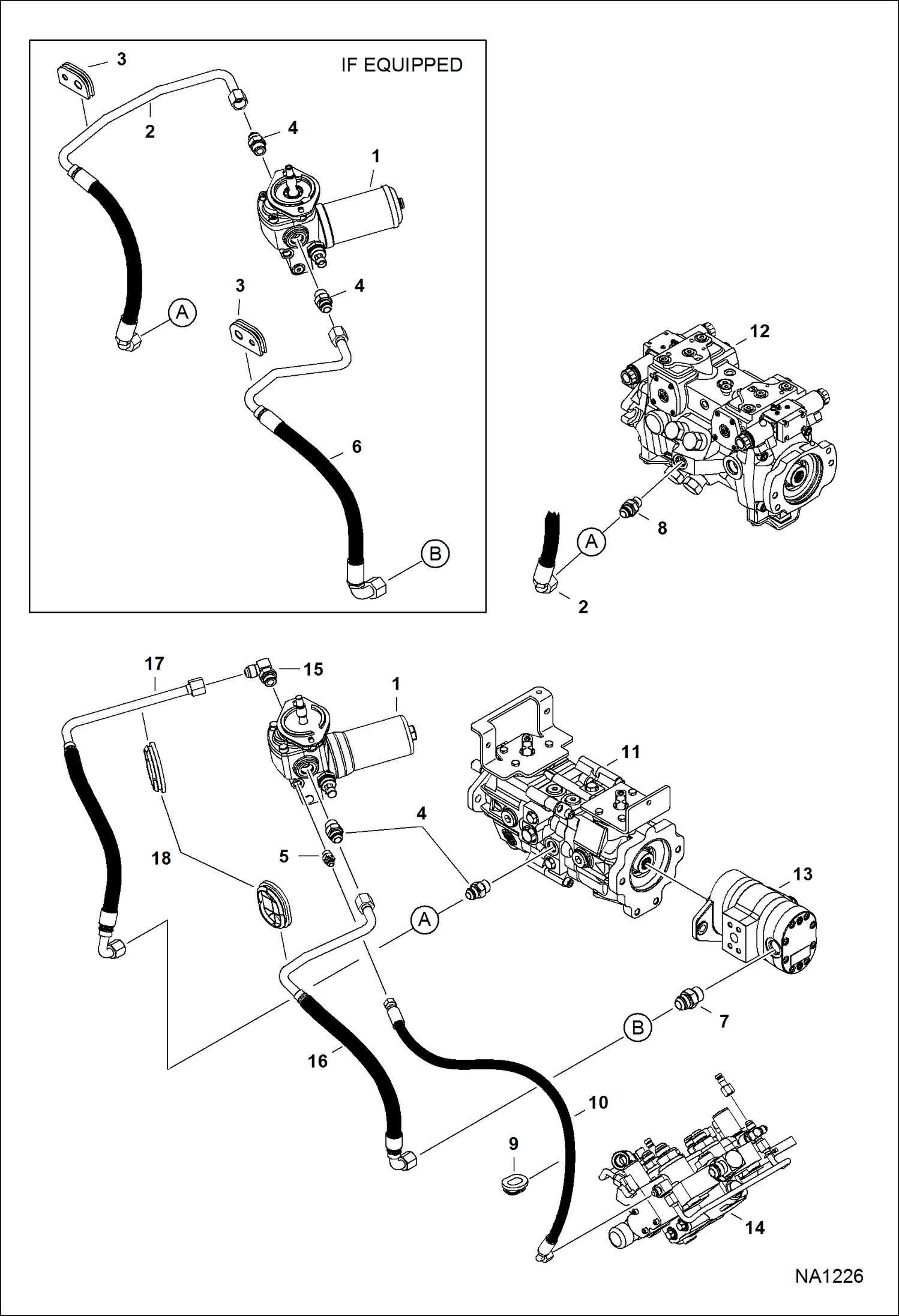

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Cooling Fan) HYDROSTATIC SYSTEM

1

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ MS2514

2

7167583

HOSE, HYD

3

7155070

GROMMET

4

15KB1010

FITTING, HYD CONNECTOR

4

79K10

O RING 10

5

15KB0606

FITTING, HYD CONNECTOR

5

79K6

O RING 10

6

7167582

HOSE, HYD

7

15KB1212

FITTING, HYD CONNECTOR

7

79K12

O RING 10

8

15KB1008

FITTING, HYD CONNECTOR

8

79K8

O RING 10

9

7002739

GROMMET

10

7164413

HOSE, HYD

11

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC, ACS

12

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

13

PUMP, GEAR See Illustration GEAR PUMP/ MS1454 - standard flow hydraulics

13

PUMP, GEAR See Illustration HIGH FLOW HYDRAULICS/ MS1456 - high flow hydraulics

14

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, AHC & SJC

14

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

15

17KB1010

FITTING, HYD ELBOW

16

7233062

HOSE, HYD

17

7231850

HOSE, HYD

18

7219416

GROMMET
