Запчасти Bobcat S-Series CONTROL PEDALS HYDRAULIC SYSTEM

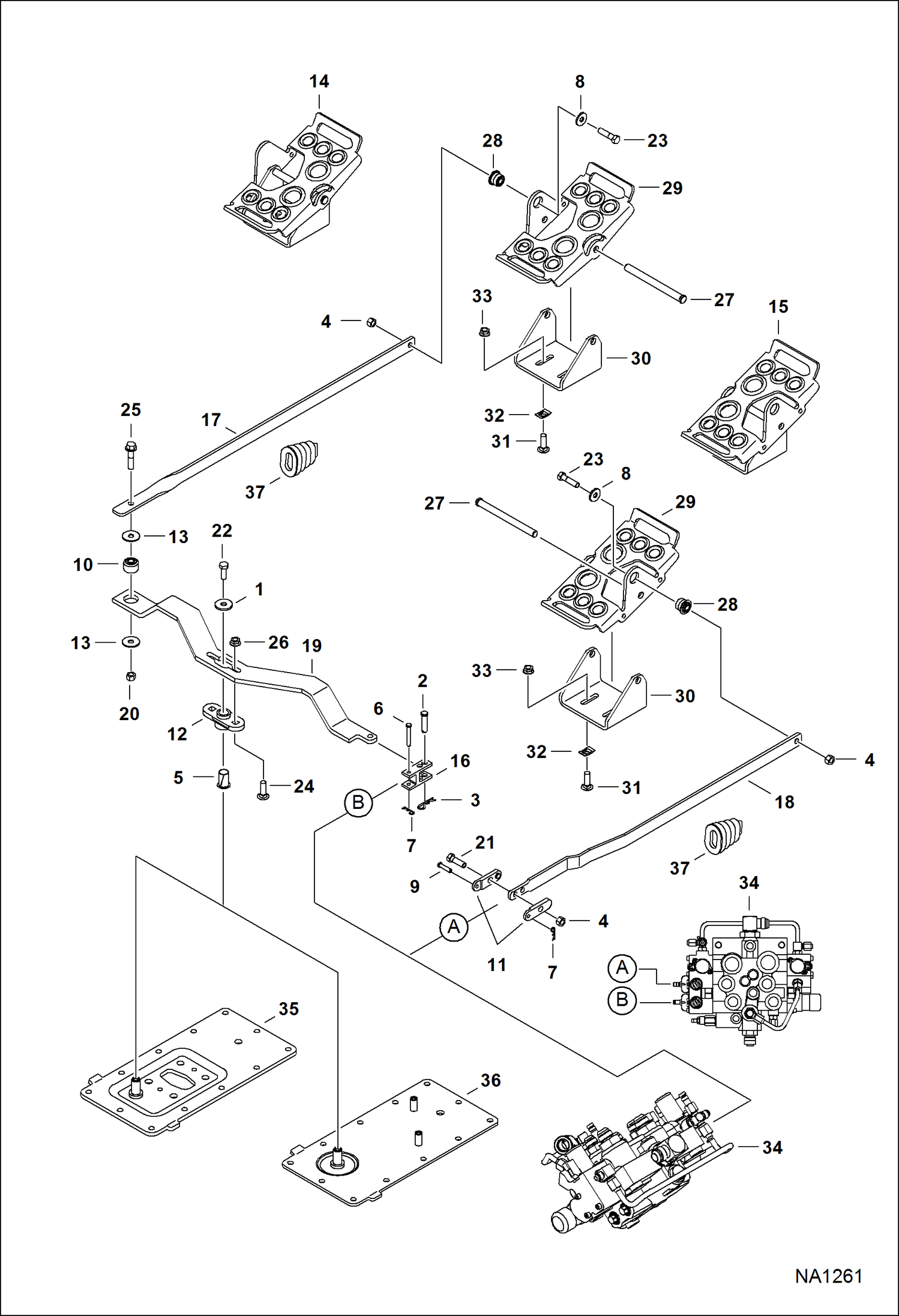

Схема запчастей Bobcat S-Series - CONTROL PEDALS HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6557831

WASHER

2

7191333

PIN, CLEVIS Was 7179279 - B

3

1306637

CLIP

4

95D6

NUT

5

6512026

BUSHING

6

7191334

PIN, CLEVIS Was 7178508 - B

7

6513495

COTTER PIN

8

6563914

WASHER

9

6564654

PIN

10

6685060

BUSHING, TORSION

11

6708009

LINK

12

6708043

BUSHING

13

6737388

WASHER

14

7151868

PEDAL ASSY LH - Ref. 27-30

15

7151871

PEDAL ASSY RH - Ref. 27-30

16

7191332

YOKE, FLANGE Was 7152501 - B

17

7153048

LINK, PEDAL

18

7153049

LINK, PEDAL

19

7153058

LINK, BELLCRANK

20

63D6

NUT

21

17C620

BOLT

22

17C616

BOLT 5

23

17C624

BOLT 5

24

37C620

BOLT

25

49C628

BOLT

26

53D6

NUT

27

PIN NLA - Order Ref. 14 or Ref. 15

28

6665701

BUSHING, PRESS FIT

29

PEDAL NLA - Order Ref. 14 or Ref. 15

30

7157611

MOUNT

31

37C620

BOLT

32

6684033

NUT

33

57D6

NUT 5

34

VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, SJC

34

VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

35

COVER See Illustration DISC BRAKE/ NA1005

36

COVER See Illustration TRANSMISSION COVERS/ NA1006

37

7153503

BOOT

Выбрано товаров: 38
