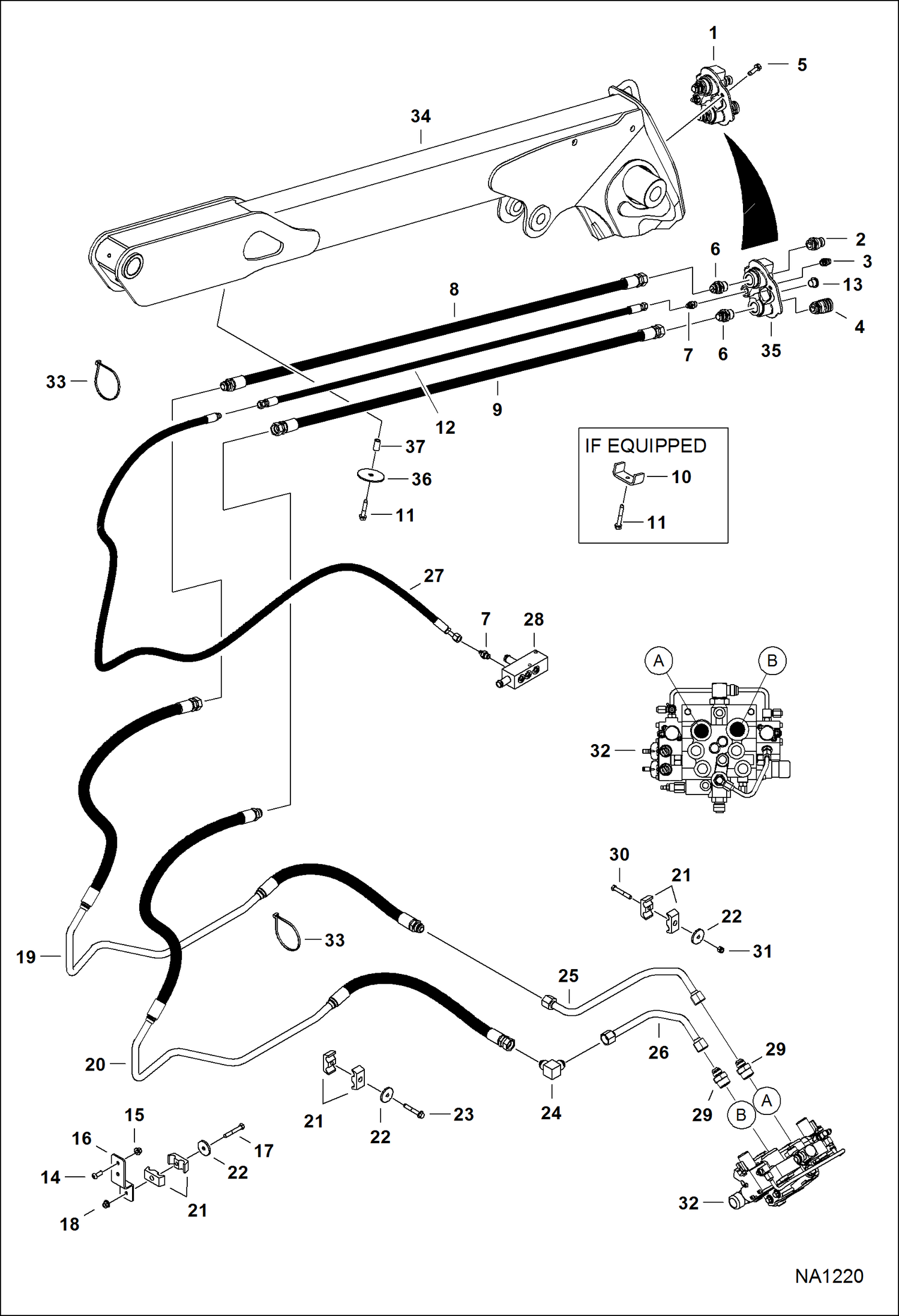

Запчасти Bobcat S-Series AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

7141939

BLOCK, COUPLER assy - Ref. 2-4, 6, 7 & 35

2

6679837

COUPLER male

2

6679841

SEAL blue - front

2

6680020

SEAL KIT (3) O-rings & (3) back-up washers

3

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

3

6679840

SEAL blue - front

4

6680018

COUPLER, KIT female

4

6680020

SEAL KIT (3) O-rings & (3) back-up washers

5

84G3716

SCREW 5 Was 84G3720 - B

6

6679836

ADAPTER W/spring

6

79K12

O RING 10

7

15KB0606

FITTING, HYD CONNECTOR

7

79K6

O RING 10

8

7171077

HOSE

9

7171003

HOSE

10

7157545

CLAMP

11

84G3732

BOLT Was 84G3740 - B

12

7171045

HOSE

13

6697942

PLUG, NYLON

14

10C616

BOLT 10 Was 53C616 - A

15

83D6

NUT 5

16

7175549

MOUNT, HOSE

17

17C644

BOLT Was 17C640 - B

18

83D6

NUT 5 Was 86D6 - D

19

7177816

HOSE, HYD

19

7225566

HOSE, HYD

20

7177817

HOSE, HYD

20

7225565

HOSE, HYD

21

6592506

CLAMP

22

872229

WASHER

23

84G3740

BOLT

24

77F8

ELBOW

25

7154522

TUBELINE

26

7154523

TUBELINE

27

7175556

HOSE, HYD

28

MANIFOLD, CASE DRAIN See Illustration HYDROSTATIC CIRCUITRY/ NA1225

29

15KB1216

FITTING, HYD CONNECTOR

29

79K16

O RING 10

30

31C640

BOLT

31

59D6

NUT

32

VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, SJC

32

VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

33

6624289

STRAP, TIE

34

ARM, LIFT ASSY See Illustration LIFT ARM & BOB-TACH/ NA1002

35

BLOCK NSS - Order Ref. 1
