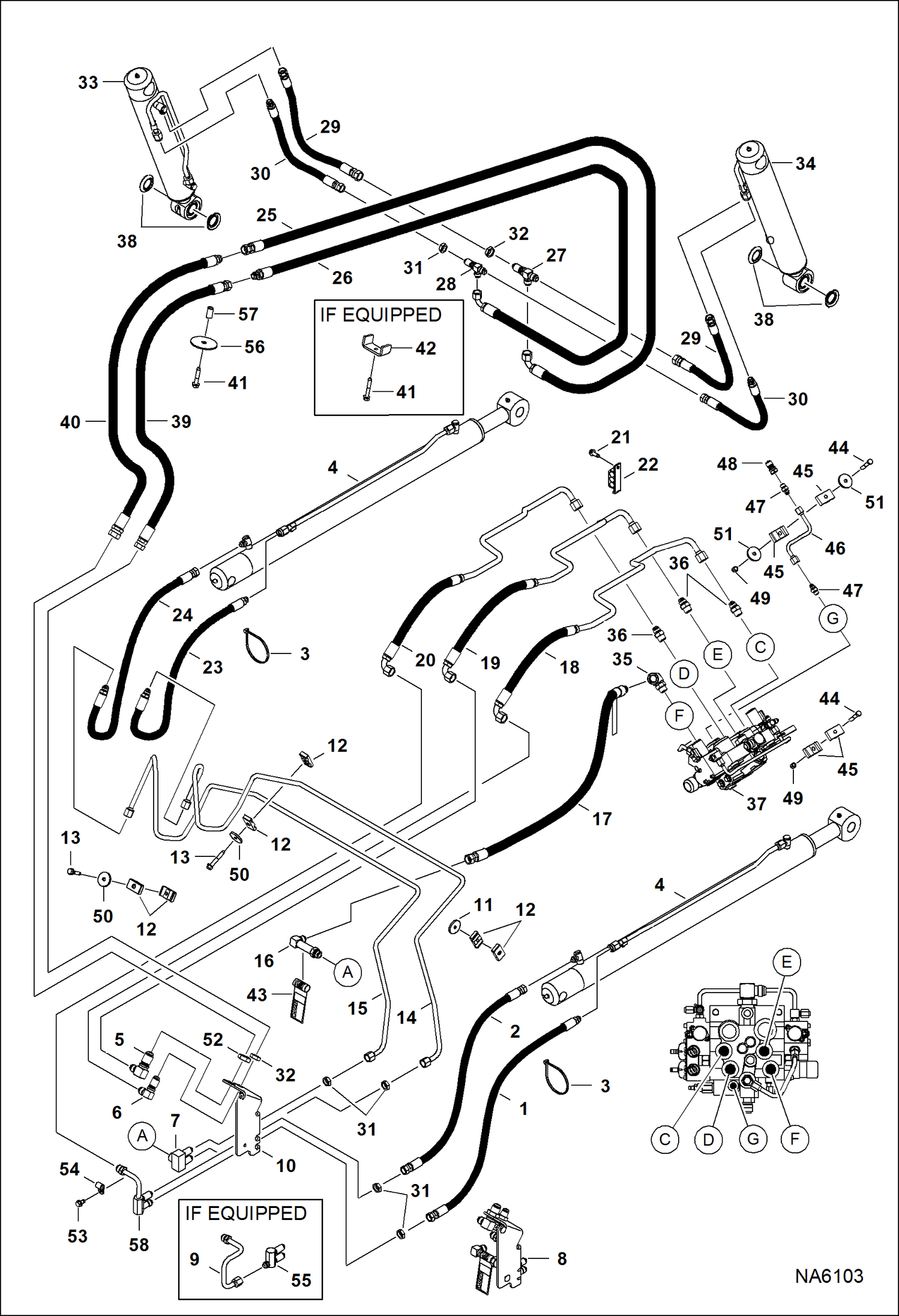

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/O BPV) HYDRAULIC SYSTEM

1

7154306

HOSE

2

7154305

HOSE

3

6624289

STRAP, TIE

4

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA1211

5

7193758

FITTING, HYD ELBOW

6

88F7

ELBOW

7

7203490

FITTING, HYD CONNECTOR

7

79K10

O RING 10

8

7204131

VALVE, LEVEL SELF NO Ref. 5-7, 16, 31, 32 & 52-57

9

7203506

TUBELINE, HYD

10

7232934

BRACKET, JUNCTION Was 7203491 - C

11

6652521

PLATE

12

6701892

CLAMP

13

84G3728

BOLT

14

7198225

TUBELINE, HYD lift

15

7198226

TUBELINE, HYD lift

16

7183605

KIT, FITTING W/DECAL W/Ref. 43 - this elbow must always display the danger decal

16

79K8

O RING 10

17

7168336

HOSE, HYD available only as an assembly W/one danger decal installed near the male threaded end of the hose

17

7170355

DECAL, DANGER

18

7152005

HOSE, HYD

19

7152004

HOSE, HYD

20

7152003

HOSE, HYD

21

84G3716

SCREW 5

22

7157358

CLAMP

23

7154308

HOSE

24

7154307

HOSE

25

7171054

HOSE

26

7171056

HOSE

27

91K7

FITTING

28

91K6

TEE

29

7153006

HOSE, HYD

30

7153008

HOSE, HYD

31

86F6

NUT

32

86F7

LOCK NUT

33

CYLINDER, TILT See Illustration TILT CYLINDER/ NA6007 - LH

34

CYLINDER, TILT See Illustration TILT CYLINDER/ NA6008 - RH

35

7109623

ELBOW

35

79K8

O RING 10

36

15KB1010

FITTING, HYD CONNECTOR

36

79K10

O RING 10

37

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

37

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, SJC

38

6689112

SEAL

39

7171057

HOSE

40

7171055

HOSE

41

84G3732

BOLT

42

6735796

CLAMP

43

7170355

DECAL, DANGER

44

17C632

BOLT 5

45

7183298

CLAMP

46

7182882

TUBELINE, HYD

47

15KB0606

FITTING, HYD CONNECTOR

48

6684125

COUPLER

49

85D6

NUT, 5

50

872229

WASHER 0.19'' thick - 44.5 mm (1.75'') OD

51

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

52

86F8

NUT 5

53

84G3712

BOLT 5

54

30H31

CLAMP 10

55

7203489

FITTING, HYD CONNECTOR
