Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/BPV Junction Block) (S/N A3NT11001 - 12656, A3NU11001 - 11159) HYDRAULIC SYSTEM

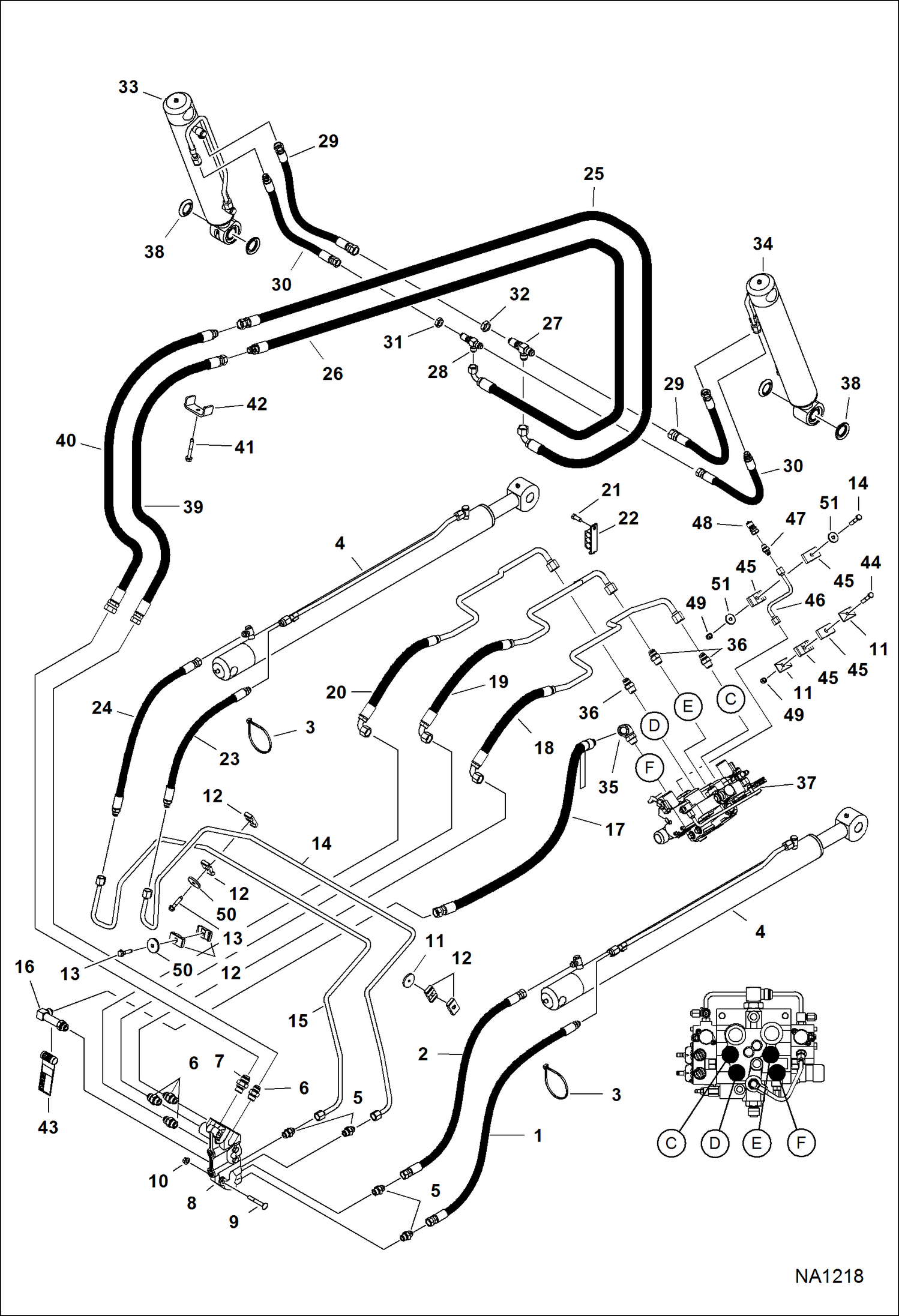

Схема запчастей Bobcat S-Series - HYDRAULIC CIRCUITRY (W/BPV Junction Block) (S/N A3NT11001 - 12656, A3NU11001 - 11159) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7154306

HOSE

2

7154305

HOSE

3

6624289

STRAP, TIE

4

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA1211

5

15KB0808

FITTING, HYD CONNECTOR

5

79K8

O RING 10

6

15KB1010

FITTING, HYD CONNECTOR

6

79K10

O RING 10

7

15KB1210

FITTING, HYD CONNECTOR

7

79K10

O RING 10

8

7001921

BLOCK, JUNCTION

9

37C644

BOLT

10

83D6

NUT 5

11

6652521

PLATE

12

6701892

CLAMP

13

84G3728

BOLT

14

7138172

TUBELINE lift

14

7187115

TUBELINE, HYD lift

15

7138173

TUBELINE lift

15

7187114

TUBELINE, HYD lift

16

7183605

KIT, FITTING W/DECAL W/Ref. 43 - this elbow must always display the danger decal W/Ref. 43 - this elbow must always display the danger decal - Was 7154528 - D

17

7168336

HOSE, HYD available only as an assembly W/one danger decal installed near the male threaded end of the hose

17

7170355

DECAL, DANGER

18

7152005

HOSE, HYD

19

7152004

HOSE, HYD

20

7152003

HOSE, HYD

21

84G3716

SCREW 5 Was 17C616 - B,D

22

7157358

CLAMP

23

7154308

HOSE 603,3 mm (23.75'') long

24

7154307

HOSE 450,8 mm (17.75'') long

25

7171054

HOSE

26

7171056

HOSE

27

91K7

FITTING

28

91K6

TEE

29

7153006

HOSE, HYD

30

7153008

HOSE, HYD

31

86F6

NUT

32

86F7

LOCK NUT

33

CYLINDER, TILT See Illustration TILT CYLINDER/ NA1209 - LH

34

CYLINDER, TILT See Illustration TILT CYLINDER/ NA1210 - RH

35

7109623

ELBOW

36

15KB1010

FITTING, HYD CONNECTOR

36

79K10

O RING 10

37

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

37

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, AHC & SJC

38

6689112

SEAL

39

7171057

HOSE

40

7171055

HOSE

41

84G3732

BOLT Was 84G3740 - B

42

6735796

CLAMP

43

7170355

DECAL, DANGER

44

17C632

BOLT 5

45

7183298

CLAMP

46

7182882

TUBELINE, HYD

47

15KB0606

FITTING, HYD CONNECTOR

47

79K6

O RING 10

48

6684125

COUPLER

49

85D6

NUT, 5

50

872229

WASHER 0.19'' thick - 44.5 mm (1.75'') OD

51

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD
