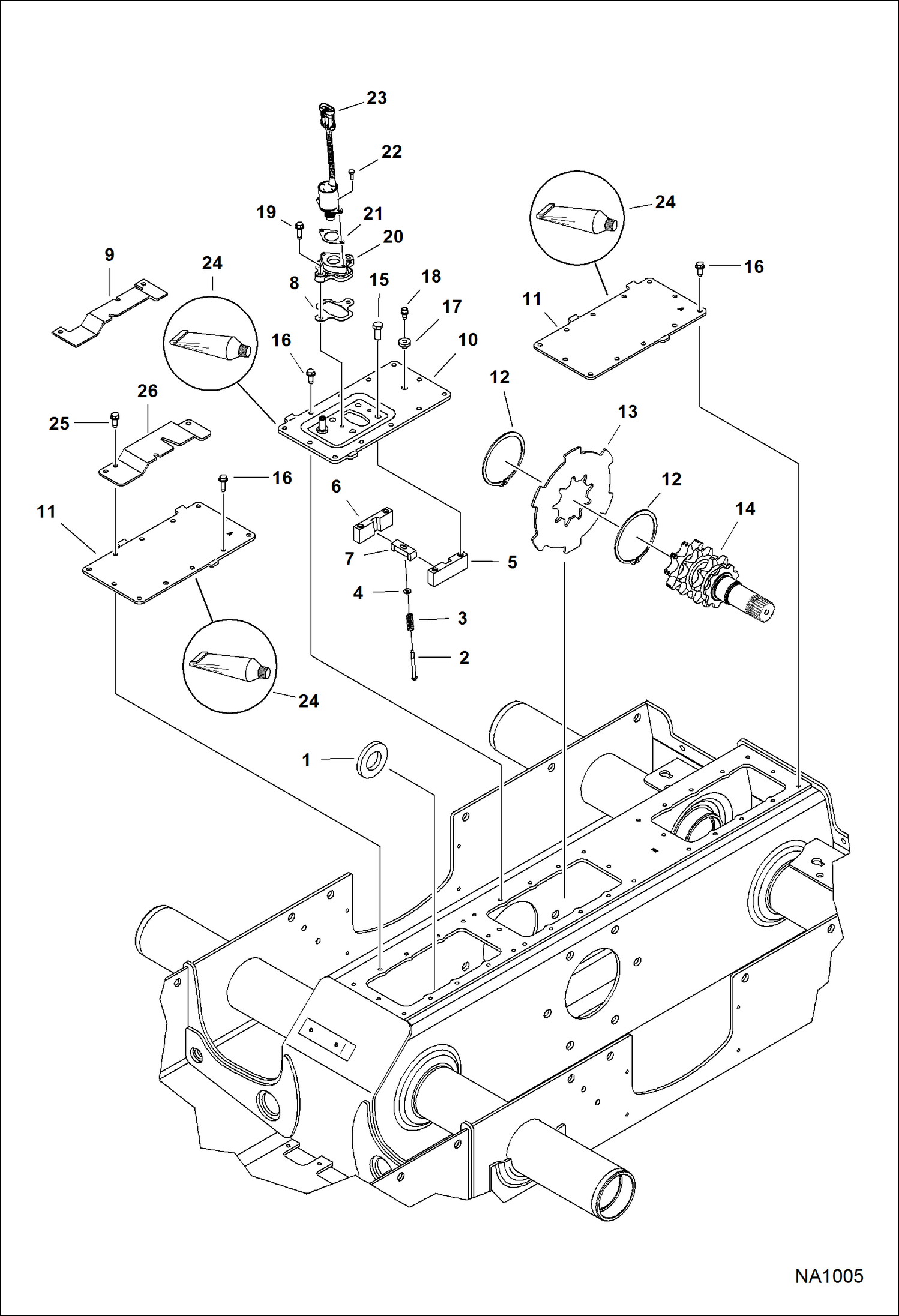

Запчасти Bobcat S-Series DISC BRAKE (Single Speed Motor) DRIVE TRAIN

1

6680055

MAGNET for SJC

2

6708267

BOLT

3

6708018

SPRING

4

25E13

WASHER 5

5

6719057

BLOCK guide - RH

6

6719056

BLOCK guide - LH

7

6714278

WEDGE, LOCK TRACTION disc brake

8

6708016

GASKET

9

MOUNT, MANIFOLD DRAIN NLA - Order Ref. 26 - Was 7157080 - A

10

7161527

COVER, BRAKE ASSY

11

7129987

COVER

12

6690163

RING

13

7126213

DISC

14

SHAFT See Illustration MOTOR CARRIER/ NA2154

14

SHAFT See Illustration MOTOR CARRIER/ NA1007

15

47C820

BOLT

16

84G3716

SCREW 5

17

6553411

BUSHING

18

6680970

BREATHER

19

84G3720

BOLT

20

6706718

MOUNT

21

6706737

GASKET

22

17C412

BOLT 5

23

6681512

SOLENOID Was 7136559 - D

24

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

25

84G3732

BOLT

26

7201283

MOUNT, MANIFOLD DRAIN
