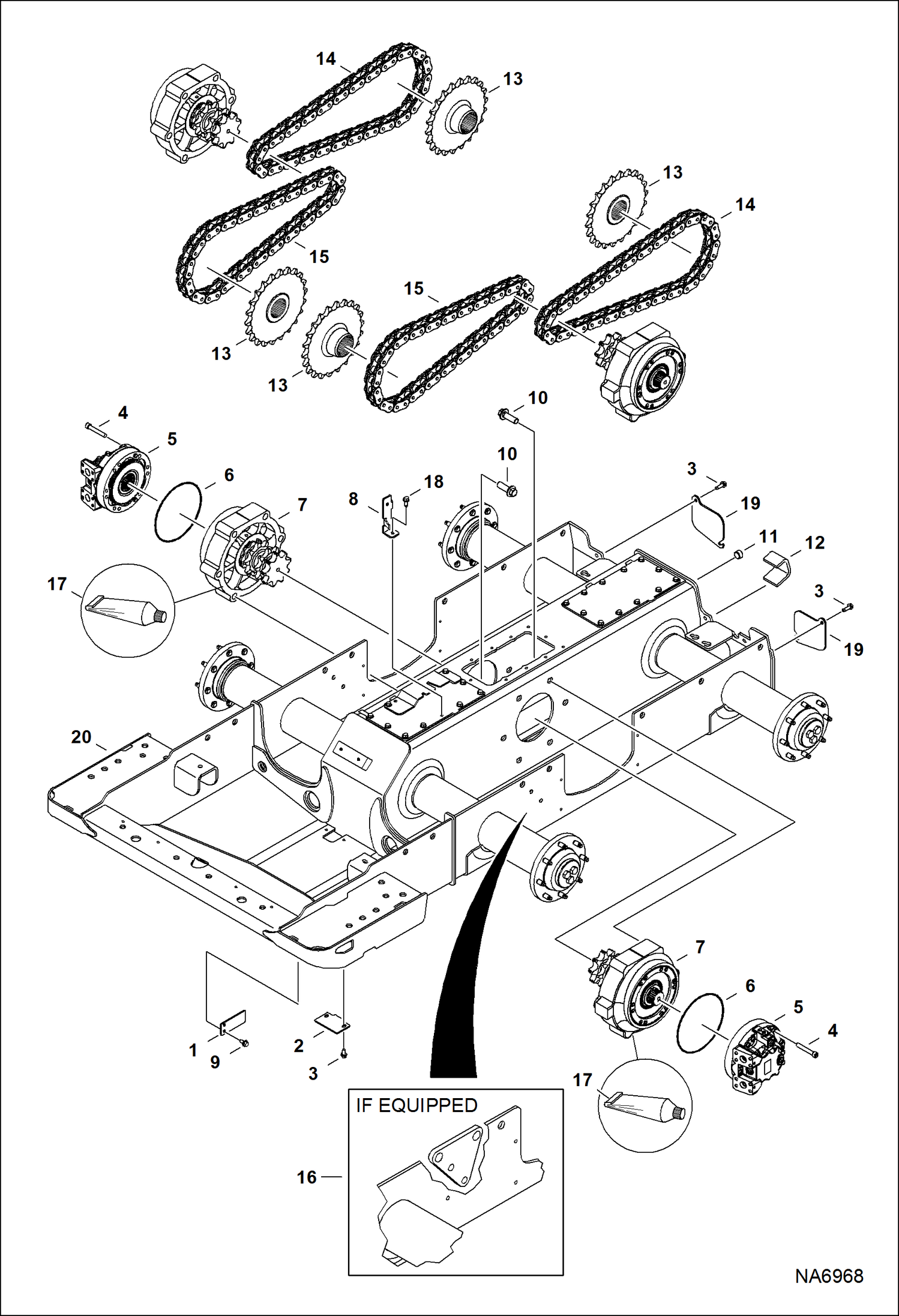

Запчасти Bobcat S-Series DRIVE TRAIN (S/N A3NT15649 & 15757 & Above, A3NU12400 & Above) DRIVE TRAIN

1

7223183

COVER, DRAIN

2

7190754

COVER, DRAIN

3

84G3712

BOLT 5

4

6717806

BOLT

5

MOTOR See Illustration HYDROSTATIC MOTOR/ MS2199 - single speed - manual controls & ACS

5

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS1467 - 2-speed

6

25K30816

O-RING

7

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA2154 - manual controls, AHC & ACS

7

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA1007 - SJC controls

8

7151466

BRACKET

9

35C612

BOLT

10

6678971

BOLT

11

6731121

PLUG chaincase fill

12

6706485

HOOK weld-on

13

SPROCKET See Illustration AXLE/ NA1004

14

7106862

CHAIN, DRIVE endless - 48 pitch

14

6690988

CHAIN, DRIVE service - 48 pitch

14

6691078

LINK connecting

15

7130811

CHAIN, DRIVE endless - 44 pitch

15

7181282

CHAIN, DRIVE service - 44 pitch

15

6691078

LINK connecting

16

CHAINCASE NLA - W/ .5'' hyd control valve chaincase weld-on spacer plate - Order Ref. 20 W/ 7220859 valve mount & (2) ea of 31C824 bolt & 53D8 nut - Was 7217295 - A

17

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

18

84G3732

BOLT

19

6737088

COVER, ACCESS

20

7217295

CHAINCASE W/O .5'' hyd control valve chaincase weld-on spacer plate
