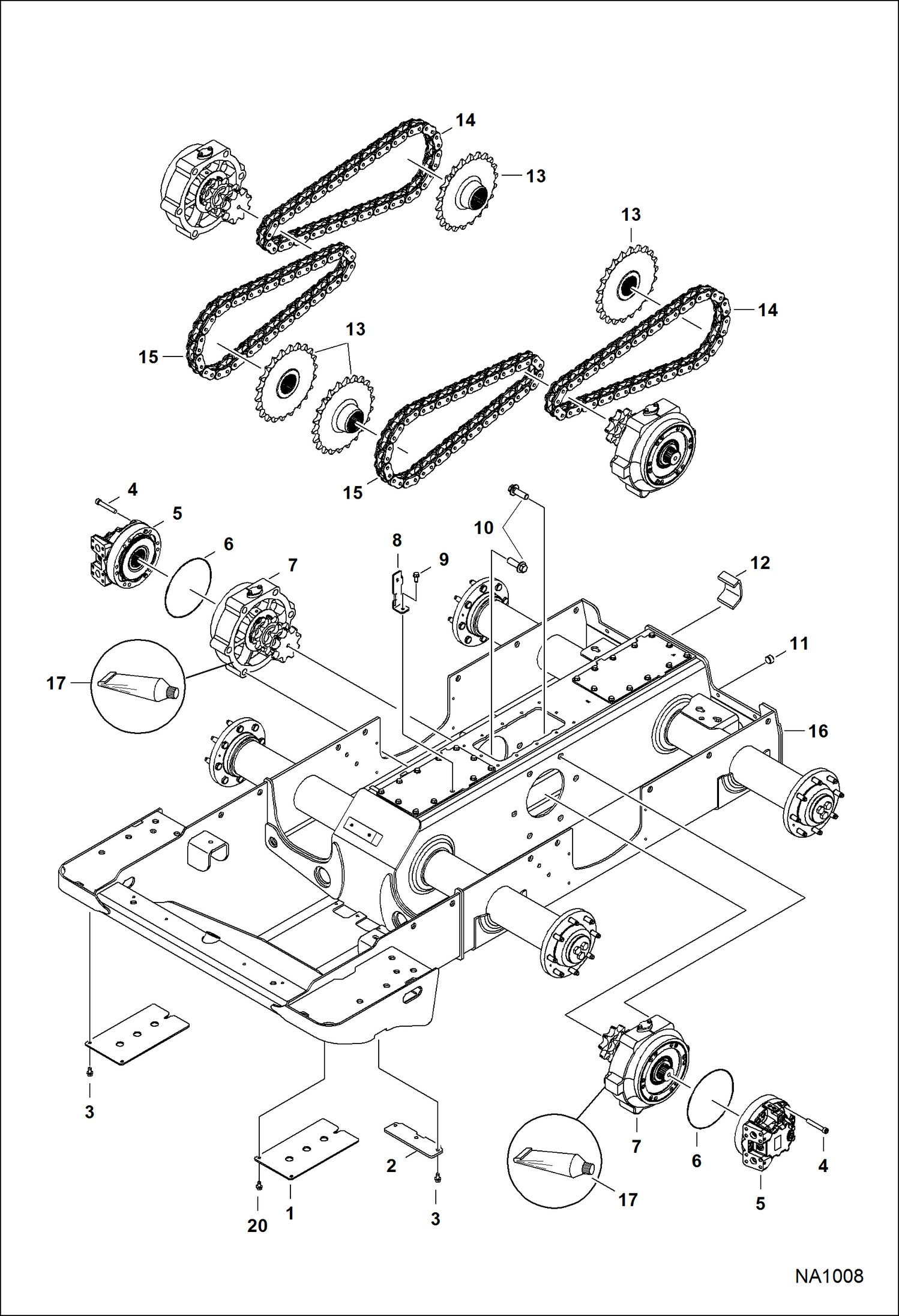

Запчасти Bobcat S-Series DRIVE TRAIN (S/N A3NT11001 - 15648 & 15650 - 15756, A3NU11001 - 12399) DRIVE TRAIN

1

7145347

COVER

2

7159094

COVER, DRAIN

3

84G3712

BOLT 5

4

6717806

BOLT

5

MOTOR See Illustration HYDROSTATIC MOTOR/ MS2199 - single speed - manual controls & ACS

5

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS1467 - 2-speed

6

25K30816

O-RING Was 25K30812 - B,D

7

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA2154 - manual controls, AHC & ACS

7

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA1007 - SJC controls

8

7151466

BRACKET

9

84G3716

SCREW 5

10

6678971

BOLT

11

6731121

PLUG chaincase fill

12

7134445

BRACKET, TIE-DOWN weld-on

13

SPROCKET See Illustration AXLE/ NA1004

14

7106862

CHAIN, DRIVE endless - 48 pitch

14

6690988

CHAIN, DRIVE service - 48 pitch

14

6691078

LINK connecting

15

7130811

CHAIN, DRIVE endless - 44 pitch

15

7181282

CHAIN, DRIVE service - 44 pitch

15

6691078

LINK connecting

16

7130785

CHAINCASE

17

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

18

84G3732

BOLT

19

6737088

COVER, ACCESS

20

35C612

BOLT
