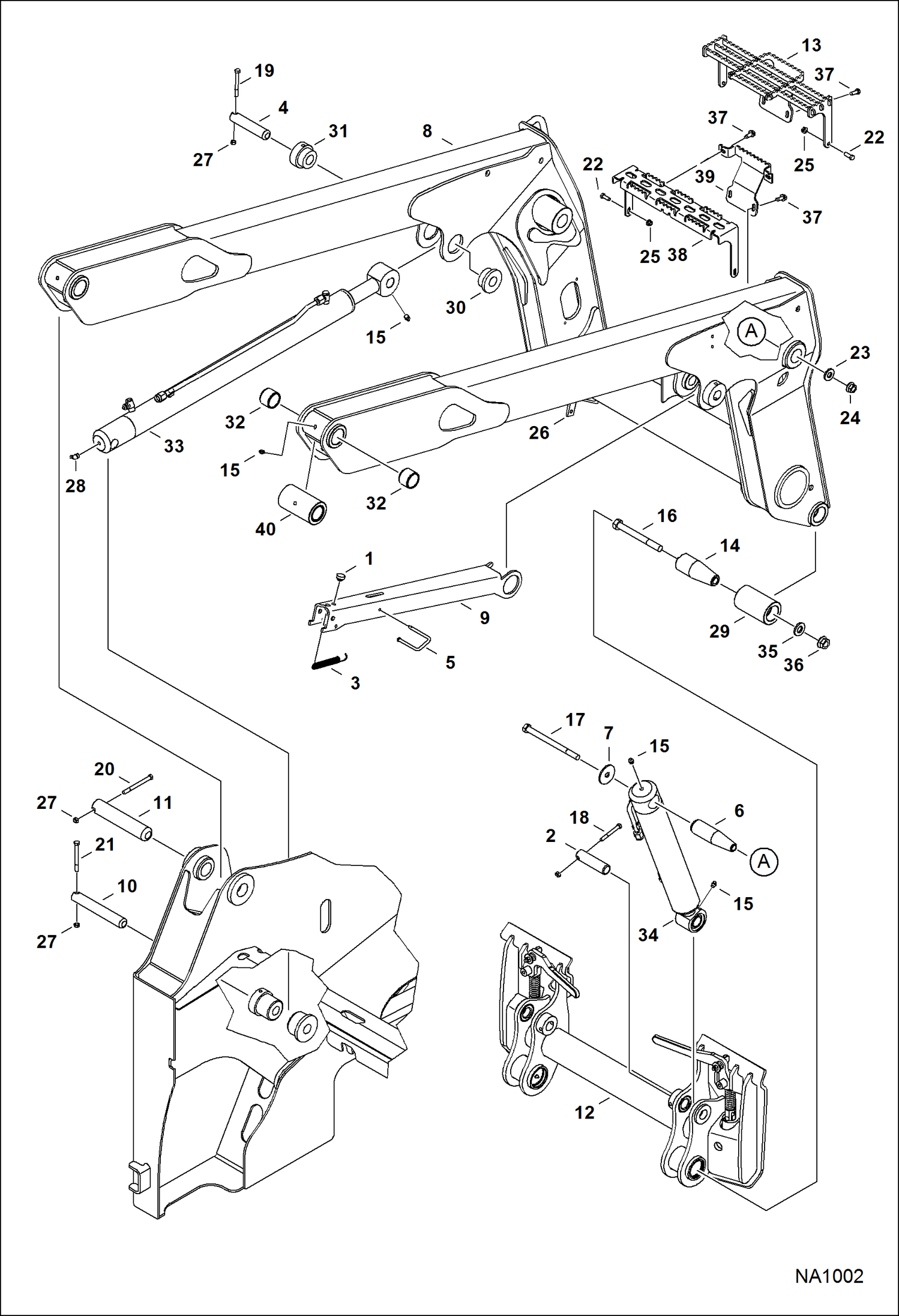

Запчасти Bobcat S-Series LIFT ARM & BOB-TACH MAIN FRAME

1

6519178

BUMPER

2

6577954

PIN, PIVOT rod end - tilt cylinder

3

6700743

SPRING

4

6702935

PIN, PIVOT rod end - lift cylinder

5

6714810

PIN retainer

6

6728971

PIN, PIVOT TAPERED tilt cylinder - base end

7

6731160

WASHER

8

7132914

LIFTARM

9

7136616

SUPPORT

10

7209779

PIN, PIVOT lift cylinder - base end - Was 7147803 - A

11

7147804

PIN boom to upright

12

BOB-TACH See Illustration BOB-TACH/ NA1003

13

STEP, LIFT ARM NLA - Order Ref. 38, 39 & (2) of Ref 37 - Was 7159749 - A

14

7170609

PIN, PIVOT TAPERED lift arm to bobtach

15

10H25

FITTING, GREASE 5

16

17C12112

BOLT Was 17C10112 - D

17

17C10136

BOLT

18

17C648

BOLT 5

19

17C656

BOLT

20

17C672

BOLT

21

17C664

BOLT

22

17C616

BOLT 5

23

27E10

WASHER

24

53D10

NUT

25

53D6

NUT

26

7135693

MOUNT weld-on

27

85D6

NUT, 5

28

11H15

GREASE FITTING

29

7170608

BUSHING, WELD-ON weld-on

30

7132935

BUSHING weld-on

31

7132937

BUSHING, WELD-ON weld-on

32

6730995

BUSHING, WEAR

33

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA1211

34

CYLINDER, TILT See Illustration TILT CYLINDER/ NA1210 - LH

34

CYLINDER, TILT See Illustration TILT CYLINDER/ NA1209 - RH

35

27E12

WASHER

36

53D12

NUT

37

84G3716

SCREW 5

38

7233244

STEP, LIFT ARM Was 7232056 - A

39

7233245

BRACKET Was 7232057 - A

40

7215771

BUSHING, WELD-ON W/Ref. 32
