Запчасти Bobcat S-Series REAR DOOR MAIN FRAME

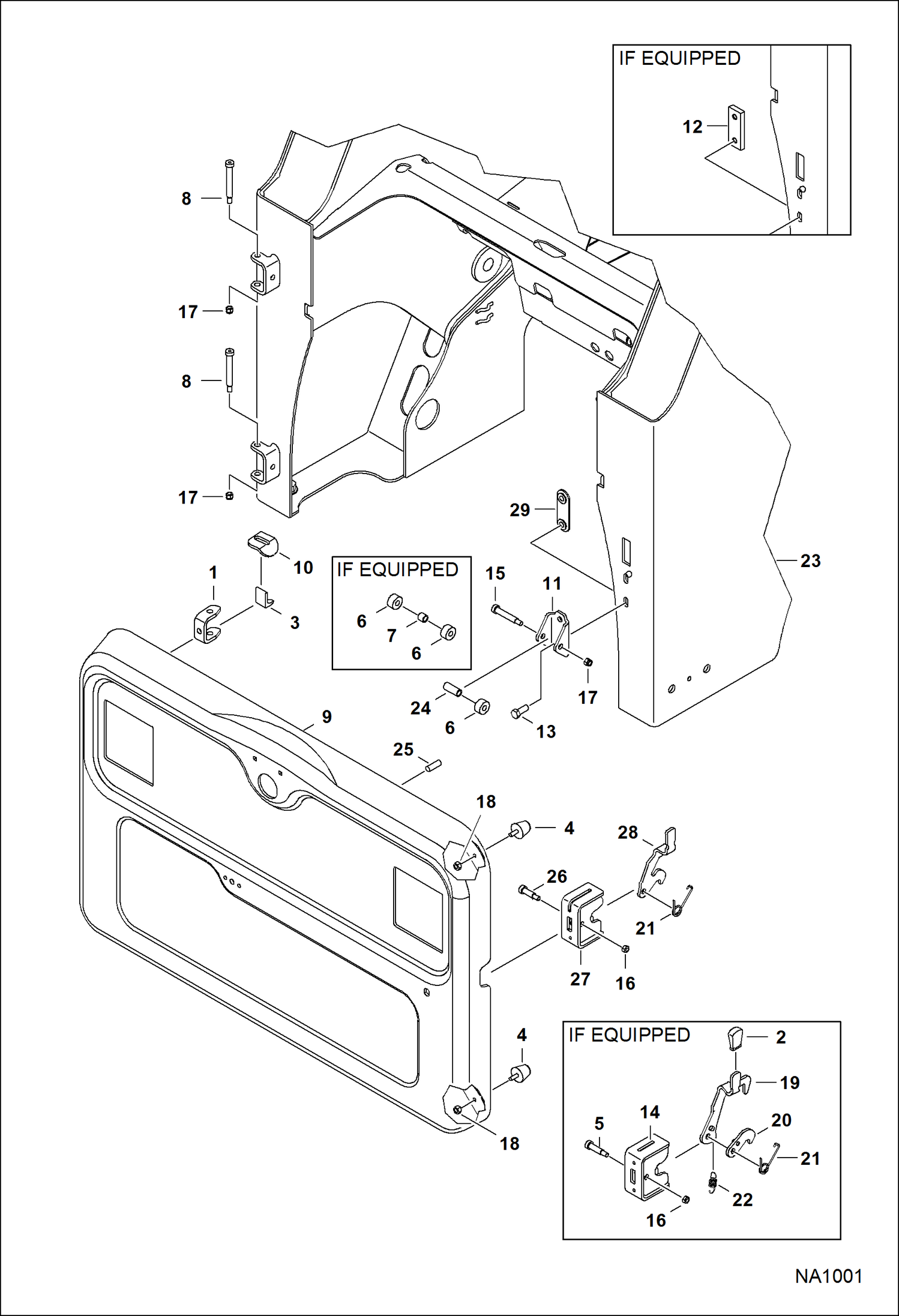

Схема запчастей Bobcat S-Series - REAR DOOR MAIN FRAME

Артикул

Название

Примечание

Количество

1

6733575

HINGE, REAR DOOR weld-on

2

6564452

GRIP

3

6719766

STOP

4

6733616

BUMPER

5

38C824

SCREW

6

6809726

ROLLER

7

6809734

BUSHING striker - .62'' (15,75 mm)

8

6809845

BOLT

9

7144158

REAR DOOR

10

7160704

STOP

11

7160705

CHANNEL

12

7160706

BAR threaded striker

13

17C820

BOLT

14

LATCH NLA - weld-on - Order Ref. 16, 21 & 26-28 - Was 7160698

15

38C840

BOLT carriage

16

85D6

NUT, 5

17

59D6

NUT

18

61D5

NUT

19

7160703

HANDLE

20

7160701

LATCH

21

6810132

SPRING

22

6810141

SPRING

23

MAIN FRAME See Illustration MAIN FRAME/ NA1000

24

7184677

BUSHING striker - 1.28'' (32,5 mm)

25

56G412

STUD weld-on

26

38C820

SCREW

27

7218276

PLATE, LATCH weld-on - Was 7213527 - D

28

7229410

LATCH Was 7217980 - D

Выбрано товаров: 28
