Запчасти Bobcat S-Series TIRES & RIMS (Pneumatic Tire) ACCESSORIES & OPTIONS

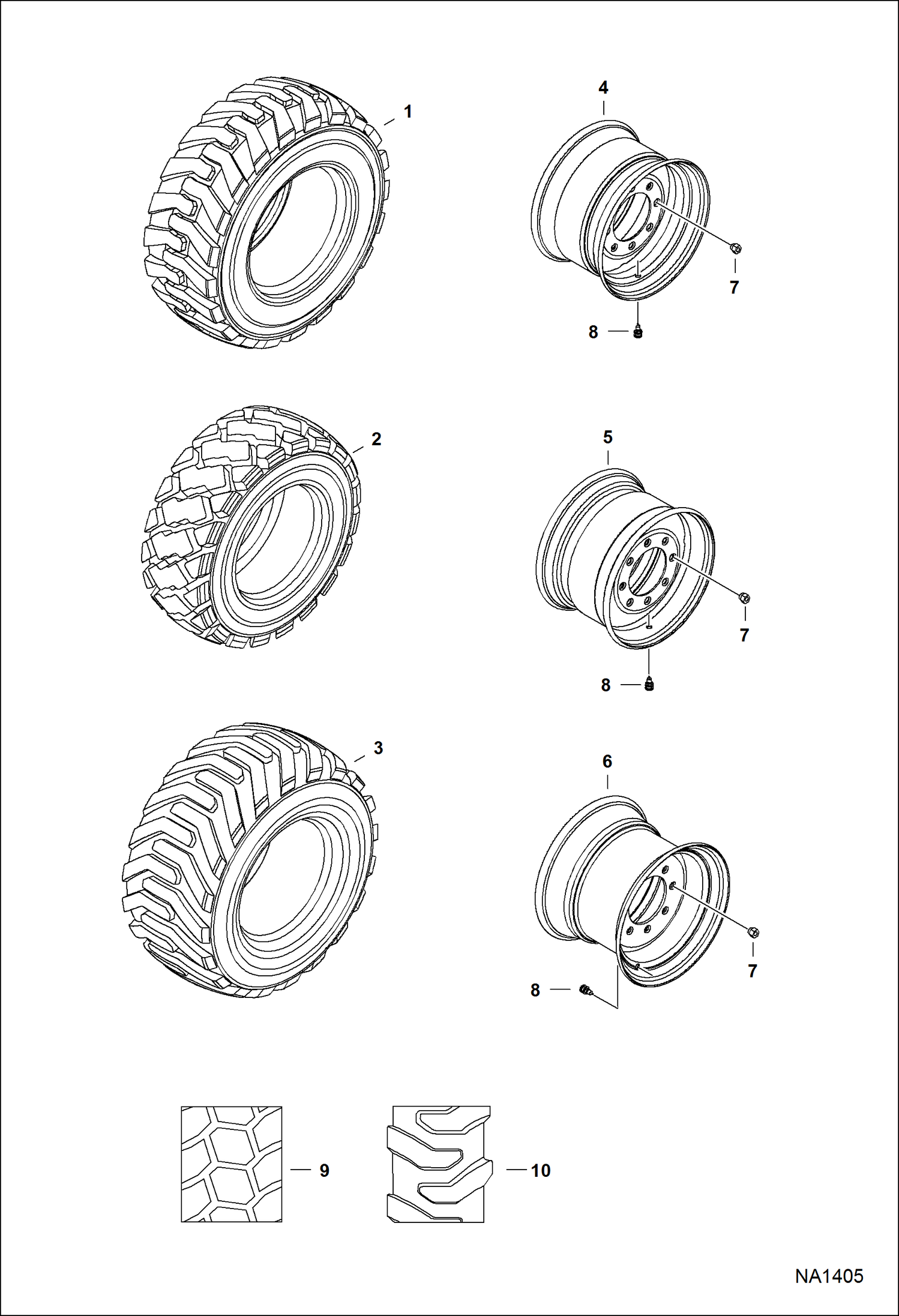

Схема запчастей Bobcat S-Series - TIRES & RIMS (Pneumatic Tire) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6729901

TIRE, HEAVY DUTY 33X12X16.5, 12 PLY factory option - Bobcat

1

6729901

TIRE, HEAVY DUTY 33X12X16.5, 12 PLY factory option - Bobcat - Was 7101736 - A

1

7024213

TIRE, HEAVY DUTY 12X16.5, 14 PLY EF

2

6730108

TIRE, SEVERE DUTY 33X12X16.5, 12 PLY factory option - Bobcat

3

6730109

TIRE, SUPER FLOAT 33X15.5X16.5, 12 PLY factory option - Hippo - Galaxy

4

7232567

WHEEL, RIM 16.5X9.75 See BTI197ldr - Use W/Ref. 1, 2, 9, & 10 - 72'' wide - Was 6730772 - A

5

7232565

WHEEL, RIM 16.5X9.75 See BTI197ldr - Use W/Ref. 1, 2, 9, & 10 - offset - 68'' wide - Was 6733578 - A

6

6732847

WHEEL, RIM 16.5X12X8 See BTI197ldr Use W/Ref. 3 - 74'' wide

7

6564669

NUT, 10 wheel

8

1614765

VALVE STEM, TIRE

9

6988144

TIRE, NON-DIRECTIONAL 12X16.5-14 PLY EF

10

6988501

TIRE, EARTHFORCE 12X16.5 - 10 PLY

10

7219732

TIRE, HEAVY DUTY 33X12X16.5, 10 PLY

Выбрано товаров: 13
