Запчасти Bobcat S-Series PANELS (Floor Pan) (Manual Controls, AHC & ACS) (S/N A3NT12370 & Above, A3NU11112 & Above) MAIN FRAME

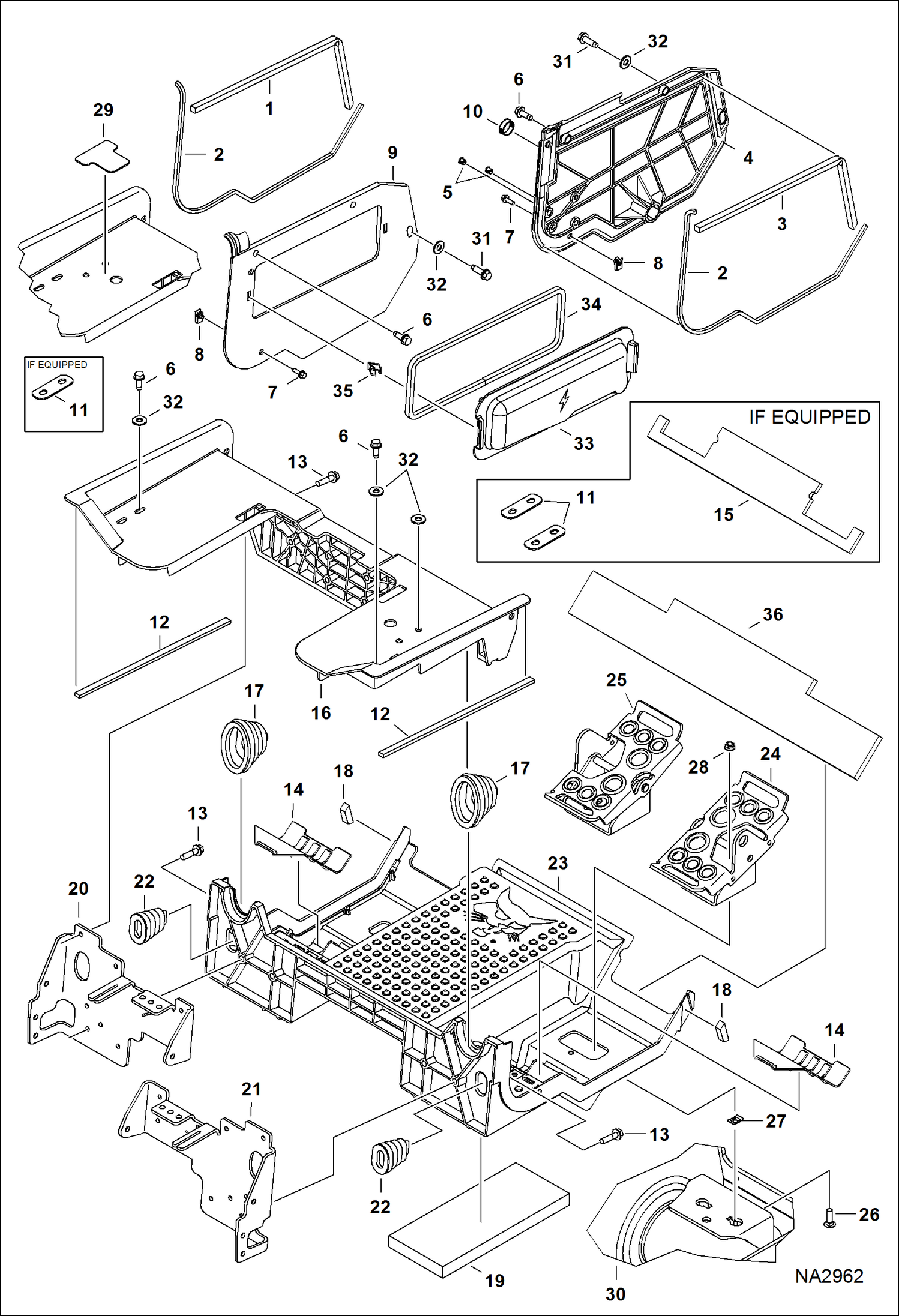

Схема запчастей Bobcat S-Series - PANELS (Floor Pan) (Manual Controls, AHC & ACS) (S/N A3NT12370 & Above, A3NU11112 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7166197

FOAM, PANEL LH

2

7166199

FOAM, EDGE

3

7166198

FOAM, PANEL RH

4

7180032

PANEL, RH

5

5289686

PLUG black - 0.38'' dia hole

6

84G3716

SCREW 5

7

35C412

BOLT

8

7160765

NUT

9

7196671

PANEL, LH

10

7166315

PLUG

11

PLATE, WASHER NLA - Order (2) of Ref. 32 - Was 7167118 - A

12

7166196

FOAM, PANEL

13

84G3724

BOLT

14

7164345

COVER, PAN FLOOR

15

7163132

FOAM, FRONT

16

7185169

PANEL, STEERING Was 7180037 - A

17

7147815

BOOT

18

7166200

FOAM, PAN FLOOR

19

7166195

PAD, PAN FLOOR

20

7176118

MOUNT

21

7176117

MOUNT

22

7153503

BOOT

23

7156916

PAN, FLOOR

24

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA1261 - RH

25

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA1261 - LH

26

37C620

BOLT

27

6684033

NUT

28

57D6

NUT 5

29

7185170

COVER Use W/Ref. 16 to cover three holes if present on the LH side

30

CHAINCASE See Illustration DRIVE TRAIN/ NA1008

31

84G3720

BOLT

32

25E18

WASHER

33

7197082

COVER W/Ref. 34 & 35

34

7205329

SEAL, COVER

35

7165333

CLIP

Выбрано товаров: 35
