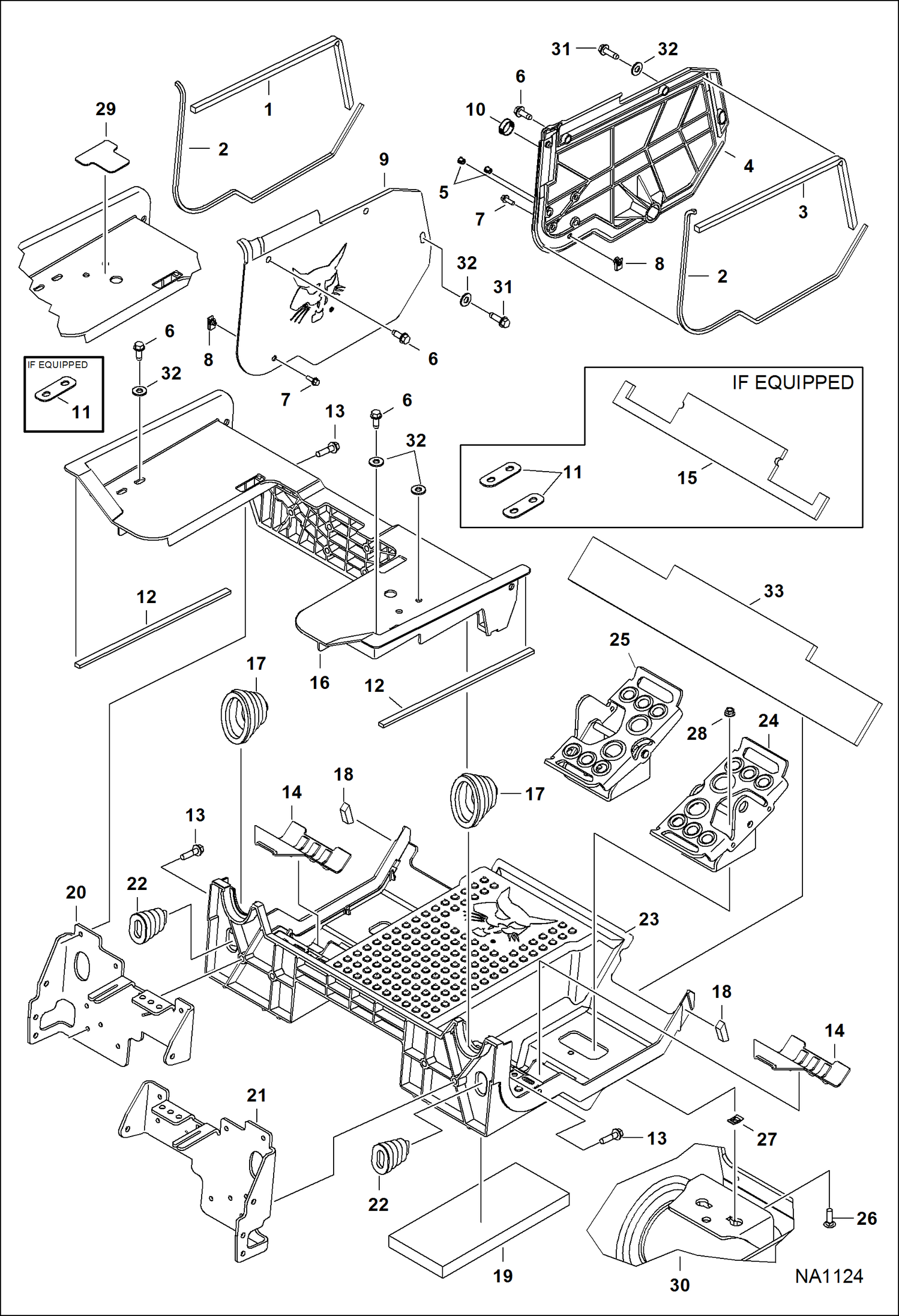

1
7166197
FOAM, PANEL LH
2
7166199
FOAM, EDGE
3
7166198
FOAM, PANEL RH
4
7180032
PANEL, RH Was 7156919 - A
5
5289686
PLUG black - 0.38'' dia hole
6
84G3716
SCREW 5
7
35C412
BOLT
8
7160765
NUT
9
7180031
PANEL, LH Was 7156920 - A
10
7166315
PLUG
11
PLATE, WASHER NLA - Order (2) of Ref. 32 - Was 7167118 - A
12
7166196
FOAM, PANEL
13
84G3724
BOLT
14
7164345
COVER, PAN FLOOR
15
7163132
FOAM, FRONT
16
7185169
PANEL, STEERING Was 7180037 - A
17
7147815
BOOT
18
7166200
FOAM, PAN FLOOR
19
7166195
PAD, PAN FLOOR
20
7176118
MOUNT
21
7176117
MOUNT
22
7153503
BOOT
23
7156916
PAN, FLOOR
24
PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA1261 RH
25
PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA1261 LH
26
37C620
BOLT
27
6684033
NUT
28
57D6
NUT 5
29
7185170
COVER Use W/Ref. 16 to cover three holes if present on the LH side
30
CHAINCASE See Illustration DRIVE TRAIN/ NA1008
31
84G3720
BOLT
32
25E18
WASHER
