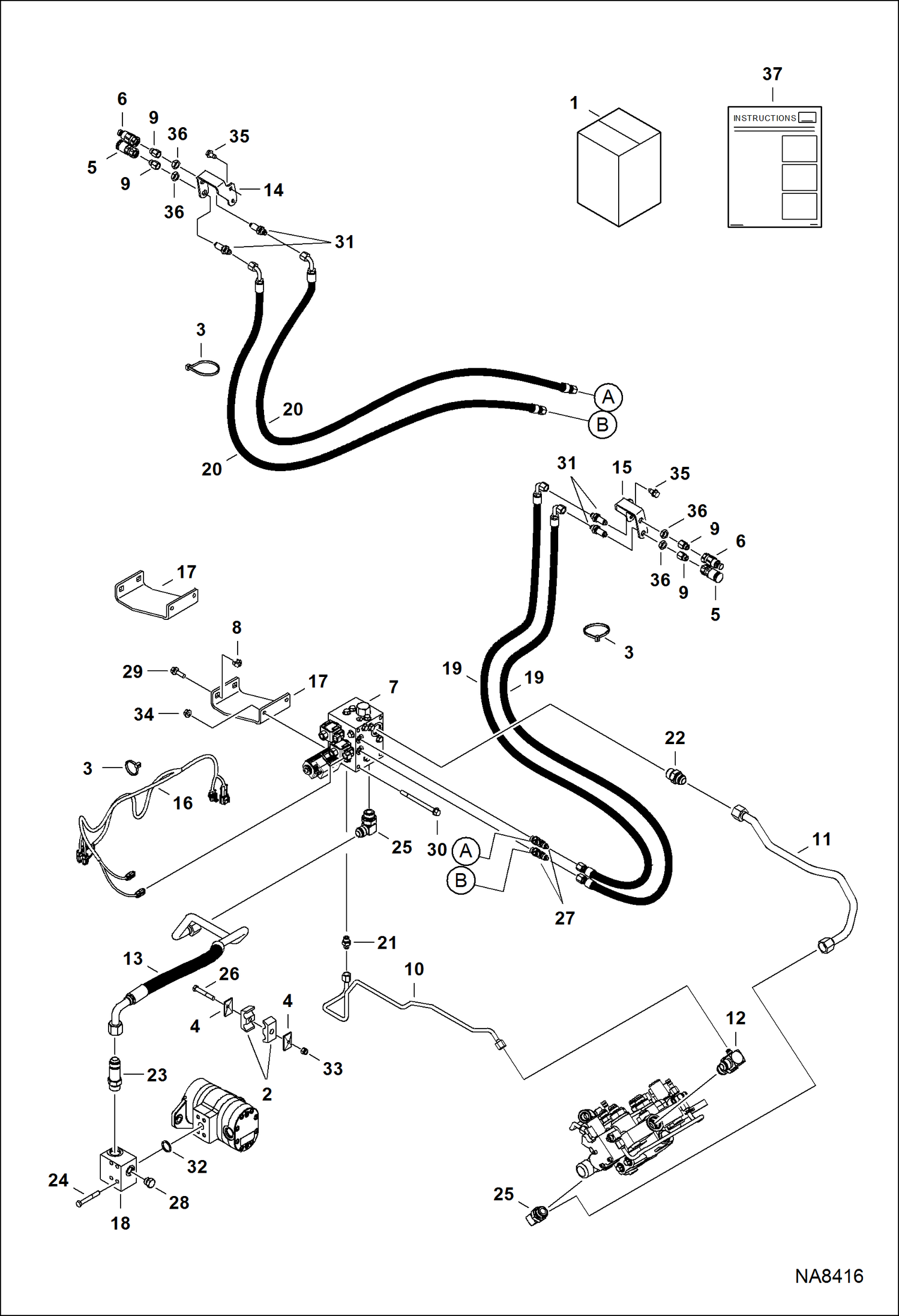

Запчасти Bobcat S-Series REAR AUXILLARY KIT (S/N A3NT & Above, A3NU & Above) ACCESSORIES & OPTIONS

1

7231414

KIT, AUX REAR Ref. 2-37

2

6592506

CLAMP

3

6624289

STRAP, TIE

4

6652521

PLATE

5

6667803

COUPLER, FF FEMALE

6

6667804

COUPLER, FF MALE

7

6685624

VALVE, AUX REAR

8

6685663

NUT, RETAINING

9

6706633

ADAPTER

10

7175643

TUBELINE, HYD

11

7176078

TUBELINE, HYD

12

7178841

TEE

13

7189310

HOSE, HYD

14

7189579

MOUNT

15

7189580

MOUNT

16

7201414

HARNESS, AUX REAR

17

7203568

MOUNT, VALVE Use W/916,4 mm (36.1'') transmission weld assy

17

7228561

MOUNT, VALVE Use W/941,8 mm (37.1'') transmission weld assy

18

7226207

MANIFOLD, OUTLET PUMP

19

7231410

HOSE, HYD

20

7231412

HOSE, HYD

21

15KB0606

FITTING, HYD CONNECTOR

22

15KB1212

FITTING, HYD CONNECTOR

23

16KB1212

FITTING, HYD CONNECTOR

24

17C644

BOLT

25

17KB1212

FITTING, HYD ELBOW

26

17C640

BOLT 5

27

21KB0606

FTG HYD STRAIGHT TEE

28

24K6

FITTING

29

31C620

BOLT

30

31C680

BOLT

31

45K5

FITTING

32

55K214

O-RING

33

59D6

NUT

34

83D6

NUT 5

35

84G3712

BOLT 5

36

86F5

NUT

37

6990829

INSTRUCTIONS
