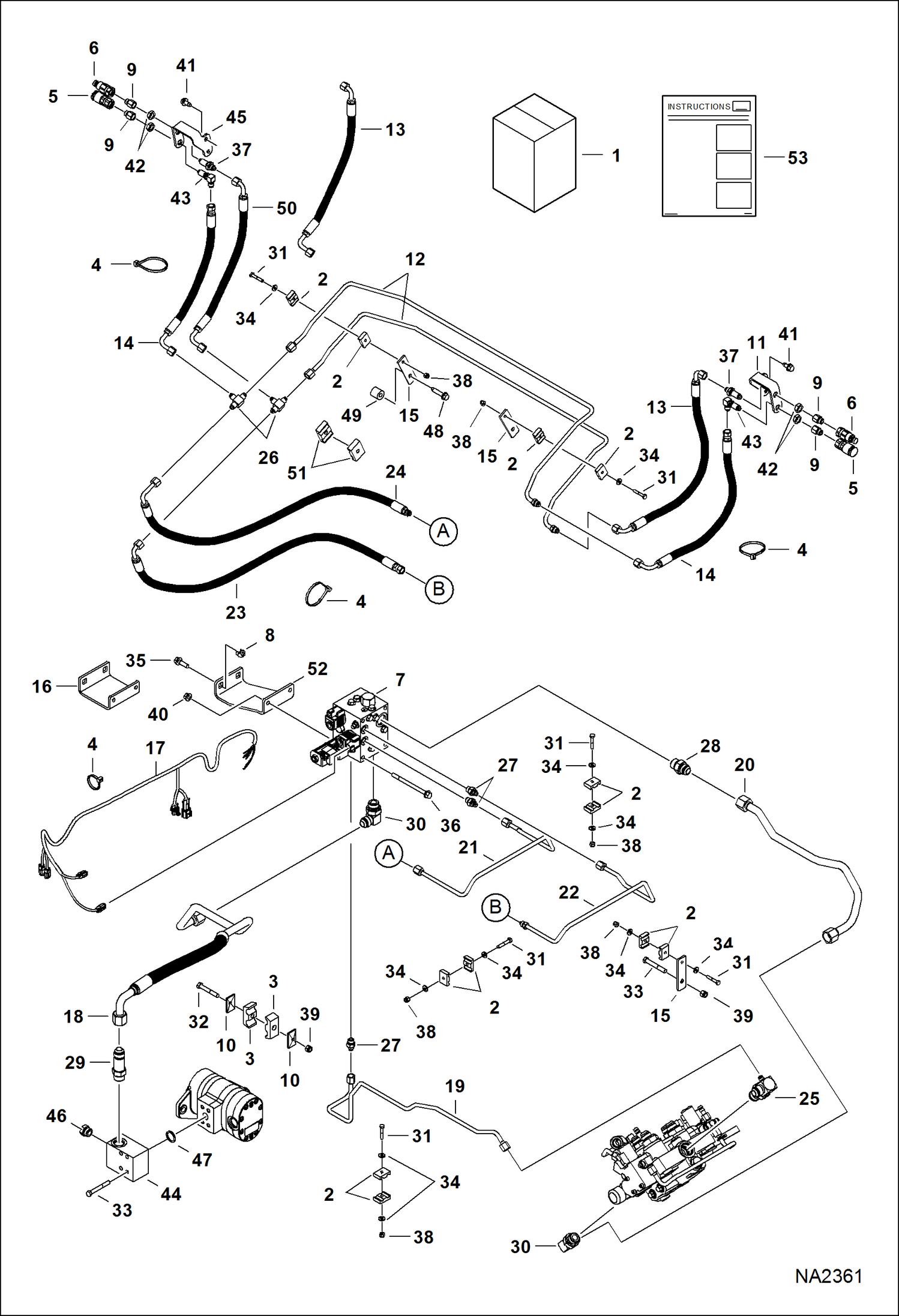

Запчасти Bobcat S-Series REAR AUXILIARY (Kit) (S/N A3NT11001 - , A3NU11001 - ) ACCESSORIES & OPTIONS

1

7174713

KIT, AUX REAR Ref. 2-15, 17-50, 52 & 53

2

6578870

CLAMP

3

6592506

CLAMP

4

6624289

STRAP, TIE

5

6667803

COUPLER, FF FEMALE

6

6667804

COUPLER, FF MALE

7

6685624

VALVE, AUX REAR See Illustration REAR AUXILIARY VALVE/ MS2255

8

6685663

NUT, RETAINING

9

6706633

ADAPTER

9

79K6

O RING 10

10

6652521

PLATE Was 872229 - B

11

7189579

MOUNT RH - Was 7169641 - A

12

7169741

TUBELINE, HYD

13

HOSE, HYD NLA - 627,1 mm (24.69'') long - Was 7170069 - B

13

7170069

HOSE, HYD 565,2 mm (22.25'') long - ends of the hose run parallel to each other, in other words, on the same axis

14

7170070

HOSE, HYD

15

7170354

ADAPTER

16

MOUNT, VALVE NLA - Order Ref. 52 - Was 7170537 - A

17

7201414

HARNESS, AUX REAR Was 7191339 - A

18

7189310

HOSE, HYD Was 7175642 - A

19

7175643

TUBELINE, HYD

20

7176078

TUBELINE, HYD

21

7177102

TUBELINE, HYD

22

7177103

TUBELINE, HYD

23

7177104

HOSE, HYD

24

7177105

HOSE, HYD

25

7178841

TEE

25

79K16

O RING 10

26

10K5

TEE

27

15KB0606

FITTING, HYD CONNECTOR

27

79K6

O RING 10

28

15KB1212

FITTING, HYD CONNECTOR

28

79K12

O RING 10

29

16KB1212

FITTING, HYD CONNECTOR

29

79K12

O RING 10

30

17KB1212

FITTING, HYD ELBOW

30

79K12

O RING 10

31

17C424

BOLT

32

17C640

BOLT 5

33

17C644

BOLT

34

25E13

WASHER 5

35

35C620

BOLT 5

36

31C680

BOLT Was 17C680 - B

37

45K5

FITTING

38

59D4

NUT 5

39

59D6

NUT

40

83D6

NUT 5

41

84G3712

BOLT 5

42

86F5

NUT

43

88F5

ELBOW

44

7226207

MANIFOLD, OUTLET PUMP Was 7029565 - A

45

7189580

MOUNT LH

46

24K6

FITTING Was 47K7 - B

46

79K10

O RING 10

47

55K214

O-RING

48

84G3728

BOLT

49

7198236

SPACER, TUBE

50

7198237

HOSE, HYD 565,2 mm (22.25'') long - the end of the hose that connects to Ref. 26 is 25 degrees off parallel to the other hose end, in other words, 25 degrees off axis

51

6701892

CLAMP not in kit

52

7203568

MOUNT, VALVE

53

6987299

INSTRUCTIONS
