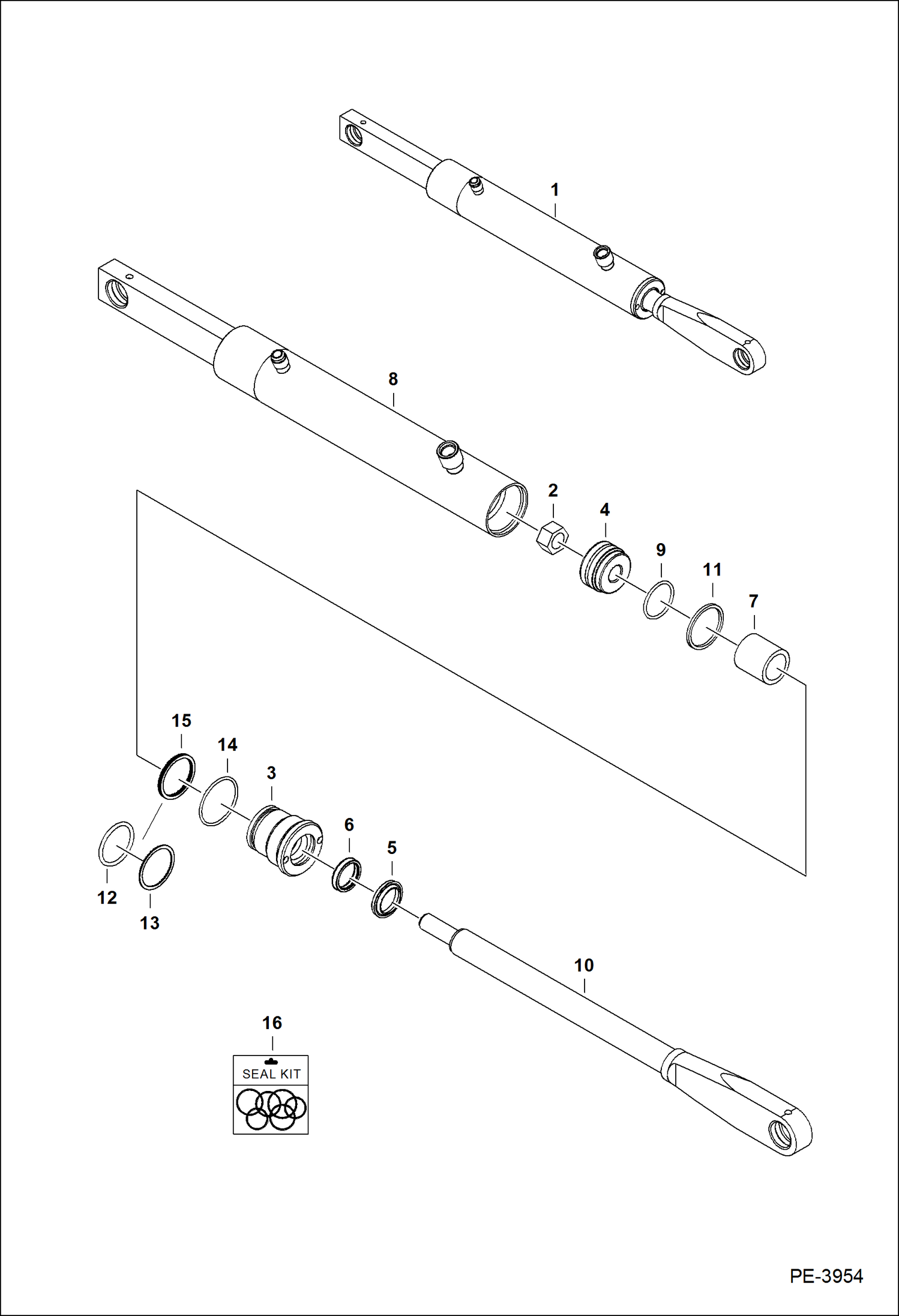

Запчасти Bobcat S-Series POWER BOB-TACH (Cylinder) (S/N A3NT11001 - 11874, A3NU11001 - 11022) ACCESSORIES & OPTIONS

1

CYLINDER, POWER BOB-TACH See Illustration POWER BOB-TACH/ NA2603 NLA - Ref. 2-14 - Order 7183318 cylinder - Was 7167180 - A

2

92D10

NUT

3

6586542

HEAD

4

6586543

PISTON

5

6666542

SEAL, WIPER ROD

6

6667323

SEAL

7

6810356

SPACER

8

CASE See Illustration POWER BOB-TACH/ NA2603 NLA - Order 7183318 cylinder - A

9

82K132

O-RING HYDRAULIC

10

SHAFT, ROD CYLINDER, POWER BOB-TACH See Illustration POWER BOB-TACH/ NA2603 NLA - 18.6'' (472,4 mm) to bushing center - Order 7183318 cylinder - A

11

58K222

O-RING Was 54K40116 - B

12

25K30110

O RING 10 Was 54K30110 - A

13

6532453

RING

14

73K222

RING

15

7008782

SEAL, QUAD

16

7138014

SEAL KIT Ref. 7-9, & 12-15
